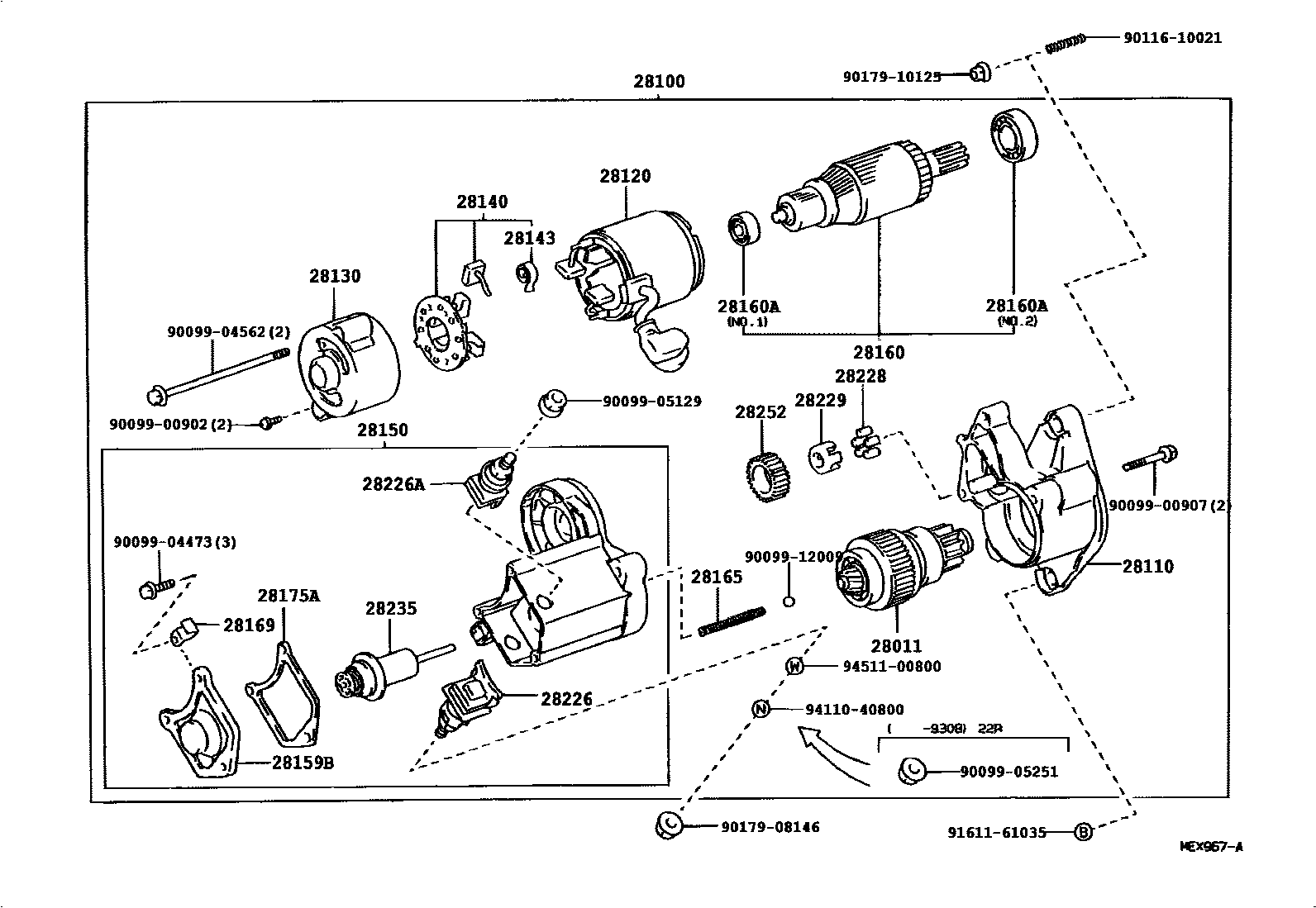

STARTER
28011CLUTCH SUB-ASSY, STARTER
COLD SPEC,NIPPONDENSO USA
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO
28100STARTER ASSY
12V 1.4KW,COLD SPEC,USA DENSO
12V 1.4KW,COLD SPEC,NIPPONDENSO USA
12V 1.0KW
12V 1.4KW,COLD SPEC,NIPPONDENSO
12V 1.4KW,COLD SPEC,NIPPONDENSO
28110HOUSING ASSY, STARTER DRIVE
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO USA
COLD SPEC,NIPPONDENSO
28120YOKE ASSY, STARTER
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO USA
COLD SPEC,NIPPONDENSO
28130FRAME ASSY, STARTER COMMUTATOR END
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO USA
COLD SPEC,NIPPONDENSO
28140HOLDER ASSY, STARTER BRUSH
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO USA
COLD SPEC,NIPPONDENSO
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO USA
sub28150-34080
COLD SPEC,NIPPONDENSO
COLD SPEC,NIPPONDENSO
28159BCOVER, MAGNET SWITCH
COLD SPEC(USA)
28160ARMATURE ASSY, STARTER
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO USA
COLD SPEC,NIPPONDENSO
28160ABEARING, STARTER ARMATURE
NO.1
NO.2
NO.2
NO.1
COLD SPEC,NO.1
COLD SPEC,NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
COLD SPEC,NIPPONDENSO USA
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO
28169CLAMP, STARTER MOTOR LEAD WIRE
COLD SPEC(USA)
28175AGASKET, MAGNET SWITCH COVER
COLD SPEC(USA)
28226STARTER KIT, BATTERY TERMINAL
COLD SPEC(USA)
28226ASTARTER KIT, MOTOR TERMINAL
COLD SPEC(USA)
28228ROLLER, STARTER IDLE GEAR CLUTCH
COLD SPEC,NIPPONDENSO USA
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO
28229RETAINER, STARTER IDLE GEAR
COLD SPEC,USA DENSO
COLD SPEC,NIPPONDENSO USA
COLD SPEC,NIPPONDENSO
28235PLUNGER, MAGNET SWITCH
COLD SPEC(USA)
28252GEAR, STARTER IDLE
COLD SPEC
9009900902
main90099-00902
9009900907
main90099-00907
9009904473
main90099-04473
9009904562
main90099-04562
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9011610021
main90116-10021
9017908146
main90179-08146
9017910125
main90179-10125
9161161035
main91611-61035
9411040800
main94110-40800
9451100800
main94511-00800
33 parts on this diagram · 2 diagrams in section
