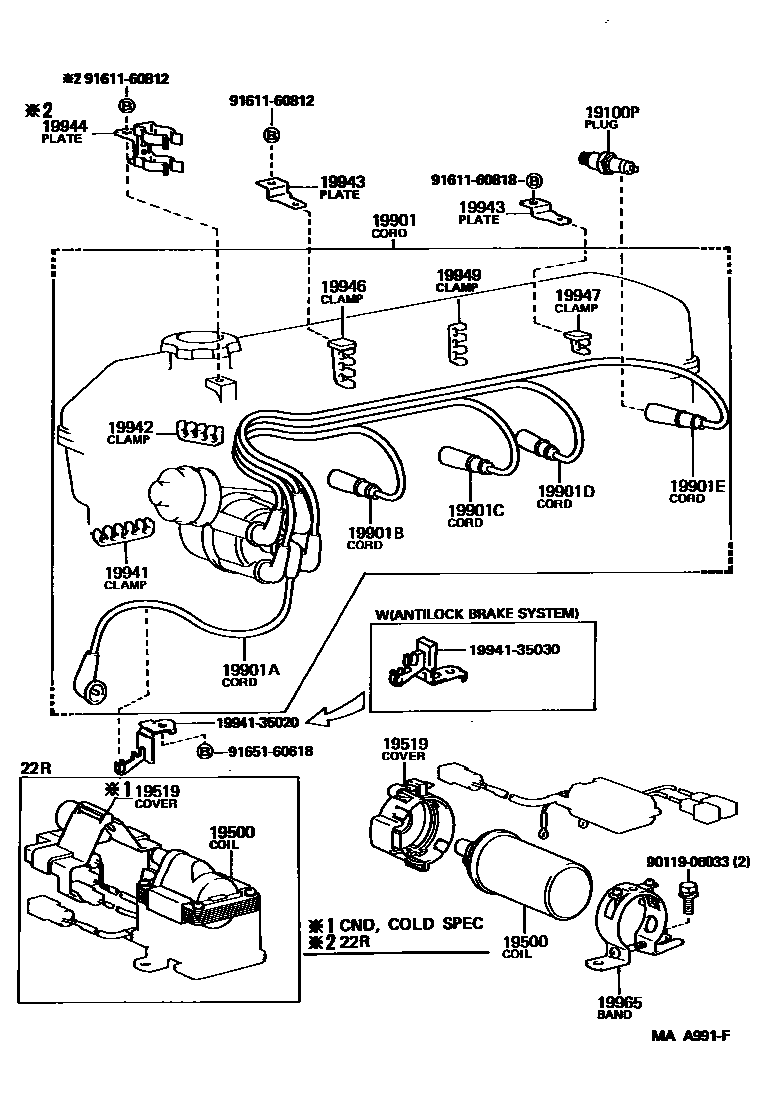

IGNITION COIL & SPARK PLUG / GLOW PLUG
19100PPLUG, SPARK
W16EXR-U
19519COVER, IGNITION COIL
COLD SPEC
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19941CLAMP, RESISTIVE CORD, NO.1
19942CLAMP, RESISTIVE CORD, NO.2
19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19946CLAMP, RESISTIVE CORD, NO.3
19947CLAMP, RESISTIVE CORD, NO.4
19949CLAMP, RESISTIVE CORD, NO.5
19965BAND, IGNITION COIL, NO.1
1994135020CLAMP, RESISTIVE CORD, NO.1
main19941-35020
1994135030CLAMP, RESISTIVE CORD, NO.1
main19941-35030
9011906033
main90119-06033
9161160812
main91611-60812
9161160818
main91611-60818
9165160618
main91651-60618
23 parts on this diagram · 2 diagrams in section
