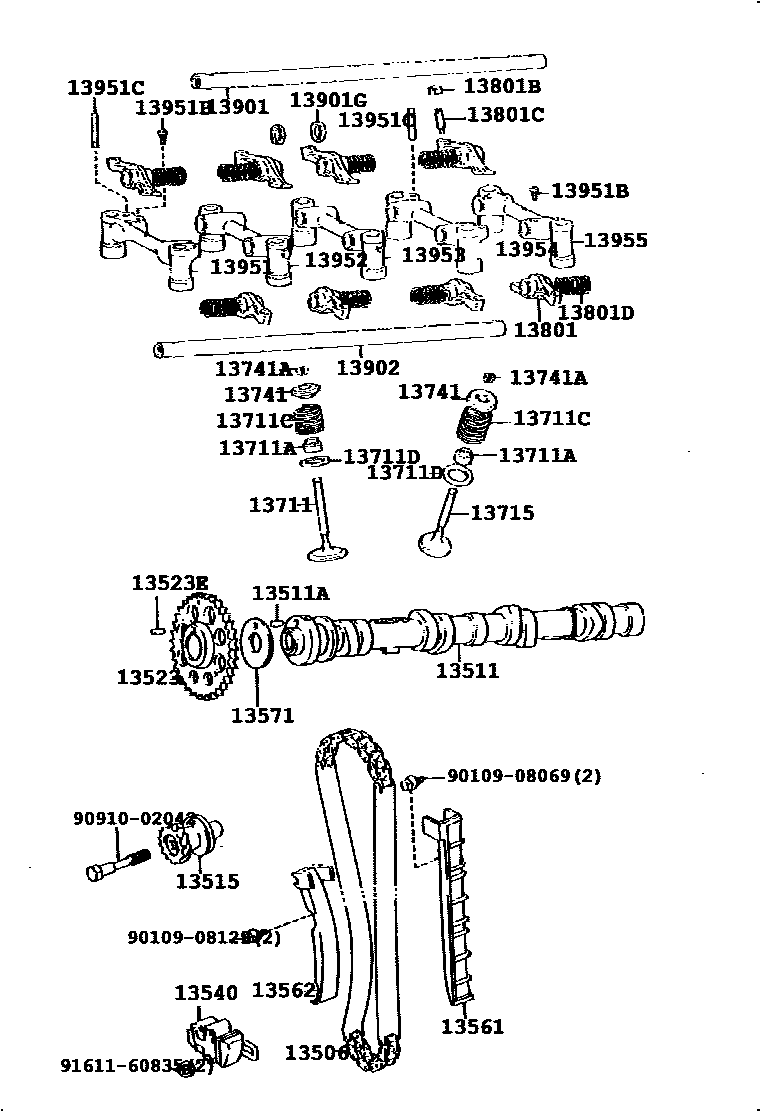

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=14,OD=6
13515GEAR, DISTRIBUTOR DRIVE
sub13515-37900
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523EPIN, STRAIGHT(FOR TIMING GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13571PLATE, CAMSHAFT THRUST
13711VALVE, INTAKE
sub13711-35051
13711CSPRING, COMPRESSION(FOR OUTER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901GWASHER, ROCKER SHAFT
13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13951SUPPORT, VALVE ROCKER, NO.1
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
sub93210-56008
13951CBOLT, STUD(FOR ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
13953SUPPORT, VALVE ROCKER, NO.3
13954SUPPORT, VALVE ROCKER, NO.4
13955SUPPORT, VALVE ROCKER, NO.5
9010908069
main90109-08069
9010908129
main90109-08129
9091002042
main90910-02042
9161160835
main91611-60835
35 parts on this diagram · 1 diagram in section
