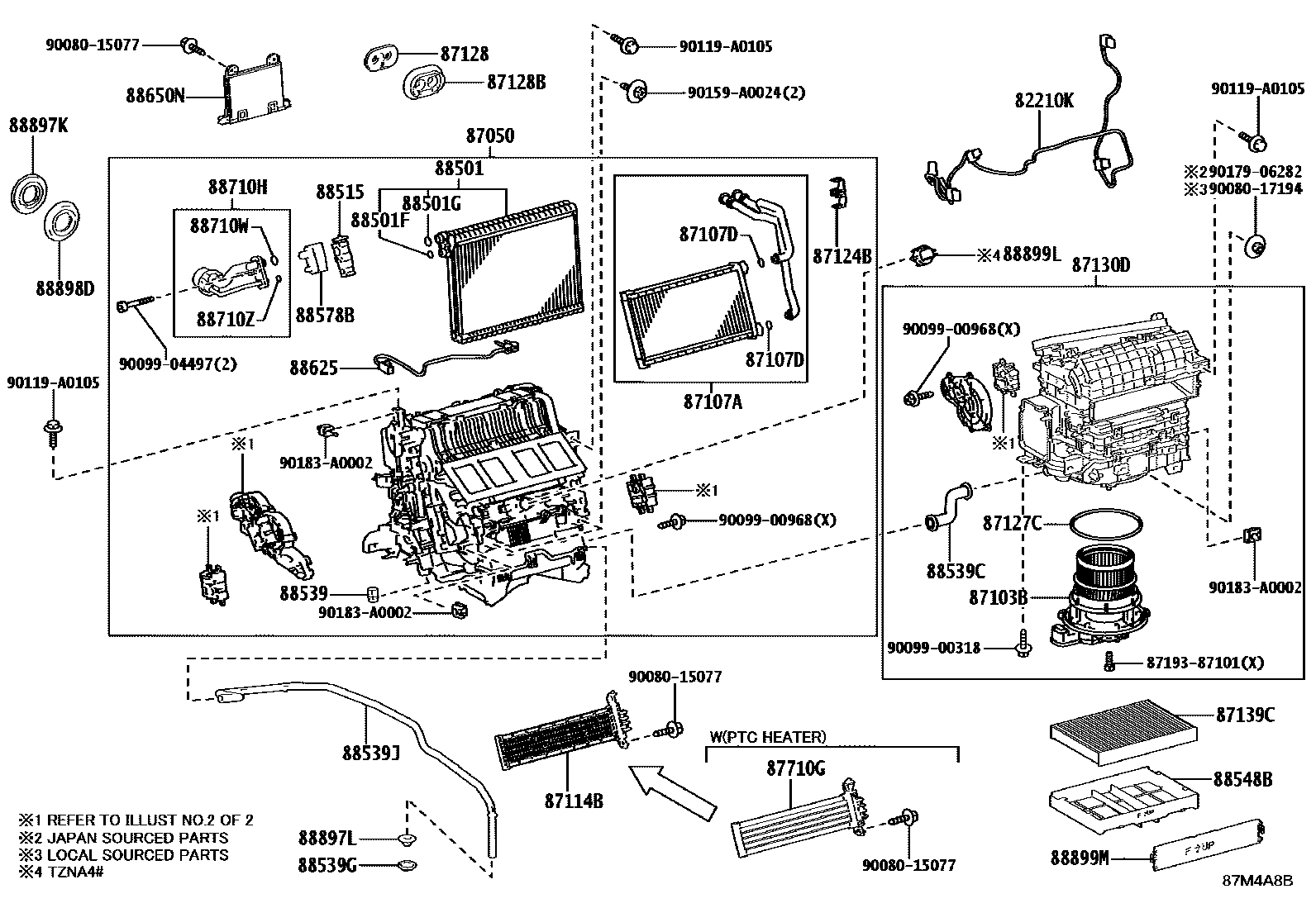

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE
TRD SPORT PACKAGE&TRD PREMIUM PACKAGE
87050RADIATOR ASSY, AIR CONDITIONER
TRD SPORT PACKAGE&TRD PREMIUM PACKAGE
TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE
87107AUNIT SUB-ASSY, HEATER RADIATOR
87107DRING, O (FOR HEATER RADIATOR UNIT)
ID=15.8,OD=19.6
87114BCOVER, HEATER
87124BCLAMP, HEATER
87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1
87128GROMMET, HEATER
87128BGROMMET, HEATER, NO.2
87139CFILTER, CLEAN AIR
POLLEN FILTER
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
LIMITED PACKAGE&SEAT HEATER-WITH
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88539HOSE, COOLER UNIT DRAIN, NO.1
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88578BPACKING, COOLING UNIT, NO.1
88625THERMISTOR, COOLER, NO.1
88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER
88710WRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
88710ZRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88897KGROMMET, (FOR COOLER PIPE)
88897LGROMMET (FOR DRAIN HOSE)
88898DGROMMET
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
8719387101
main87193-87101
9008015077
main90080-15077
9008017194
main90080-17194
9009900318
main90099-00318
9009900968
main90099-00968
9009904497
main90099-04497
90119A0105
main90119-A0105
90159A0024
main90159-A0024
9017906282
main90179-06282
90183A0002
main90183-A0002
43 parts on this diagram · 2 diagrams in section
