RADIO RECEIVER & AMPLIFIER & CONDENSER

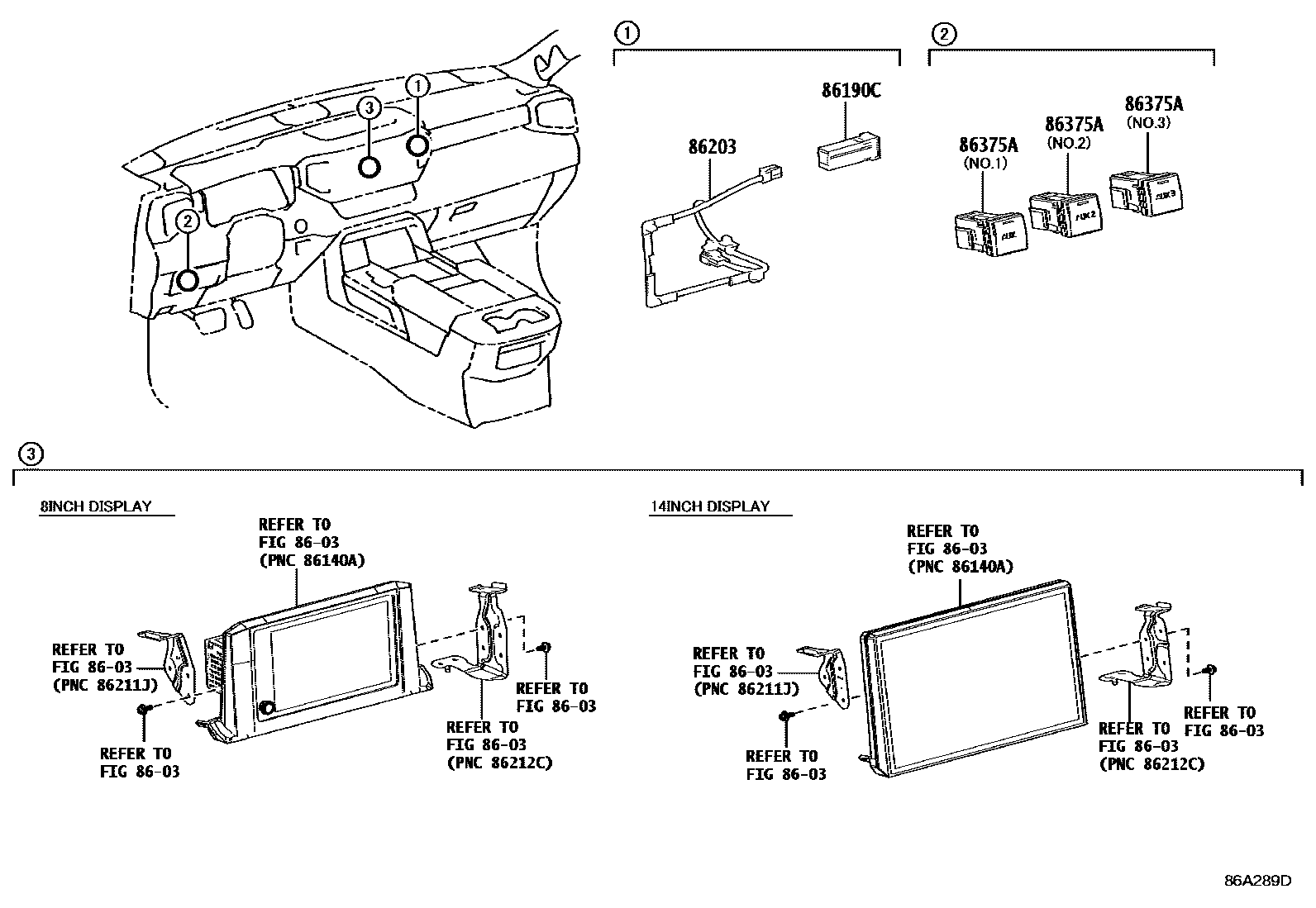

Parts diagram
8603
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-04020i202312
86203WIRE, RADIO
main86203-AK010i202312
main86203-AK030i202404
86375ASWITCH, STEREO COMPONENT
main84485-AK010i202411-202412
NO.1
main84485-AK020i202411-202412
NO.2
main84485-AK030i202411-202412
NO.3

4 parts on this diagram · 2 diagrams in section
