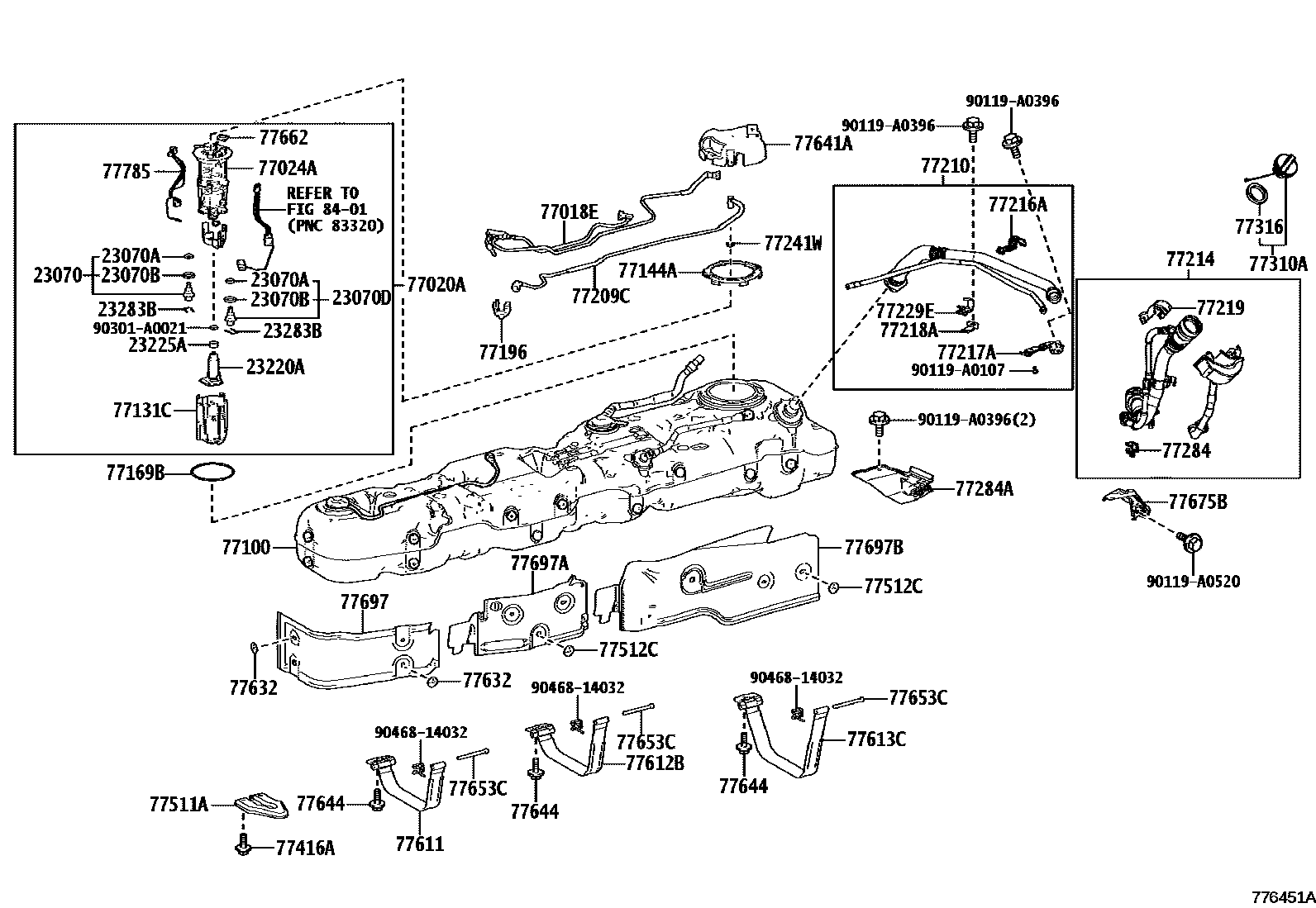

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK W(FUEL TANK PROTECT0003 1FUEL TANK 0004 1FUEL TANK W(FUEL TANK PROTECT0005 1FUEL TUBE 0006 1FUEL TUBE(REAR DECK-6FT) 0007 1FUEL TUBE 0008 1FUEL TUBE(REAR DECK-6FT) 0009 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-31030iT24..TZNA4#,TZNH47202312

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-04013iT24..TZNA4#,TZNH47202312

23070BRING, O, NO.2(FOR FUEL MAIN VALVE)

main90301-15024iT24..TZNA4#,TZNH47202312

23070DVALVE ASSY, FUEL MAIN, NO.2

main23070-36010iT24..TZNA4#,TZNH47202312

23220APUMP ASSY, FUEL W/FILTER

main23220-0P240iT24..TZNA4#,TZNH47202312

23225ASPACER, FUEL PUMP

main23225-0P010iT24..TZNA4#,TZNH47202312

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-0P010iT24..TZNA4#,TZNH47202312

(L)

main23283-36010iT24..TZNA4#,TZNH47202312

(J)

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-04040iTZNA4#,TZNH47202312

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-04080iTZNA4#202312

main77020-04110iTZNH47202404

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-04040iTZNA4#202312

main77024-04050iTZNH47202404

77100TANK ASSY, FUEL

main77001-04240iTZNA4#,TZNH47202312

77131CSUB-TANK, FUEL, NO.1

main77131-04070iTZNA4#,TZNH47202312

77144ARETAINER, FUEL PUMP GAUGE

main77144-06040iTZNA4#,TZNH47202312

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47040iTZNA4#202312

(J)

main77169-47040iTZNH47202404

main77169-F4050iTZNA4#202312

(L)

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-04010iTZNH47202404

main77196-04010iTZNA4#202312

BLACK

main77196-04020iTZNA4#202312

NATURAL

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-04060iTZNA4#,TZNH47202312

77210PIPE ASSY, FUEL TANK FILLER

main77210-04030iTZNA4#,TZNH47202312

77214PIPE, FUEL TANK FILLER

main77210-04060iTZNA4#,TZNH47202312

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0C100iTZNA4#,TZNH47202312

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-04040iTZNA4#,TZNH47202312

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0C050iTZNA4#,TZNH47202312

77219COVER, FUEL TANK FILLER PIPE

main77219-0R020iTZNA4#,TZNH47202312

77229ECLAMP, BREATHER TUBE

main77229-0C030iTZNA4#,TZNH47202312

77241WCLIP, TUBE JOINT

main77241-02010iTZNA4#202312

77284CLAMP, FUEL TUBE

main77285-0C160iTZNA4#,TZNH47202312

77284APROTECTOR, FUEL TUBE, NO.3

main77284-04010iTZNA4#,TZNH47202312

77310ACAP ASSY, FUEL TANK

main77300-06090iTZNH47202404

main77300-07040iTZNA4#202312

77316GASKET, FUEL TANK CAP

main77316-06090iTZNA4#,TZNH47202312

77416ABOLT, FUEL TANK

main90119-A0588iTZNA4#,TZNH47202312

77511ABRACKET, FUEL TANK

main77511-04010iTZNA4#,TZNH47202312

77512CBRACKET, FUEL TANK

main77512-35140iTZNA4#,TZNH47202312

77611BAND, FUEL TANK

main77601-04090iTZNA4#,TZNH47202312

77612BBAND, FUEL TANK, NO.2

main77602-04090iTZNA4#,TZNH47202312

77613CBAND, FUEL TANK, NO.3

main77603-04010iTZNA4#,TZNH47202312

77632BRACKET, FUEL TANK, NO.2

main77512-47030iTZNA4#,TZNH47202312

77641APROTECTOR, FUEL TANK, NO.1

main77641-04050iTZNA4#,TZNH47202312

77644BOLT, FUEL TANK

main90119-A0520iTZNA4#,TZNH47202312

77653CPIN, FUEL TANK BAND, NO.1

main77653-34060iTZNA4#,TZNH47202312

77662COVER, FUEL TANK GAGE

main77662-48010iTZNA4#202312

77675BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1

main77282-04010iTZNA4#,TZNH47202312

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-04020iTZNA4#,TZNH47202312

77697AINSULATOR, FUEL TANK HEAT, NO.2

main77697-04030iTZNA4#,TZNH47202312

77697BINSULATOR, FUEL TANK HEAT, NO.3

main77697-04040iTZNA4#,TZNH47202312

77785HARNESS, FUEL PUMP

main77785-04030iTZNA4#,TZNH47202312

8401

90119A0107

main90119-A0107

90119A0396

main90119-A0396

90119A0520

main90119-A0520

90301A0021

main90301-A0021

9046814032

main90468-14032

50 parts on this diagram · 9 diagrams in section
