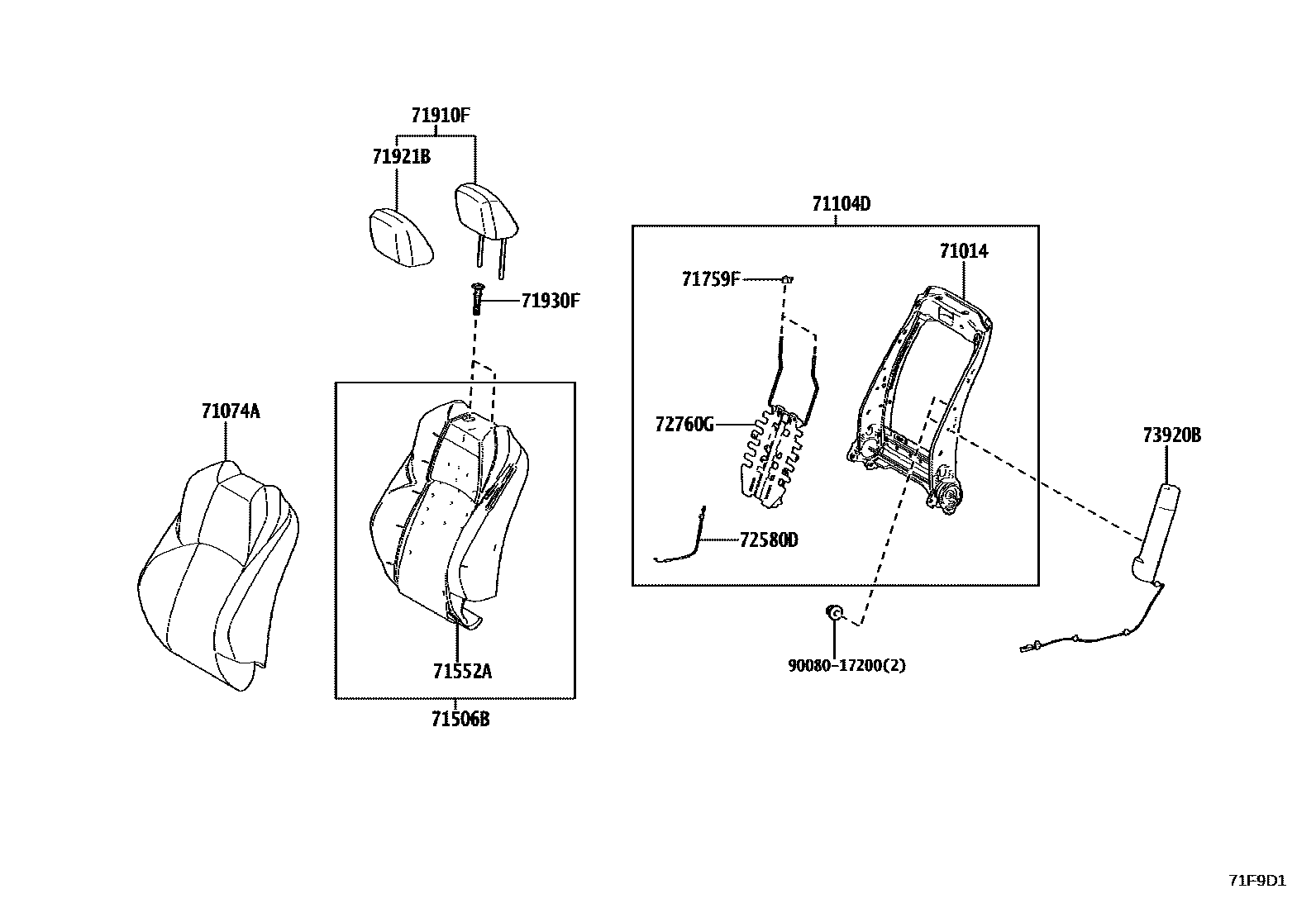

FRONT SEAT & SEAT TRACK
71014FRAME SUB-ASSY, FRONT SEATBACK, LH
TRD PRO PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY POWER
71074ACOVER SUB-ASSY, FRONT SEATBACK, LH
BLACK,TRIM2#
BLACK,TRIM2#
TRD OFFROAD PACKAGE&TRD+ PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY MANUAL&SEAT HEATER-WITHOUT,MD.GRAY,TRIM1#
TRD OFFROAD PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#
PRERUNNER PACKAGE,MD.GRAY,TRIM1#
TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&FRONT SEAT-DRIVER & PASSENGER:8WAY POWER&SEAT HEATER-WITH,BLACK,TRIM2#
TRAILHUNTER PACKAGE,MINERAL,TRIM6#
TRD PRO PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY POWER,BLACK, RED,TRIM2#
TRD PRO PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY POWER,SENSUAL RED, BLACK,TRIM3#
71104DFRAME SUB-ASSY, FRONT SEATBACK MAIN, LH
TRD PRO PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY POWER
TRD SPORT PACKAGE&TRD+ PACKAGE&FRONT SEAT-DRIVER & PASSENGER:8WAY POWER&SEAT HEATER-WITH
71506BPAD SUB-ASSY, FRONT SEATBACK, LH
TRD OFFROAD PACKAGE&SEAT HEATER-WITH
SEAT HEATER-WITH
TRD PRO PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY POWER
71552APAD, FRONT SEATBACK, LH
TRD PRO PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY POWER
71759FHOOK, FRONT SEATBACK, LH
71910FHEADREST ASSY, FRONT SEAT, LH
MD GRAY, GRAY,TRIM10
BLACK, GRAY,TRIM11,12,20
BLACK, GRAY,TRIM20
BLACK, WHITE,TRIM21
BLACK, DK GRAY,TRIM20
BLACK, BEIGE,TRIM20
TRAILHUNTER PACKAGE,MINERAL, YELLOW,TRIM6#
71921BCOVER, FRONT SEAT HEADREST
MD GRAY. GRAY,TRIM10
BLACK, GRAY,TRIM11,12,20
BLACK, GRAY,TRIM20
BLACK, WHITE,TRIM21
BLACK, DK GRAY,TRIM20
BLACK, BEIGE,TRIM20
TRAILHUNTER PACKAGE,MINERAL, YELLOW,TRIM6#
71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH
W(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM1#,2#
72580DCABLE ASSY, RECLINING ADJUSTING(FOR LH SEAT)
TRD PRO PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY POWER
72760GADJUSTER ASSY, LUMBAR SUPPORT, LH
73920BAIRBAG ASSY, FRONT SEAT, LH
TRD PRO PACKAGE&FRONT SEAT-DRIVER & PASSENGER:6WAY POWER
9008017200
main90080-17200
13 parts on this diagram · 9 diagrams in section
