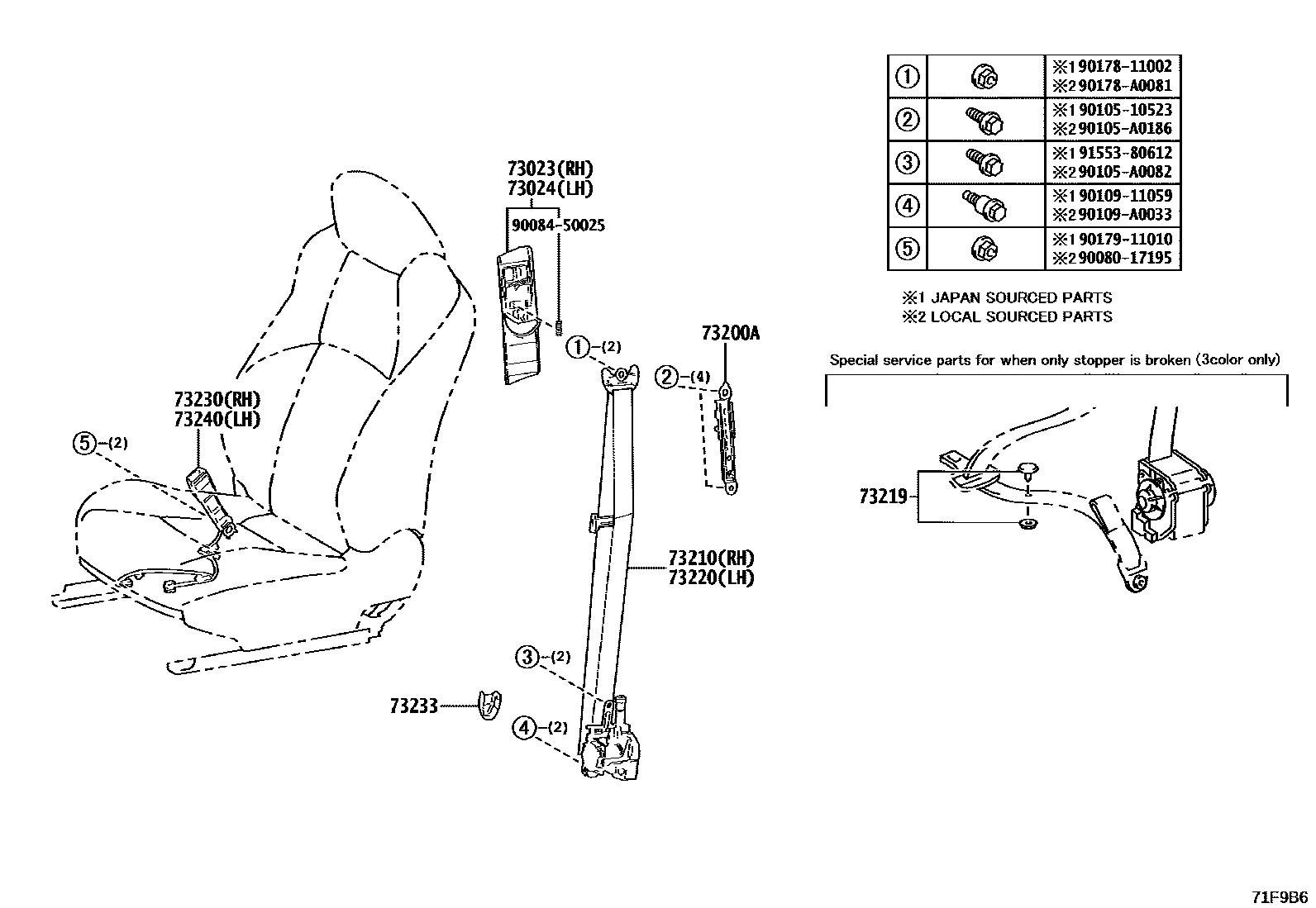

SEAT BELT

0001 1FRONT 0002 1REAR

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-0E020-C0iTZNA40,45202312

BLACK,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-0C020-C0iTZNA40,45202312

BLACK,TRIM1#,2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0R010×2iTZNA4#,TZNH47202312

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-AK010-C0iTZNA40,45202312

BLACK,TRIM1#,2#

73219STOPPER, TONGUE PLATE

main73219-02010iTZNA4#,TZNH47202312

BLACK,BLACK

main73219-02020iTZNA4#,TZNH47202312

GRAY,GRAY

main73219-02030iTZNA4#,TZNH47202312

BEIGE,BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-AK010-C0iTZNA40,45202312

BLACK,TRIM1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-AK010-C0iTZNA41,46..DCB202312

BLACK,TRIM1#,2#

main73230-AK030-C0iTZNA41,46..LCB202403

BLACK,TRIM1#,2#

main73230-AK050-C0iTZNH47202404

FRONT SEAT-DRIVER & PASSENGER:6WAY POWER,BLACK,TRIM2#,3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C1×2iTZNA40,45202312

BLACK,TRIM1#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-AK010-C0iTZNA40,45202312

BLACK,TRIM1#,2#

main73240-AK020-C0iTZNH47202404

BLACK,TRIM1#,2#,3#,6#

9008017195

main90080-17195

9008450025

main90084-50025

9010510523

main90105-10523

90105A0082

main90105-A0082

90105A0186

main90105-A0186

9010911059

main90109-11059

90109A0033

main90109-A0033

9017811002

main90178-11002

90178A0081

main90178-A0081

9017911010

main90179-11010

9155380612

main91553-80612

20 parts on this diagram · 2 diagrams in section
