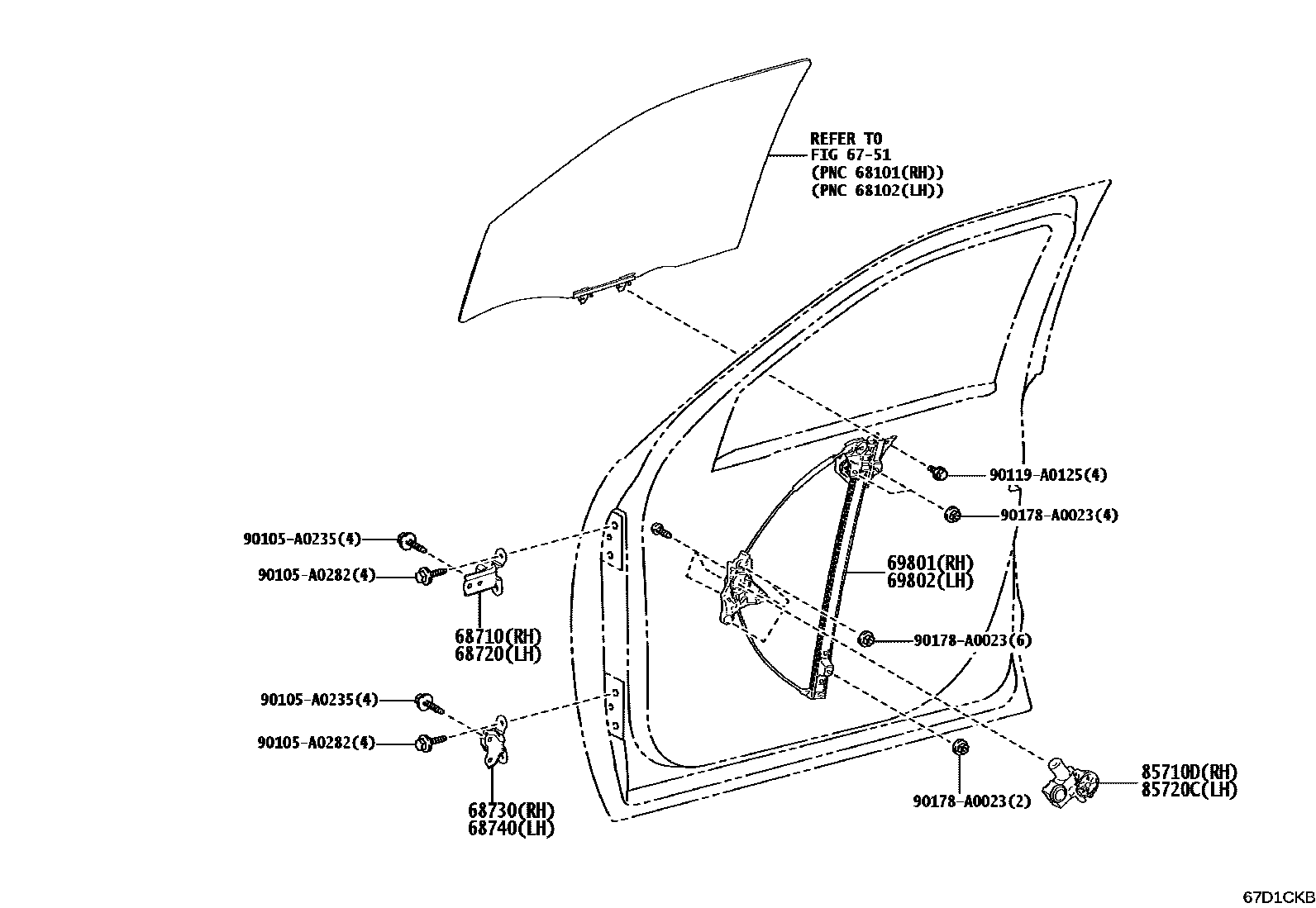

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iTZNA4#,TZNH47202312

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iTZNA4#,TZNH47202312

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iTZNA4#,TZNH47202312

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iTZNA4#,TZNH47202312

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-AK010iTZNA4#,TZNH47202312

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-AK010iTZNA4#,TZNH47202312

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AK020iTZNA4#,TZNH47202312

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AK020iTZNA4#,TZNH47202312

90105A0235

main90105-A0235

90105A0282

main90105-A0282

90119A0125

main90119-A0125

90178A0023

main90178-A0023

13 parts on this diagram · 1 diagram in section
