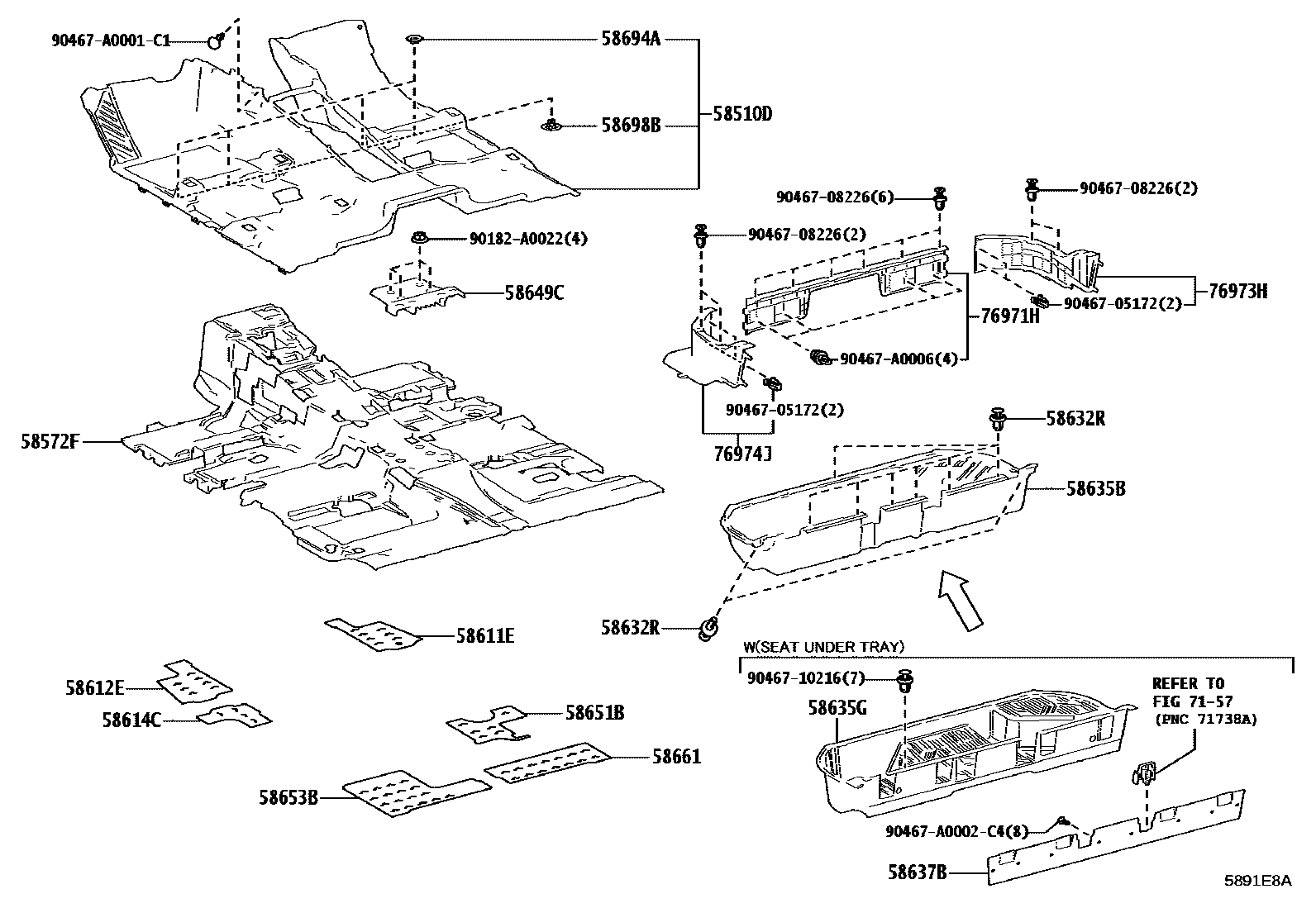

FLOOR MAT & SILENCER PAD
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,6#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58572FCARPET, REAR FLOOR, FRONT
58611ESHEET, FRONT FLOOR SILENCER
58612ESHEET, FRONT FLOOR SIRENCER, NO.2
58614CSHEET, FRONT FLOOR SILENCER, NO.4
58632RCLIP (FOR SEAT FLOOR BOX COVER)
SEAT UNDER TRAY-WITH
58635BBOX, SEAT FLOOR
SEAT UNDER TRAY-WITH
BLACK,TRIM1#,2#
BLACK,TRIM2#
58635GBOX, SEAT FLOOR, REAR
SEAT UNDER TRAY-WITH,BLACK,TRIM1#,2#
SEAT UNDER TRAY-WITH,BLACK,TRIM2#
58637BSUPPORT, SEAT FLOOR BOX, NO.2
SEAT UNDER TRAY-WITH,BLACK,TRIM2#
SEAT UNDER TRAY-WITH,BLACK,TRIM1#,2#
58651BSHEET, REAR FLOOR SILENCER, NO.1
58653BSHEET, REAR FLOOR SILENCER, NO.2
58661SHEET, REAR FLOOR SILENCER, NO.3
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
7157
76971HCOVER, REAR UNDER
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,6#
76973HCOVER, REAR UNDER SIDE, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,6#
76974JCOVER, REAR UNDER SIDE, LH
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,6#
90182A0022
main90182-A0022
9046705172
main90467-05172
9046708226
main90467-08226
9046710216
main90467-10216
90467A0001C1
main90467-A0001C1
90467A0002C4
main90467-A0002C4
90467A0006
main90467-A0006
26 parts on this diagram · 4 diagrams in section
