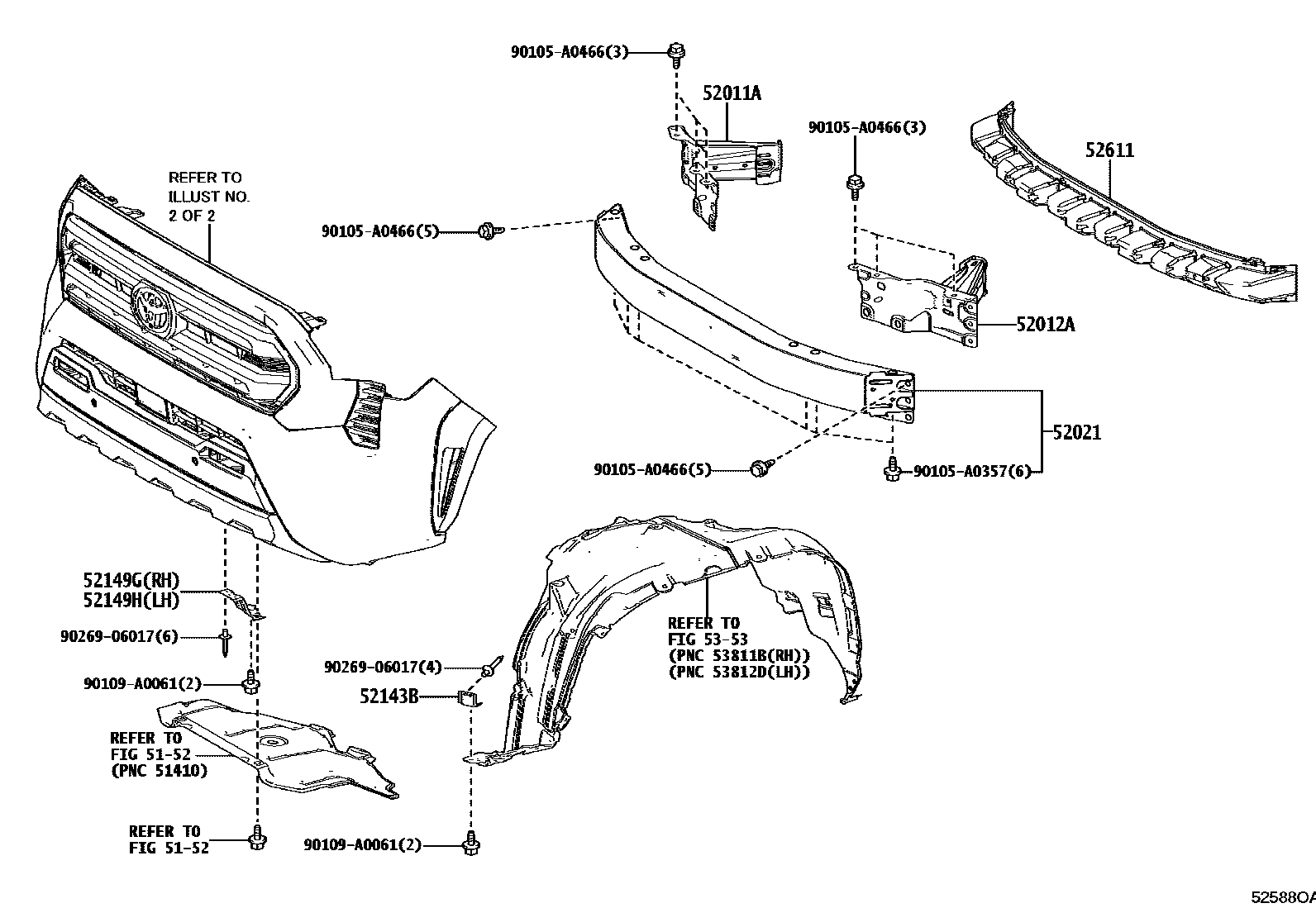

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1W(OVER FENDER) 0004 1TRAILHUNTER OR TRD PRO PACKAG

5152

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-04060iTZNA4#,TZNH47202312

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-04060iTZNA4#,TZNH47202312

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-04050iTZNA4#,TZNH47202312

52143BBRACKET, FRONT BUMPER SIDE

main52144-AK010iTZNA4#,TZNH47202312

52149BRACKET, FRONT BUMPER, INNER

main52136-AK010iTZNA4#,TZNH47202312

52149GBRACKET, FRONT BUMPER, INNER RH

main52137-AK010iTZNA4#,TZNH47202312

52149HBRACKET, FRONT BUMPER, INNER LH

main52138-AK010iTZNA4#,TZNH47202312

52611ABSORBER, FRONT BUMPER ENERGY

main52611-AK010iTZNA4#,TZNH47202312

5353

90105A0357

main90105-A0357

90105A0466

main90105-A0466

90109A0061

main90109-A0061

9026906017

main90269-06017

14 parts on this diagram · 4 diagrams in section
