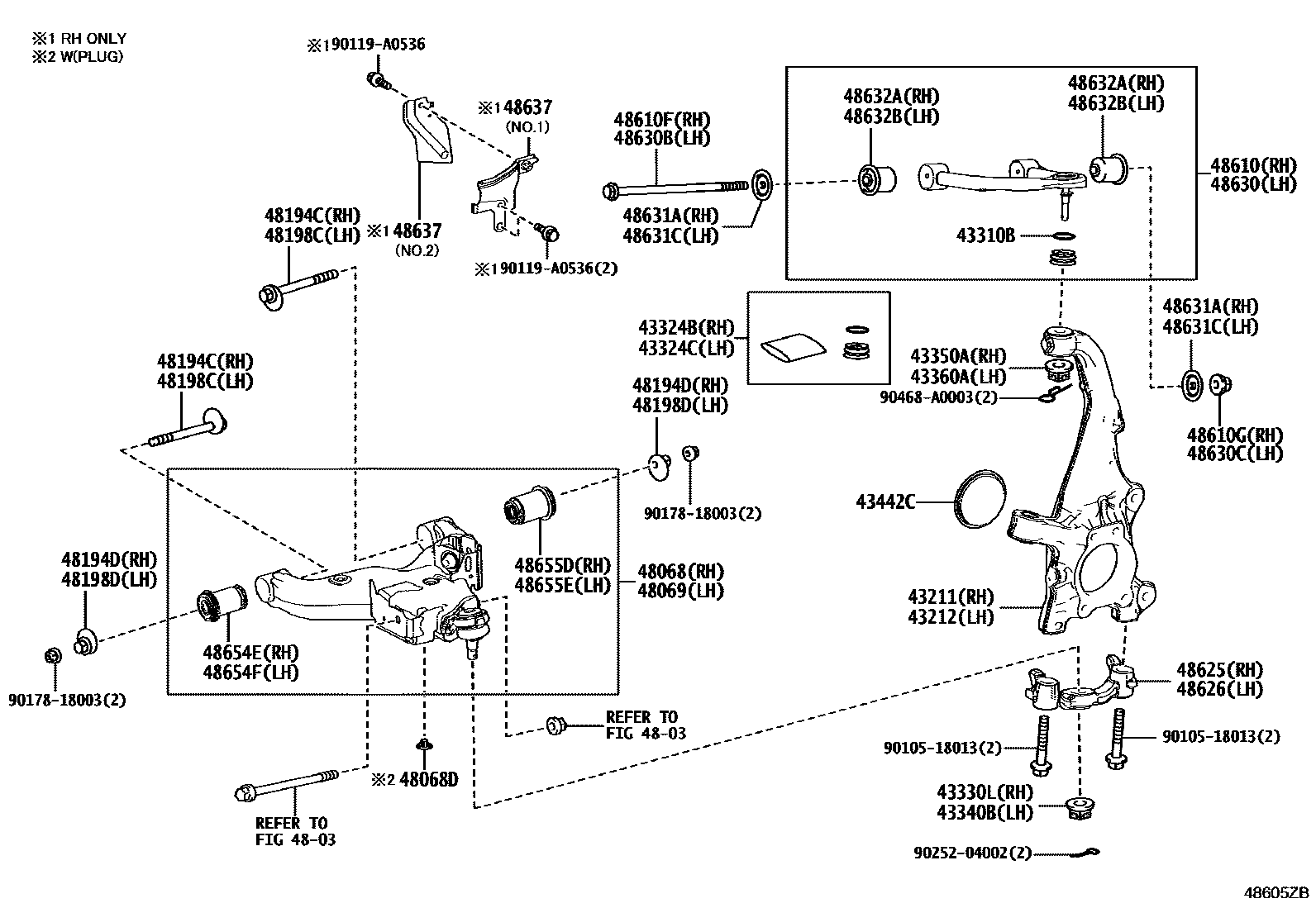

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43310BRING, SET (FOR DUST COVER)
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
R&D ACCESSORIES-WITH
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
43442CCAP, KNUCKLE GREASE RETAINER
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH,(L)
(L)
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH,(L)
(J)
48625ATTACHMENT, FRONT LOWER BALL JOINT, RH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH&TRD PREMIUM PACKAGE&TIRE & DISC WHEEL- 265/65R18,7.5J/+55
48626ATTACHMENT, FRONT LOWER BALL JOINT, LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH&TRD PREMIUM PACKAGE&TIRE & DISC WHEEL- 265/65R18,7.5J/+55
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
R&D ACCESSORIES-WITH
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH,(L)
(L)
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH,(L)
(J)
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
R&D ACCESSORIES-WITH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48637INSULATOR, UPPER ARM BUSH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
48654EBUSH, FRONT LOWER ARM, NO.1 RH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
TRD OFFROAD PACKAGE&R&D ACCESSORIES-WITH
TRD SPORT PACKAGE&R&D ACCESSORIES-WITH
9010518013
main90105-18013
90119A0536
main90119-A0536
9017818003
main90178-18003
9025204002
main90252-04002
90468A0003
main90468-A0003
40 parts on this diagram · 1 diagram in section
