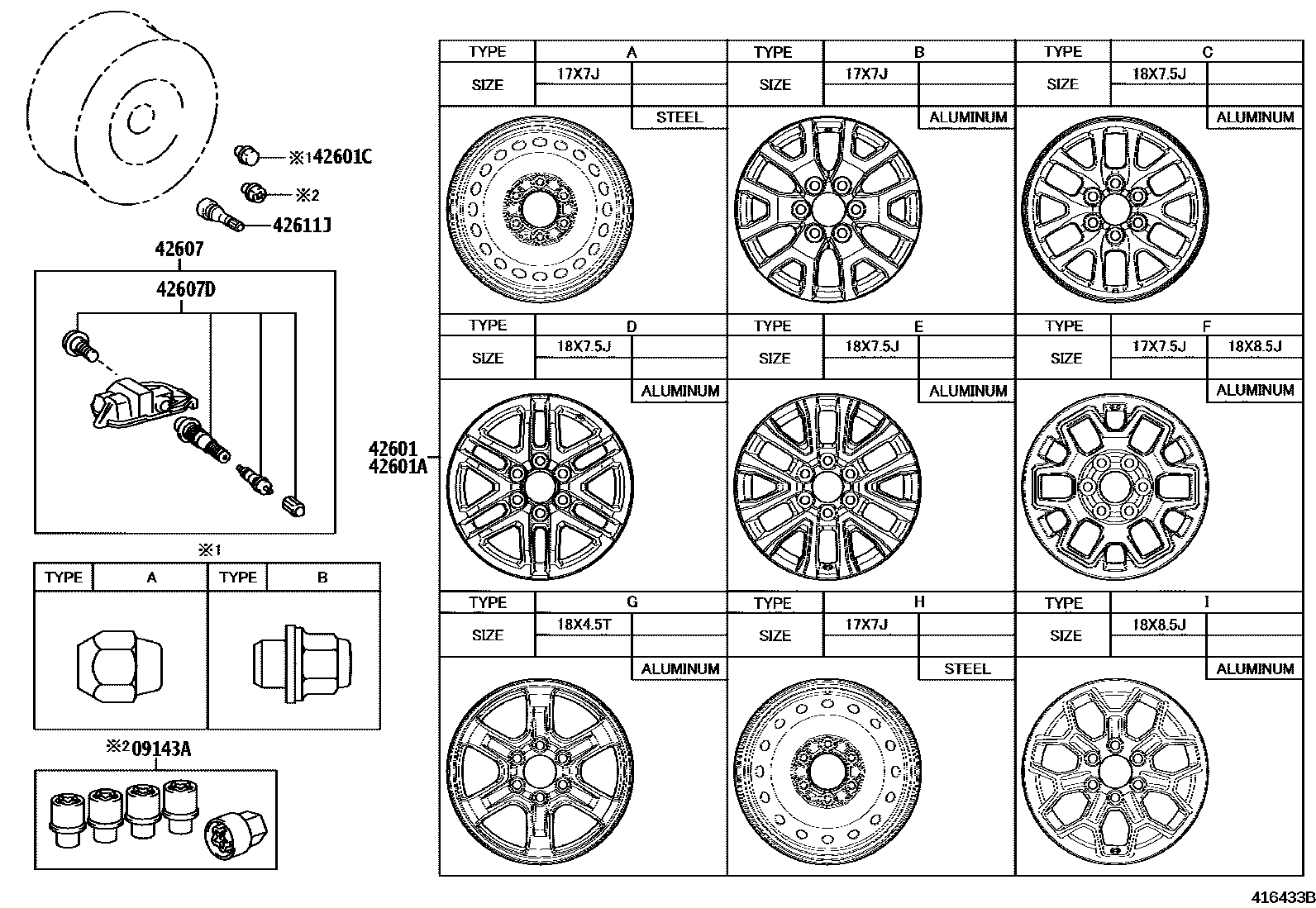

DISC WHEEL & WHEEL CAP

09143ANUT, WHEEL LOCK W/SOCKET WRENCH

42601WHEEL, DISC

17X7J, #,TYPE A:REFER ILLUST.

18X7.5J, #,TYPE E:REFER ILLUST.

17X7J, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

17X7J, #,TYPE H:REFER ILLUST.

17X7J, #,TYPE A:REFER ILLUST.

18X4.5T,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

WHEEL LOCKS-WITH&TIRE & DISC WHEEL- 265/65R18,7.5J/+55

WHEEL LOCKS-WITH

TRD OFFROAD PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/70R17,7.5J/+55,ALUMINUM

TRD SPORT PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/65R18,7.5J/+55,*ALU,MACHINING

WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/65R18,7.5J/+55,*ALU,MACHINING

WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/70R17,7.5J/+55,ALUMINUM

WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/65R18,8J/+45,*ALU,IN LINE ACCESSORY

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

42607DVALVE, TIRE PRESSURE MONITOR

42611JVALVE (FOR TUBELESS TIRE SPARE)

7 parts on this diagram · 3 diagrams in section
