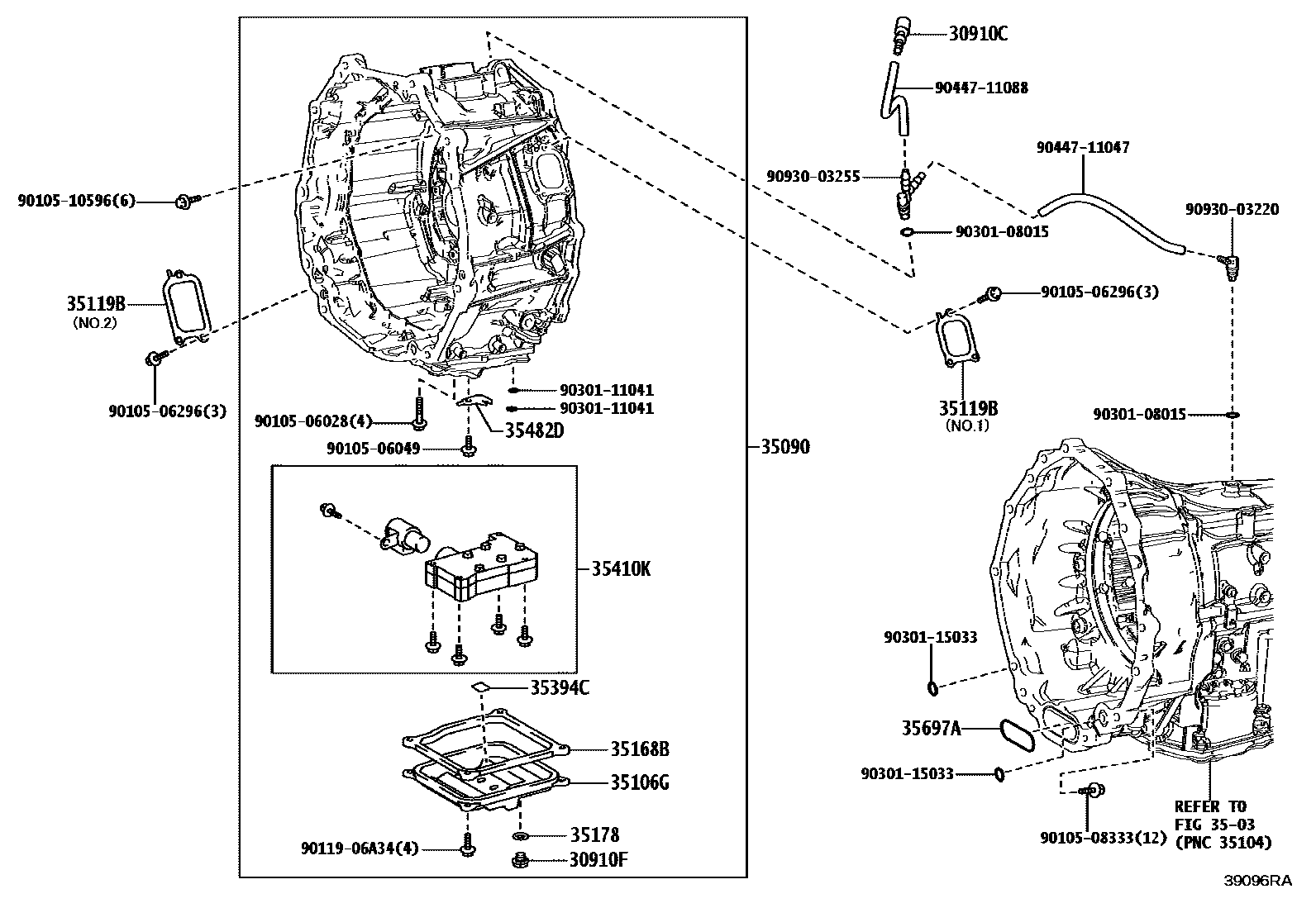

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30910CPLUG SUB-ASSY, BREATHER(FOR TRANSMISSION)
30910FPLUG(FOR HYBRID VEHICLE TRANSMISSION OIL PAN)
3503
35090MODULE ASSY, HYBRID
35106GPAN SUB-ASSY, TRANSAXLE OIL
35119BCOVER, TRANSMISSION HOUSING
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35168BGASKET, TRANSAXLE OIL PAN
35178GASKET, TRANSMISSION DRAIN PLUG
35394CMAGNET, OIL CLEANER
35410KBODY ASSY, TRANSMISSION VALVE
35482DCLAMP, TEMPERATURE SENSOR
35697ARING, TRANSAXLE OIL SEAL
9010506028
main90105-06028
9010506049
main90105-06049
9010506296
main90105-06296
9010508333
main90105-08333
9010510596
main90105-10596
9011906A34
main90119-06A34
9030108015
main90301-08015
9030111041
main90301-11041
9030115033
main90301-15033
9044711047
main90447-11047
9044711088
main90447-11088
9093003220
main90930-03220
9093003255
main90930-03255
25 parts on this diagram · 2 diagrams in section
