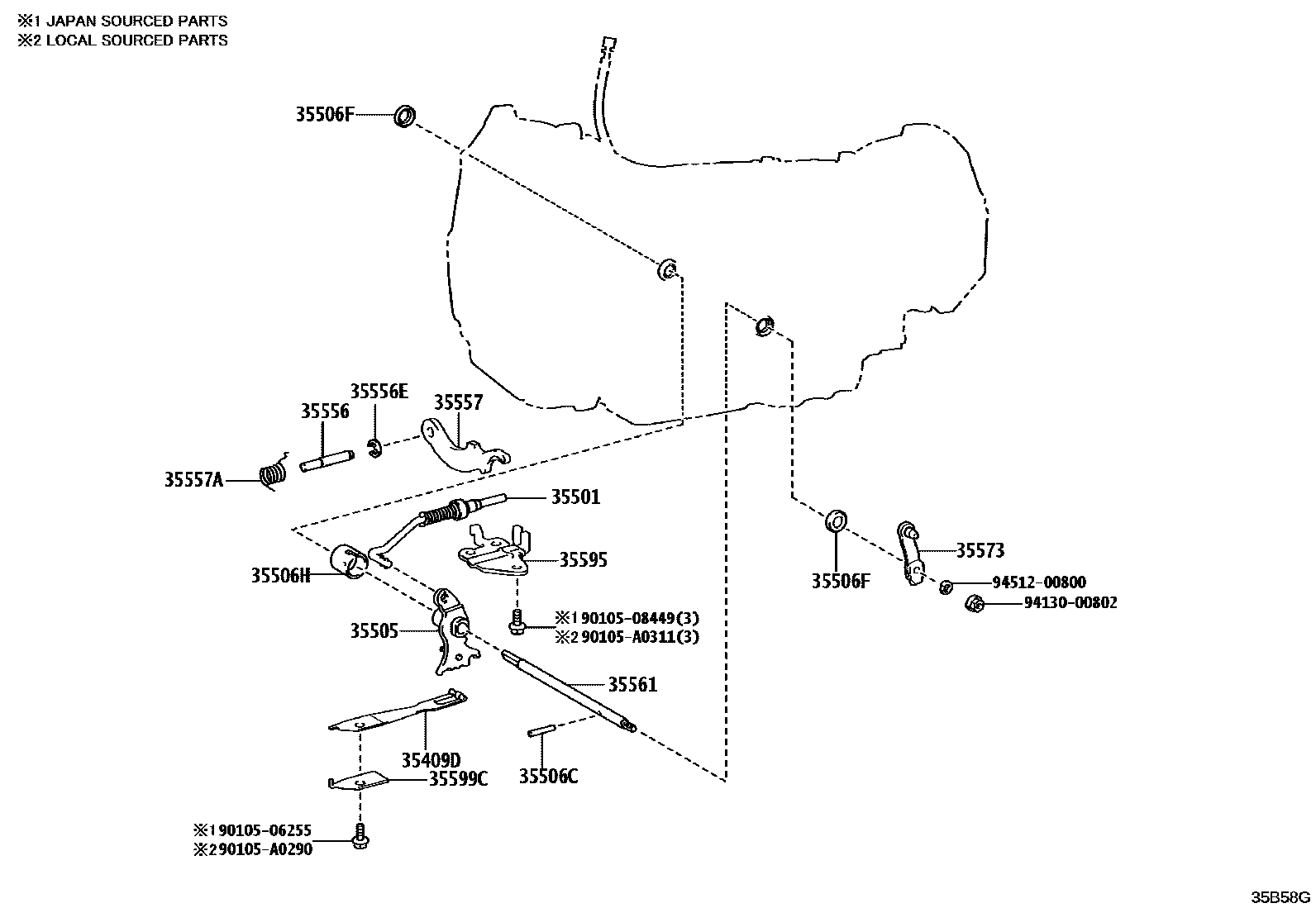

THROTTLE LINK & VALVE LEVER (ATM)

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-22050iTZNA4#,TZNH47..ATM,CVT202312

35501ROD SUB-ASSY, PARKING LOCK

main35501-60060iTZNA4#,TZNH47..ATM,CVT202312

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60120iTZNA4#,TZNH47..ATM,CVT202312

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iTZNA4#,TZNH47..ATM,CVT202312

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-A0032×2iTZNA4#,TZNH47..ATM,CVT202312

main90311-12002×2iTZNA45..DCB..8FC202405

LIMITED PACKAGE

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iTZNA4#,TZNH47..ATM,CVT202312

35556SHAFT, PARKING LOCK PAWL

main35556-60020iTZNA4#,TZNH47..ATM,CVT202312

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTZNA4#,TZNH47..ATM,CVT202312

35557PAWL, PARKING LOCK

main35557-60070iTZNA4#,TZNH47..ATM,CVT202312

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iTZNA4#,TZNH47..ATM,CVT202312

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iTZNA4#,TZNH47..ATM,CVT202312

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-60050iTZNA4#,TZNH47..ATM,CVT202312

35595BRACKET, PARKING LOCK PAWL

main35595-60060iTZNA4#,TZNH47..ATM,CVT202312

35599CCOVER, MANUAL DETENT SPRING

main35599-22050iTZNA4#,TZNH47..ATM,CVT202312

9010506255

main90105-06255

9010508449

main90105-08449

90105A0290

main90105-A0290

90105A0311

main90105-A0311

9413000802

main94130-00802

9451200800

main94512-00800

20 parts on this diagram · 1 diagram in section
