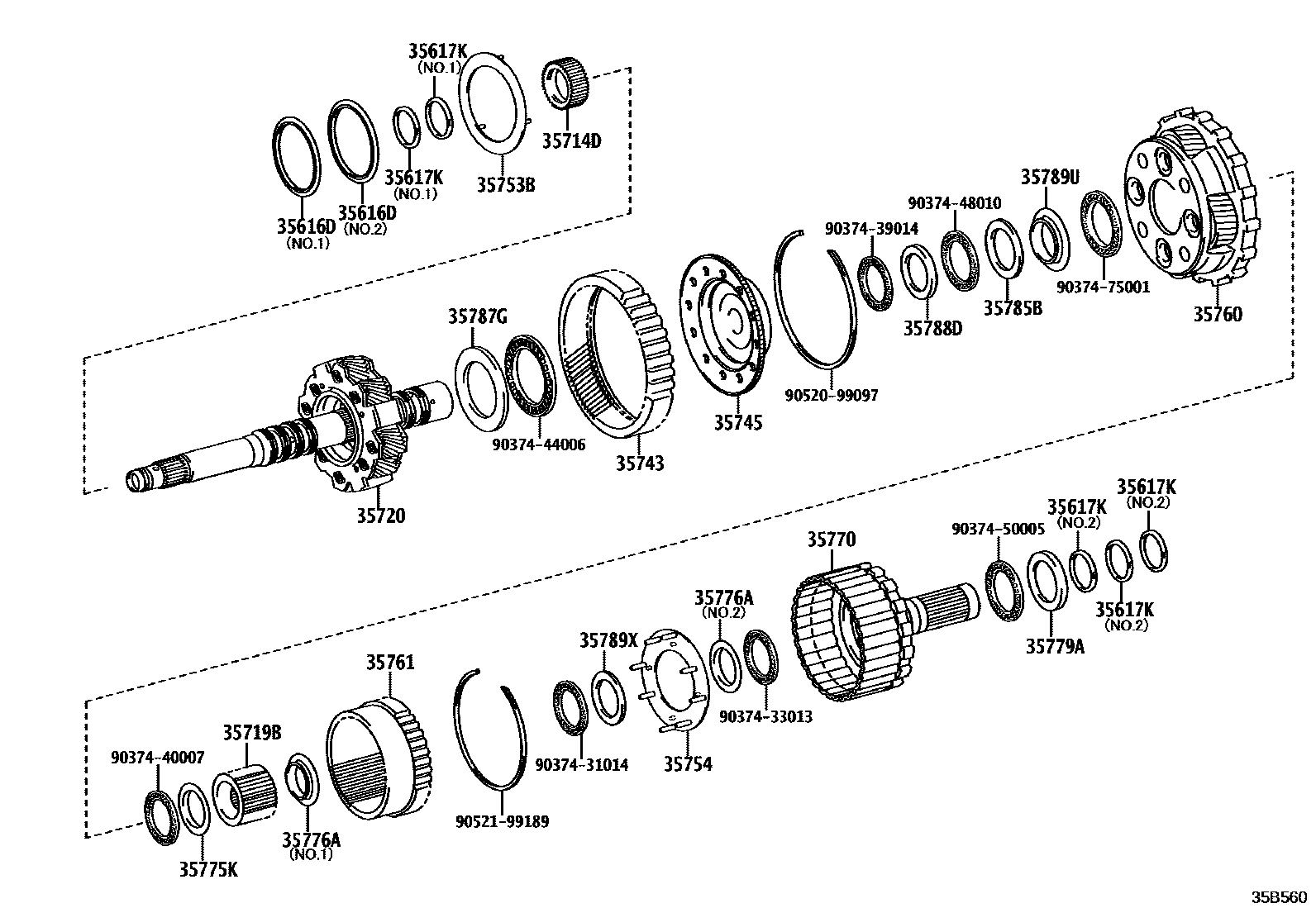

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35616DWASHER, CLUTCH DRUM THRUST
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35617KRING, CLUTCH DRUM OIL SEAL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35743GEAR, FRONT PLANETARY RING
35745FLANGE, FRONT PLANETARY RING GEAR
35753BRECEIVER, FRONT PLANETARY OIL
35754RETAINER, SLEEVE GUIDE
35761GEAR, REAR PLANETARY RING
35770SHAFT ASSY, OUTPUT
35775KRACE, THRUST BEARING, NO.5
35776ARACE, THRUST BEARING, NO.6
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35779ARACE, THRUST BEARING, NO.9
35785BRACE, THRUST BEARING, NO.4
35787GRACE, THRUST BEARING, NO.2
35788DRACE, THRUST BEARING, NO.3
35789URACE, THRUST BEARING
35789XRACE, THRUST BEARING
9037431014
main90374-31014
9037433013
main90374-33013
9037439014
main90374-39014
9037440007
main90374-40007
9037444006
main90374-44006
9037448010
main90374-48010
9037450005
main90374-50005
9037475001
main90374-75001
9052099097
main90520-99097
9052199189
main90521-99189
30 parts on this diagram · 1 diagram in section
