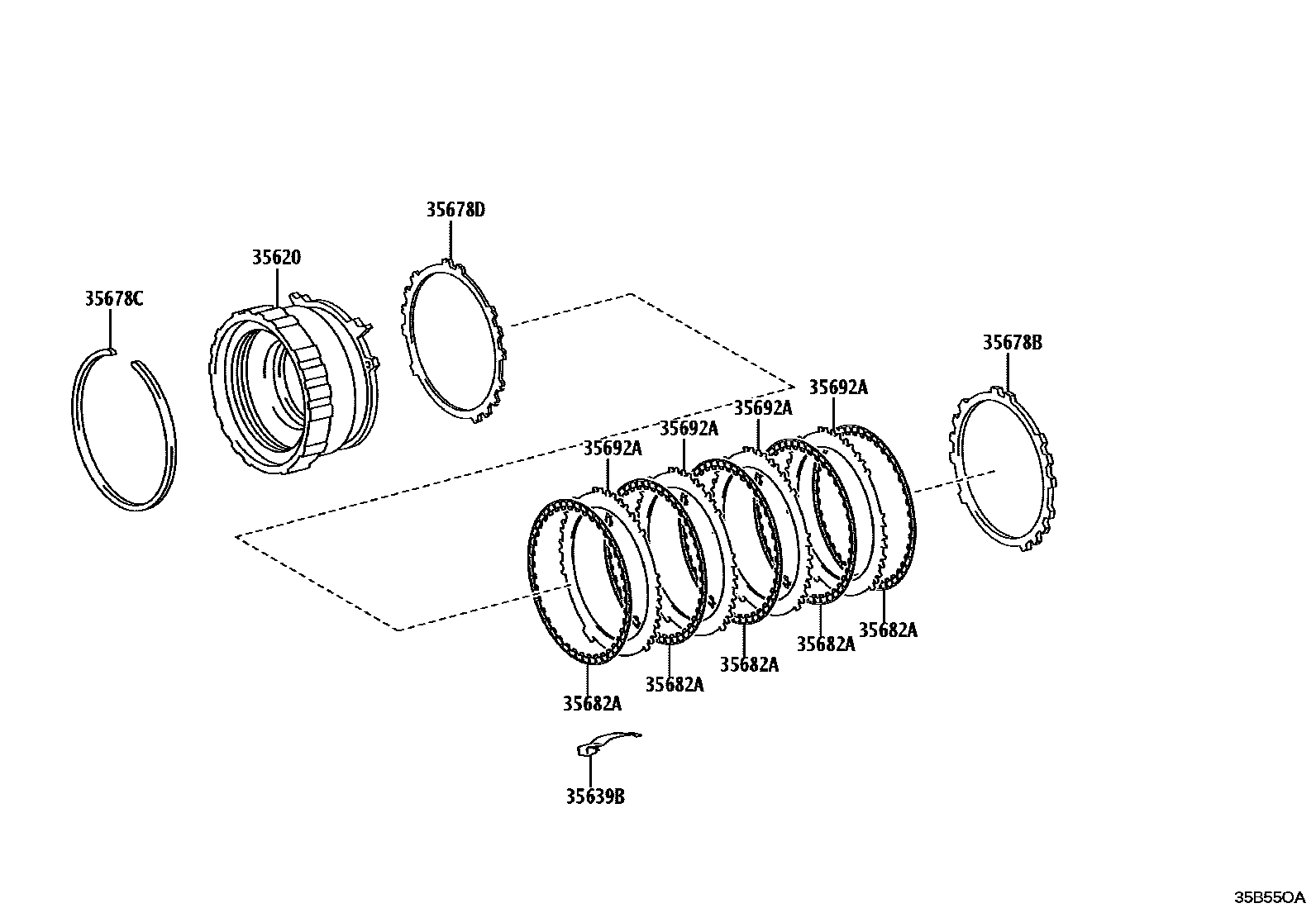

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35620SUPPORT ASSY, CENTER
(L)
(J)
LIMITED PACKAGE
35639BSPRING, BRAKE PLATE STOPPER
35678BFLANGE, BRAKE, NO.2
T=4.3,(L)
T=4.3,(J)
T=4.3,LIMITED PACKAGE
35678CRING, SNAP (FOR BRAKE NO.2)
35678DFLANGE, BRAKE, NO.2
T=1.8,MARK 0,(L)
T=1.9,MARK 1,(L)
T=2.0,MARK 2,(L)
T=2.1,MARK 3,(L)
T=2.2,MARK 4,(L)
T=2.3,MARK 5,(L)
T=2.4,MARK 6,(L)
T=2.5,MARK 7,(L)
T=2.6,MARK 8,(L)
T=2.7,MARK 9,(L)
T=2.8,MARK A,(L)
T=1.8,MARK 0,(J)
T=1.8,MARK 0,LIMITED PACKAGE
T=1.9,MARK 1,(J)
T=2.0,MARK 2,(J)
T=2.1,MARK 3,(J)
T=2.2,MARK 4,(J)
T=2.3,MARK 5,(J)
T=2.4,MARK 6,(J)
T=2.5,MARK 7,(J)
T=2.6,MARK 8,(J)
T=2.7,MARK 9,(J)
T=2.8,MARK A,(J)
35682ADISC, BRAKE, NO.2
(L)
(J)
LIMITED PACKAGE
35692APLATE, BRAKE, NO.2
(L)
(J)
LIMITED PACKAGE
7 parts on this diagram · 1 diagram in section
