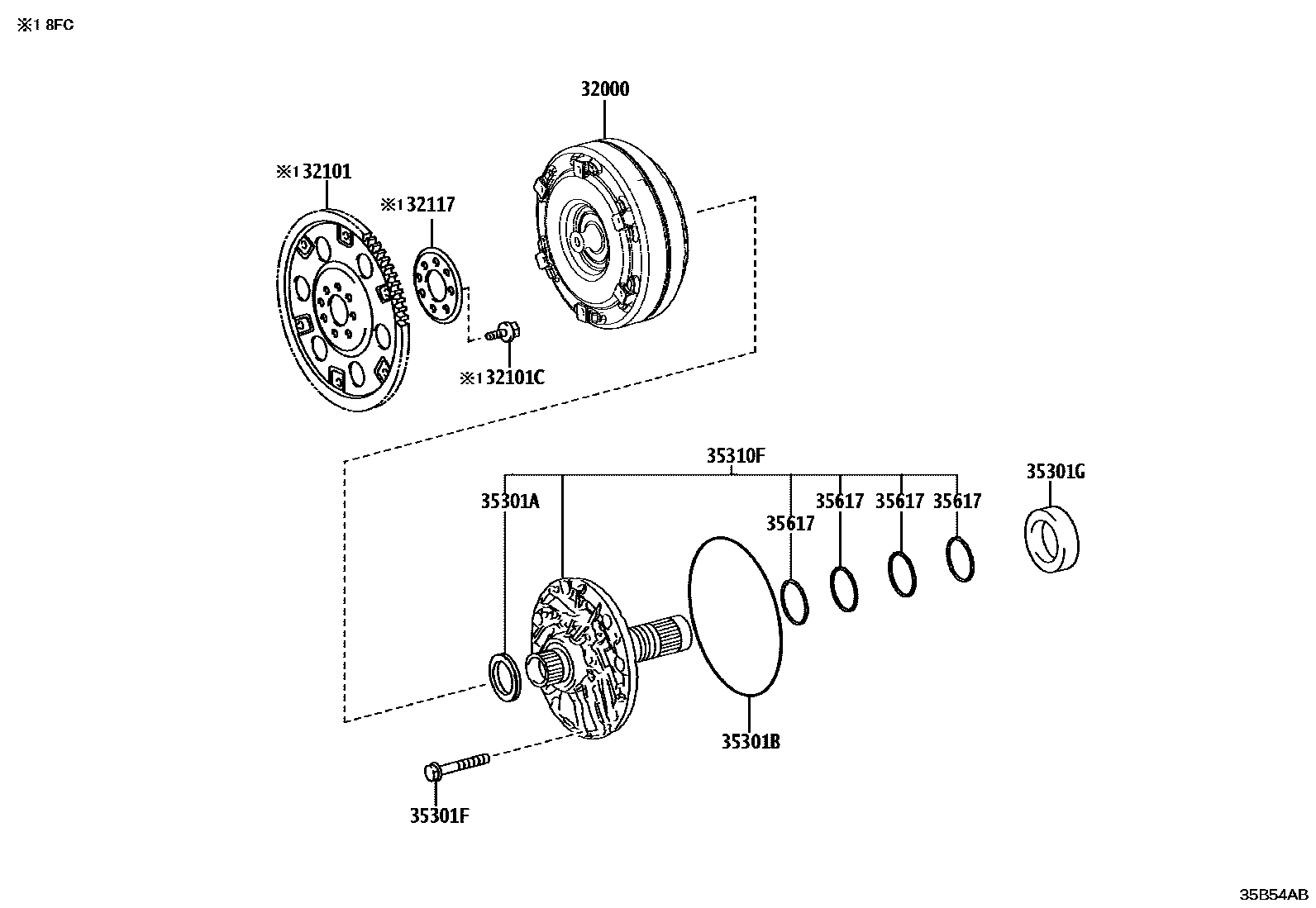

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-60400iTZNH47202404

main32000-60420iTZNA4#..8FC202312

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-04020iTZNA4#..8FC202312

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iTZNA4#..8FC202312

*12-1.25PX20.3-14.3

32117SPACER, DRIVE PLATE, REAR

main32117-02030iTZNA4#..8FC202312

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-43014iTZNA4#,TZNH47..ATM,CVT202312

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iTZNA4#,TZNH47..ATM,CVT202312

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iTZNA45,46..8FC202405

*8-1.25PX35-35

main90105-08091iTZNA45,46..8FC202405

*8-1.25PX35-35,LIMITED PACKAGE

main90105-A0332iTZNA4#,TZNH47..ATM,CVT202312

*8-1.25PX35-32.5

35301GBEARING,NEEDLE ROLLER

main90364-49008iTZNA4#,TZNH47..ATM,CVT202312

35310FPUMP ASSY, FRONT OIL

main35320-04020iTZNA4#..8FC202312

main35320-04030iTZNH47202404

35617RING, CLUTCH DRUM OIL SEAL

main35617-04030iTZNA4#,TZNH47..ATM,CVT202312

10 parts on this diagram · 1 diagram in section
