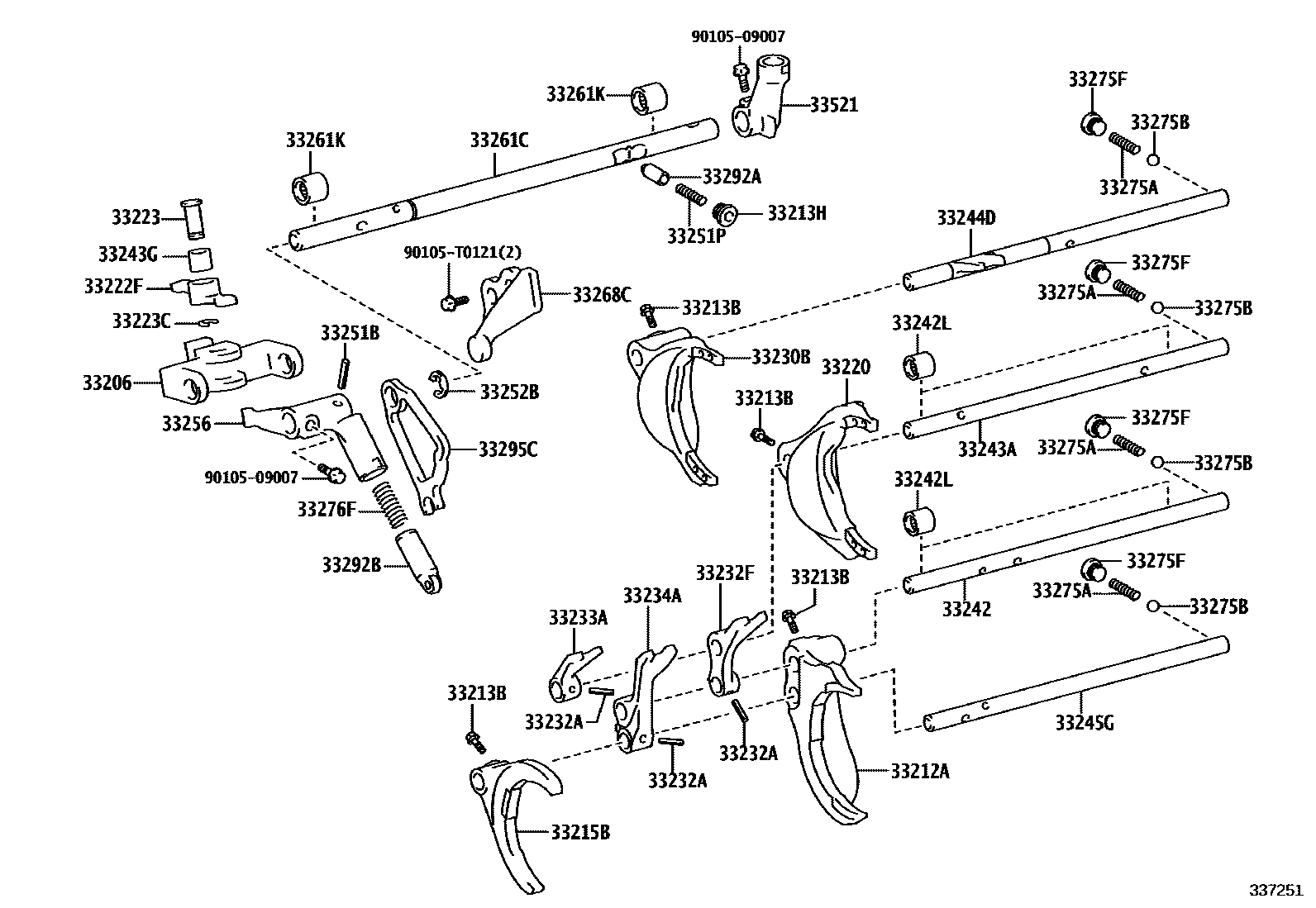

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33206PLATE SUB-ASSY, SHIFT INTERLOCK
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213HPLUG, W/HEAD STRAIGHT SCREW, NO.2
33215BFORK, GEAR SHIFT, NO.4
33220FORK ASSY, GEAR SHIFT, NO.2
33222FARM, SHIFT
33223PIVOT, SHIFT ARM
33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)
33230BFORK ASSY, GEAR SHIFT, NO.3
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33242SHAFT, GEAR SHIFT FORK, NO.1
sub33242-0K083
33242LBEARING (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33243GBEARING ( FOR SHIFT FORK SHAFT)
33244DSHAFT, GEAR SHIFT FORK, NO.3
33245GSHAFT, GEAR SHIFT FORK, NO.4
sub33245-0K052
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=25.5
33251PSPRING (FOR SHIFT & SELECT LEVER)
33252BRING, E (FOR SHIFT INNER LEVER)
33256LEVER, SELECT INNER
33261CSHAFT, SHIFT & SELECT LEVER
sub33261-0K041
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
33268CSTOPPER, SHIFT INTERLOCK PLATE
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=15.35
33275BBALL, SHAFT DETENT
33275FPLUG (FOR SHIFT DETENT BALL)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33292APIN, LOCK BALL
33292BPIN, LOCK BALL NO.2
33295CCAM, SHIFT & SELECT
33521HOUSING, SHIFT LEVER
9010509007
main90105-09007
90105T0121
main90105-T0121
37 parts on this diagram · 1 diagram in section
