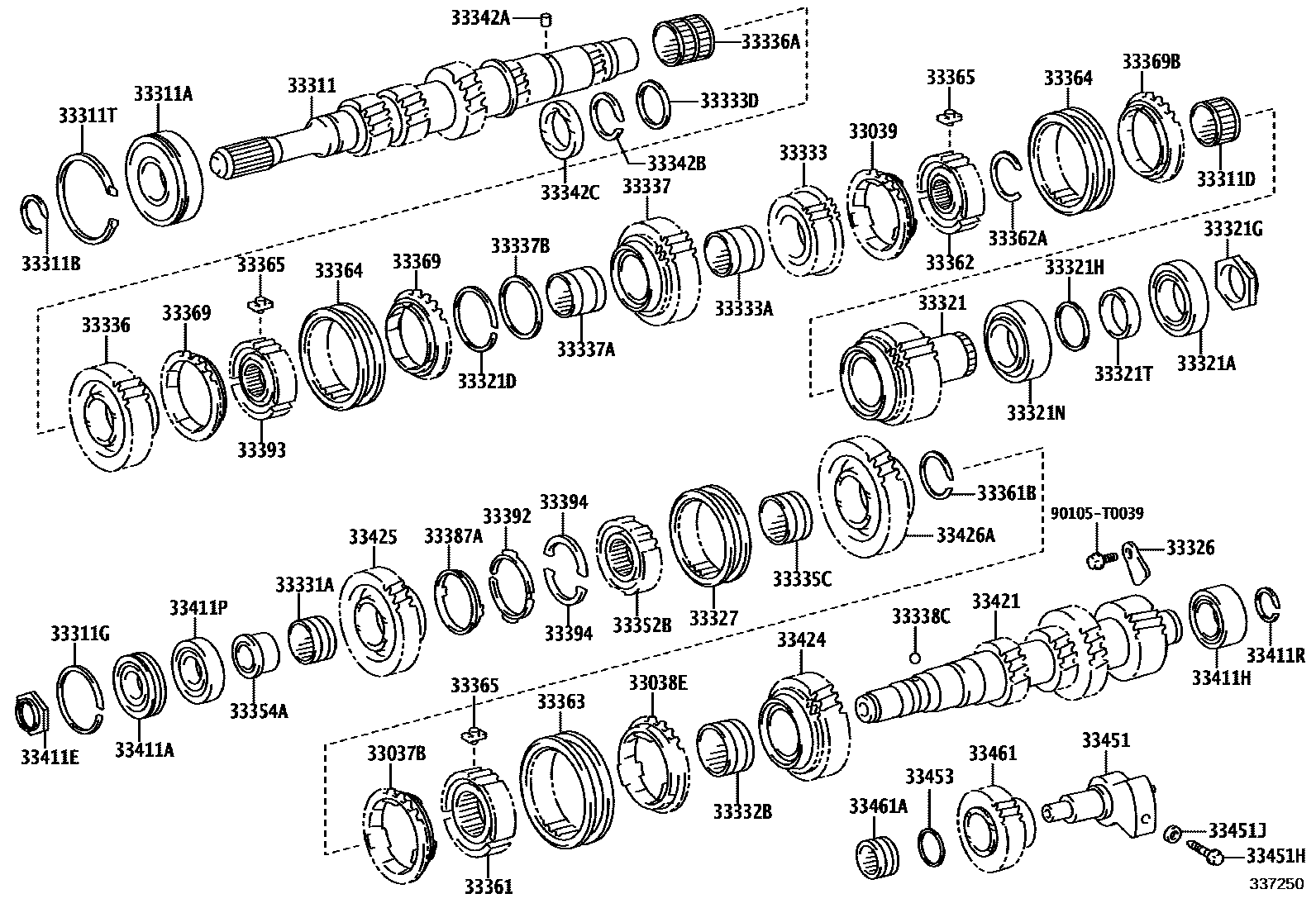

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33039RING SET, SYNCHRONIZER, NO.3
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
T=2.4
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=2.222,MARK 01
T=2.238,MARK 02
T=2.254,MARK 03
T=2.270,MARK 04
T=2.286,MARK 05
T=2.302,MARK 06
T=2.318,MARK 07
T=2.334,MARK 08
T=2.350,MARK 09
T=2.366,MARK 10
T=2.382,MARK 11
T=2.398,MARK 12
T=2.414,MARK 13
T=2.430,MARK 14
T=2.446,MARK 15
T=2.462,MARK 16
T=2.478,MARK 17
T=2.494,MARK 18
T=2.510,MARK 19
T=2.526,MARK 20
T=2.542,MARK 21
T=2.558,MARK 22
T=2.574,MARK 23
T=2.590,MARK 24
T=2.606,MARK 25
T=2.622,MARK 26
T=2.638,MARK 27
T=2.654,MARK 28
T=2.670,MARK 29
T=2.686,MARK 30
T=2.702,MARK 31
T=2.718,MARK 32
T=2.734,MARK 33
T=2.750,MARK 34
T=2.766,MARK 35
T=2.782,MARK 36
T=2.798,MARK 37
T=2.814,MARK 38
T=2.830,MARK 39
T=2.846,MARK 40
T=2.862,MARK 41
T=2.878,MARK 42
T=2.894,MARK 43
T=2.910,MARK 44
T=2.926,MARK 45
T=2.942,MARK 46
T=2.958,MARK 47
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321TSPACER (FOR OUTPUT SHAFT)
33326PLATE, BEARING LOCK
33327SLEEVE, TRANSMISSION HUB, NO.4
33331ABEARING (FOR REVERSE GEAR)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333DSPACER (FOR 3RD GEAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33337GEAR SUB-ASSY, 6TH
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33337BSPACER (FOR 6TH GEAR)
33338CBALL, REVERSE SHIFT RESTRICT
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
T=2.07,MARK A
T=2.12,MARK B
T=2.17,MARK C
T=2.22,MARK D
T=2.27,MARK E
T=2.32,MARK F
33342CWASHER, 3RD GEAR THRUST
33352BHUB, TRANSMISSION CLUTCH, NO.4
33354ARACE, REVERSE GEAR BEARING, INNER
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.28,MARK A
T=2.33,MARK B
T=2.38,MARK C
T=2.43,MARK D
T=2.48,MARK E
T=2.53,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33369RING, SYNCHRONIZER, NO.3
33369BRING, SYNCHRONIZER, NO.4
33387ARING, REVERSE SYNCHRONIZER
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411ENUT(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411PBEARING, COUNTERSHAFT CENTER
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.45,MARK A
T=2.50,MARK B
T=2.55,MARK C
T=2.60,MARK D
T=2.65,MARK E
T=2.70,MARK F
T=2.75,MARK G
33421GEAR, COUNTER
33424GEAR, COUNTERSHAFT 2ND SPEED
33425GEAR, COUNTERSHAFT REVERSE
33426AGEAR, COUNTERSHAFT, 1ST SPEED
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33453SPACER, REVERSE IDLER GEAR SHAFT
33461GEAR, REVERSE IDLER
33461ABEARING, REVERSE IDLER GEAR
90105T0039
main90105-T0039
64 parts on this diagram · 1 diagram in section
