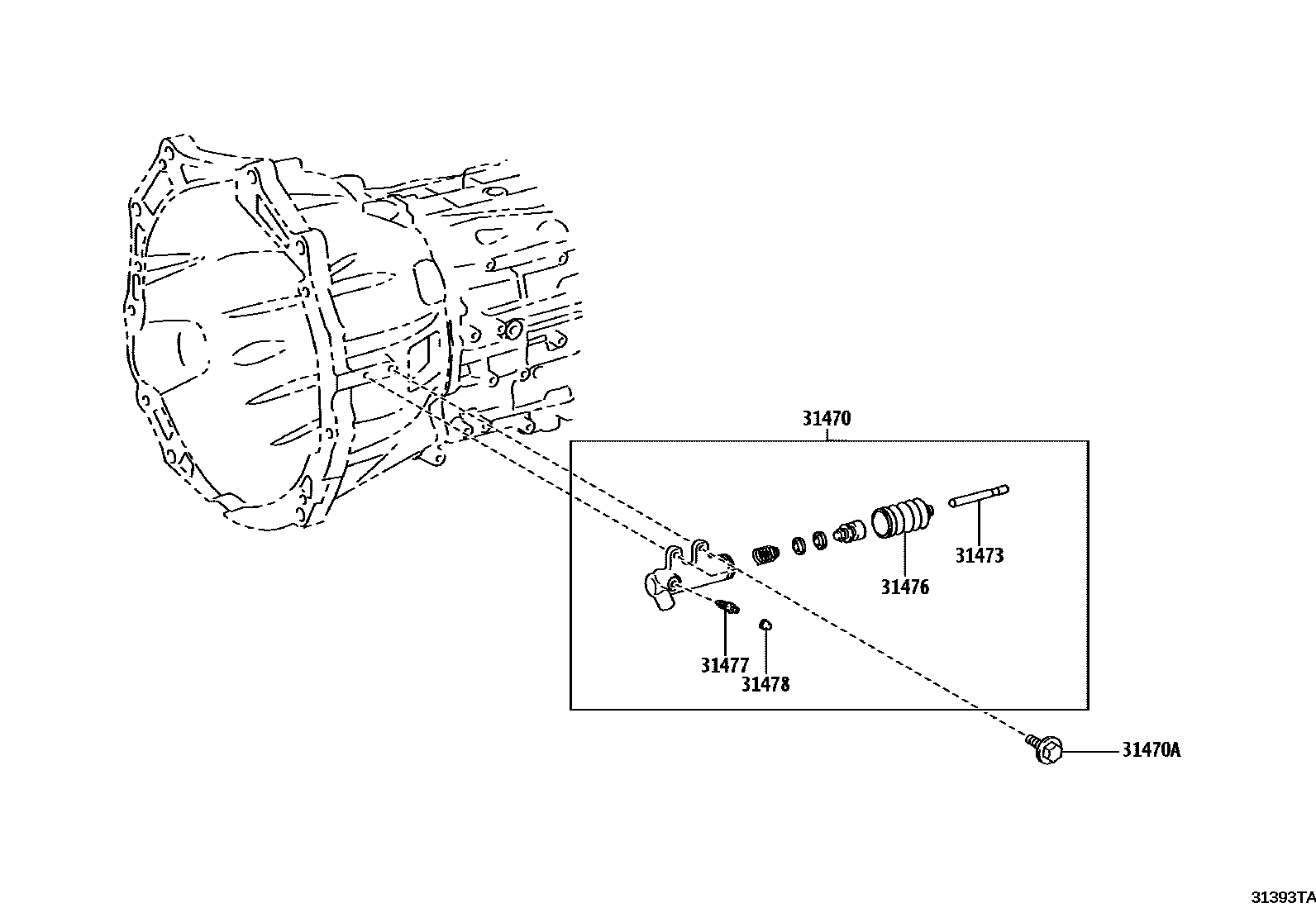

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-04040iTZNA45..6F202312

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221iTZNA45..6F202312

*8-1.25PX25-20.1

main91611-B0825iTZNA45..6F202312

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-0K020iTZNA45..6F202312

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-36010iTZNA45..6F202312

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-0D030iTZNA45..6F202312

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iTZNA45..6F202312

6 parts on this diagram · 1 diagram in section
