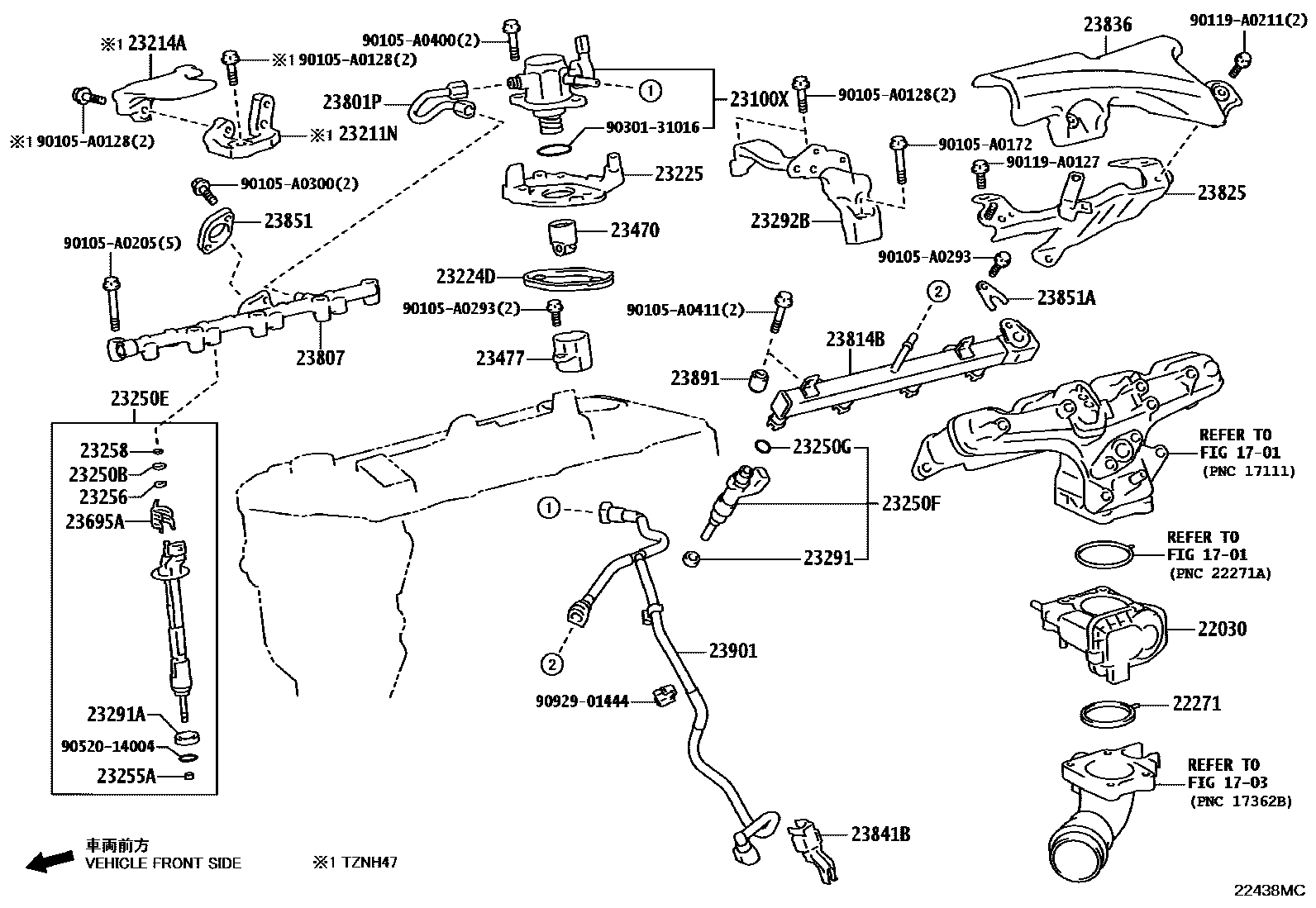

FUEL INJECTION SYSTEM
1701
1703
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23211NBRACKET, FUEL PUMP PROTECTOR
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23225SPACER, FUEL PUMP
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23250GRING, O, NO.2(FOR FUEL INJECTOR)
(J)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23292BPROTECTOR, FUEL HOSE
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23814BPIPE, FUEL DELIVERY
23825GUARD, FUEL DELIVERY
23836COVER, FUEL DELIVERY GUARD
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
(J)
(L)
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
90105A0128
main90105-A0128
90105A0172
main90105-A0172
90105A0205
main90105-A0205
90105A0293
main90105-A0293
90105A0300
main90105-A0300
90105A0400
main90105-A0400
90105A0411
main90105-A0411
90119A0127
main90119-A0127
90119A0211
main90119-A0211
9030131016
main90301-31016
9052014004
main90520-14004
9092901444
main90929-01444
44 parts on this diagram · 1 diagram in section
