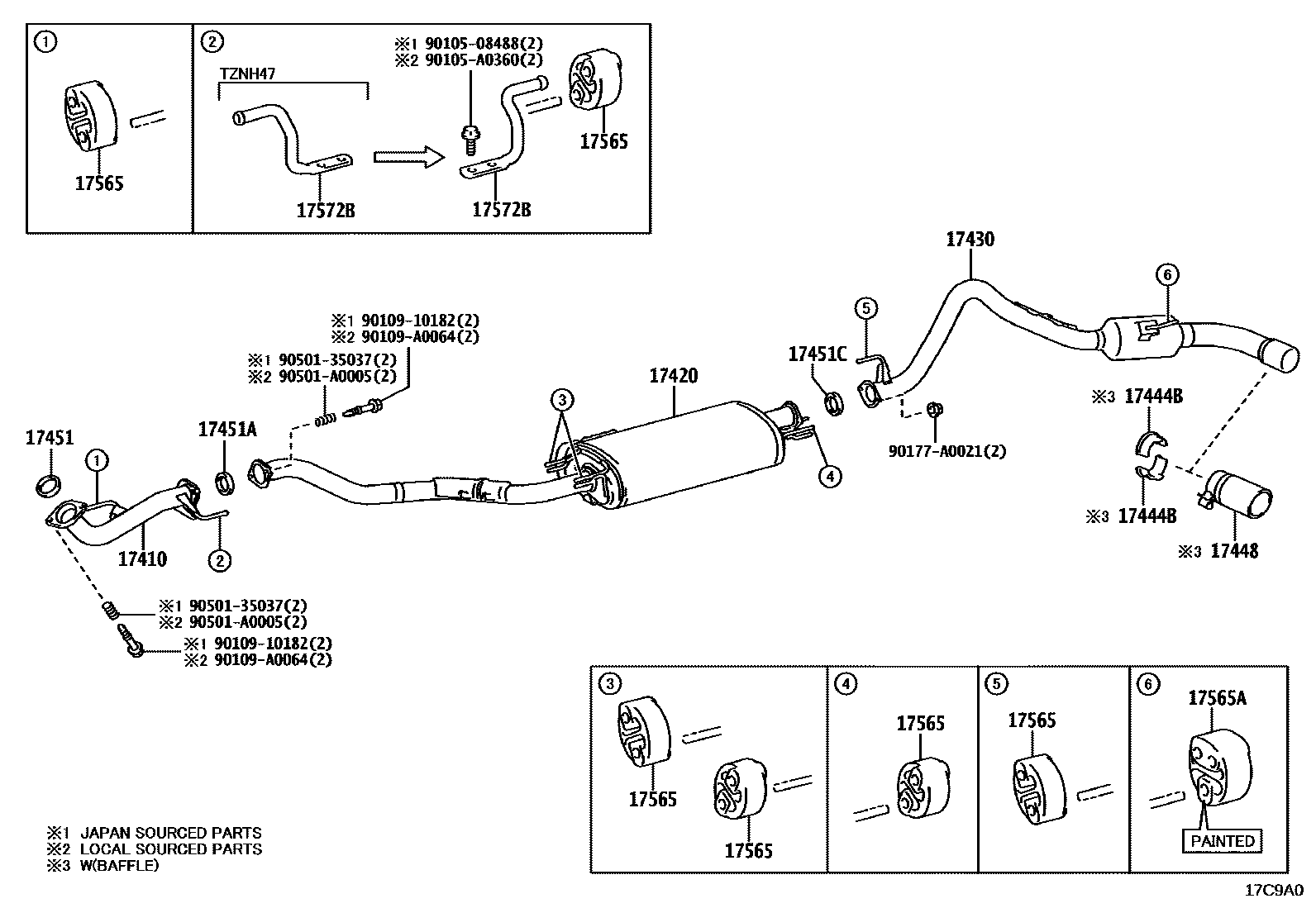

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17420PIPE ASSY, EXHAUST, CENTER
MUFFLER-WITH(FOR TRD)
TRD SPORT PACKAGE&REAR DECK-6FT & STORAGE BOX
REAR DECK-6FT
TRD OFFROAD PACKAGE&REAR DECK-6FT & STORAGE BOX
TRAILHUNTER PACKAGE&REAR DECK-6FT & STORAGE BOX
TRD SPORT PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-WITH(FRONT & REAR)&REAR BUMPER-PAINTED
EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)
EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)
EXHAUST TAIL PIPE & DIFFUSER-WITH(FOR TRAILHUNTER PACKAGE)&MUFFLER-WITH(FOR TRD)
TRD OFFROAD PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-WITH(FRONT & REAR)&REAR BUMPER-PAINTED
TRD OFFROAD PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-ON-OFF STABILIZER&REAR BUMPER-PAINTED
TRD OFFROAD PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-WITH(FRONT & REAR)&REAR BUMPER-PAINTED
TRD OFFROAD PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-ON-OFF STABILIZER&REAR BUMPER-PAINTED
TRD SPORT PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-WITH(FRONT & REAR)&REAR BUMPER-PAINTED
17430PIPE ASSY, EXHAUST, TAIL
EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)
EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)
EXHAUST TAIL PIPE & DIFFUSER-WITH(FOR TRAILHUNTER PACKAGE)
EXHAUST TAIL PIPE & DIFFUSER-WITH(FOR TRAILHUNTER PACKAGE)
TRD OFFROAD PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-WITH(FRONT & REAR)&REAR BUMPER-PAINTED
TRD OFFROAD PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-ON-OFF STABILIZER&REAR BUMPER-PAINTED
TRD SPORT PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-WITH(FRONT & REAR)&REAR BUMPER-PAINTED
EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)
TRD OFFROAD PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-WITH(FRONT & REAR)&REAR BUMPER-PAINTED
TRD OFFROAD PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-ON-OFF STABILIZER&REAR BUMPER-PAINTED
TRD SPORT PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)&STABILIZER-WITH(FRONT & REAR)&REAR BUMPER-PAINTED
EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)
EXHAUST TAIL PIPE & DIFFUSER-WITH(FOR TRAILHUNTER PACKAGE)
EXHAUST TAIL PIPE & DIFFUSER-WITH(FOR TRAILHUNTER PACKAGE)&MUFFLER-WITH(FOR TRD)
17444BSPACER, EXHAUST PIPE
EXHAUST TAIL PIPE & DIFFUSER-WITH(CHROME)
EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK)
17448BAFFLE, TAILPIPE
EXHAUST TAIL PIPE & DIFFUSER-WITH(CHROME)
EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK)
17451GASKET, EXHAUST PIPE
(L)
(J)
17451AGASKET, EXHAUST PIPE, NO.2
(L)
(J)
17451CGASKET, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
EXHAUST TAIL PIPE & DIFFUSER-WITH(BLACK,FOR TRD)&MUFFLER-WITH(FOR TRD)
EXHAUST TAIL PIPE & DIFFUSER-WITH(POLISH,FOR TRD)&MUFFLER-WITH(FOR TRD)
EXHAUST TAIL PIPE & DIFFUSER-WITH(FOR TRAILHUNTER PACKAGE)&MUFFLER-WITH(FOR TRD)
EXHAUST TAIL PIPE & DIFFUSER-WITH(FOR TRAILHUNTER PACKAGE)
17565ASUPPORT, EXHAUST PIPE, NO.4
NO PAINTED
PURPLE PAINTED
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
9010508488
main90105-08488
90105A0360
main90105-A0360
9010910182
main90109-10182
90109A0064
main90109-A0064
90177A0021
main90177-A0021
9050135037
main90501-35037
90501A0005
main90501-A0005
18 parts on this diagram · 2 diagrams in section
