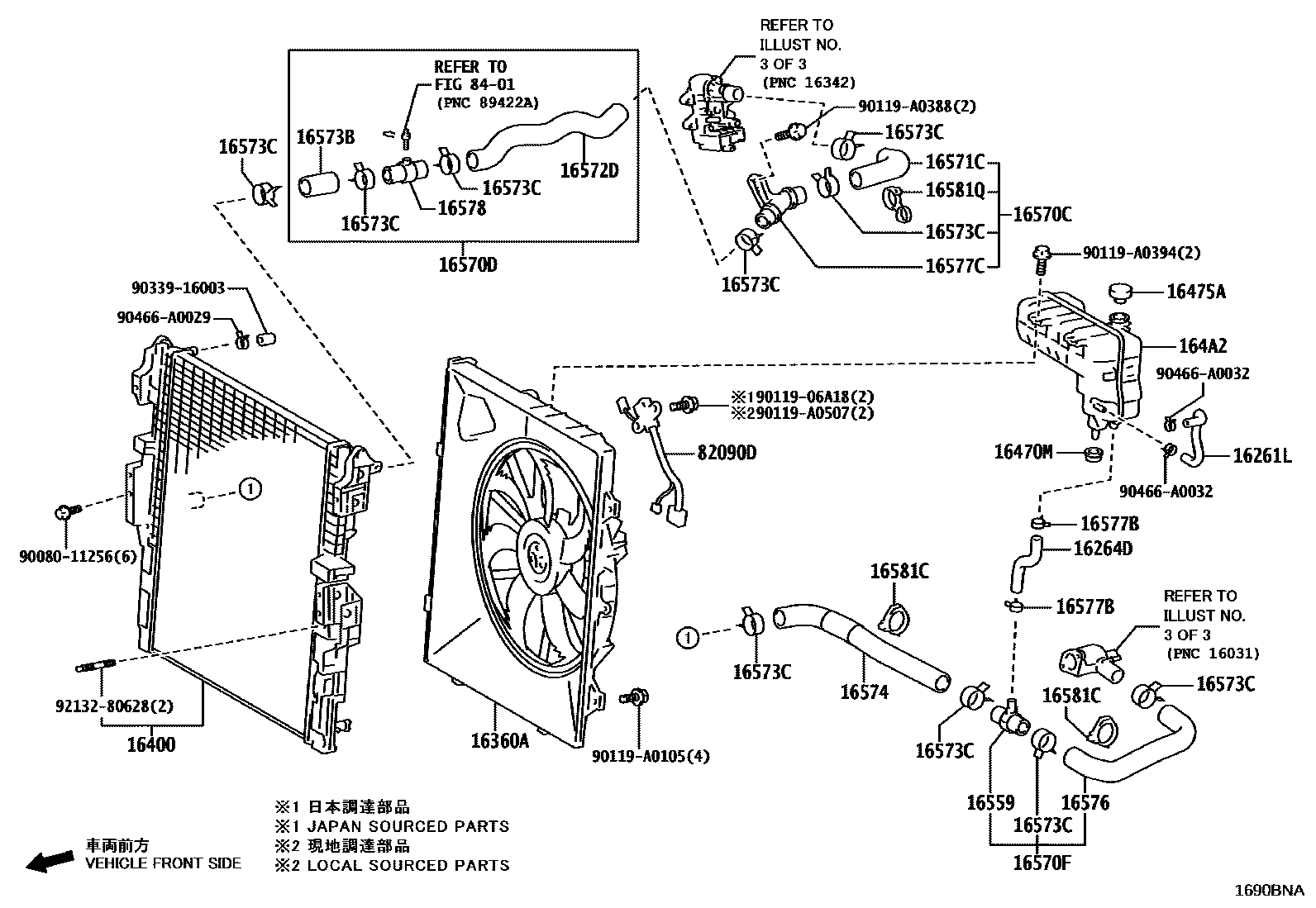

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261LHOSE, WATER BY-PASS
16264HOSE, WATER BY-PASS, NO.2
16264DHOSE, WATER BY-PASS, NO.2
16360AFAN ASSY, W/MOTOR
16400RADIATOR ASSY
16470MGROMMET
16475ACAP, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16559PIPE, RADIATOR, NO.4
16570CPIPE ASSY, RADIATOR, NO.1
16570DPIPE ASSY, RADIATOR, NO.2
16570FPIPE ASSY, RADIATOR, NO.4
16571CHOSE, RADIATOR, NO.1
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
TRD OFFROAD PACKAGE
LIMITED PACKAGE
TRD SPORT PACKAGE
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
LIMITED PACKAGE
TRD OFFROAD PACKAGE
TRD SPORT PACKAGE
MEXICO SPEC
16576HOSE, RADIATOR, NO.6
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
MEXICO SPEC&TRD SPORT PACKAGE
LIMITED PACKAGE
TRD OFFROAD PACKAGE
TRD SPORT PACKAGE
16577CPIPE, RADIATOR
16578PIPE, RADIATOR, NO.2
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16581QCLAMP, HOSE(FOR RADIATOR HOSE NO.1)
82090DWIRE ASSY, EXTENSION
8401
9008011256
main90080-11256
9011906A18
90119A0105
main90119-A0105
90119A0388
main90119-A0388
90119A0394
main90119-A0394
90119A0507
main90119-A0507
9033916003
90466A0029
main90466-A0029
90466A0032
main90466-A0032
9213280628
36 parts on this diagram · 10 diagrams in section
