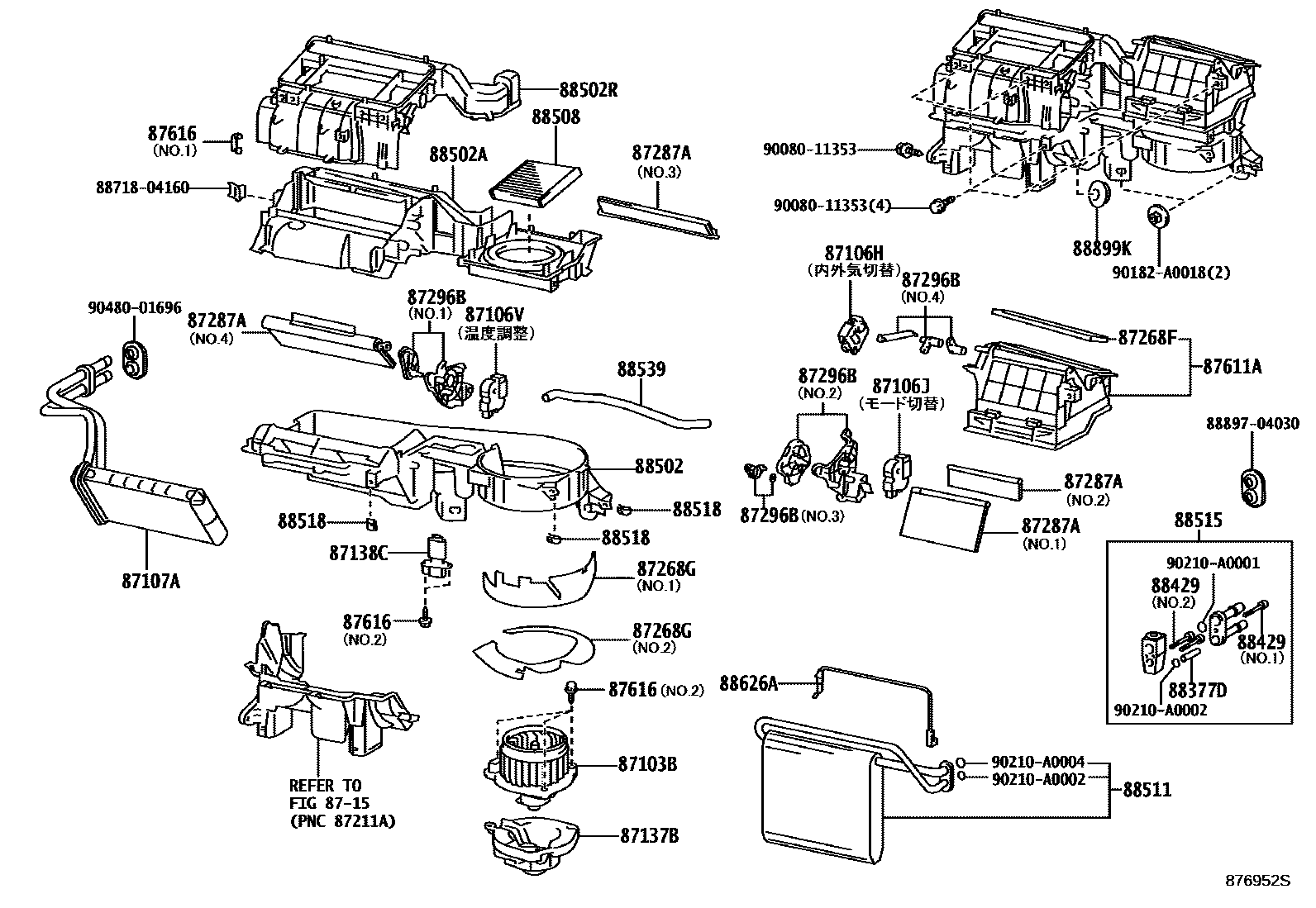

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1W(AIR CONDITIONER) 0002 1W/O(AIR CONDITIONER) 0003 1 0004 1AUTO AIR CONDITIONER 0005 1MANUAL AIR CONDITIONER

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-04040iGRN225,245,250,265,270,TRN22#,24#,26#200409-200909

sub87103-04041

main87103-04041iGRN265,TRN26#..5F,6F200909-201012

sub87103-04042

main87103-04042iGRN225,245,250,265,270,TRN22#,24#,265201101-201109

sub87103-04043

main87103-04043iGRN225,245,250,265,270,TRN22#,24#,265201109-201406

sub87103-04044

main87103-04044iTRN220,240201407-201508

main87103-04050iGRN305,310,325,330,TRN245,265201508-201909

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-04040iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-04050iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main87106-04050iGRN265,TRN22#,24#,26#..4FC,5F,6F200805-201006

AIR CONDITIONER-WITH

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-04050iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

main87106-04060iGRN265..6F200805-201006

AIR CONDITIONER-WITH

main87106-04060iGRN265..5FC;TRN225..DCB;GRN225,245,250,270,TRN24#,265..4FC,5FC,6F200805-201508

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-04060iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main87107-04070iGRN305,310,325,330,TRN245,265201508-201909

87137BCOVER, HEATER BLOWER

main87137-04070iTRN22#,24#,26#201003-201006

main87137-04090iGRN305,310,325,330,TRN245,265201508-201909

87138CRESISTOR, BLOWER

main87138-04050iGRN225,245,250,265,270,TRN22#,24#,26#200409-201001

sub87138-04052

main87138-04052iTRN26#200907-201809

sub87138-04070

sub82141-04Q80

main87138-04070iGRN305,310,325,330,TRN245,265..SR5201809-202009

8715

87268FPROTECTOR, EVAPORATOR, NO.1

main87268-04040iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

87268GPROTECTOR, EVAPORATOR, NO.2

main87268-04050iTRN22#,24#,26#201003-201006

NO.1

main87268-04060iTRN22#,24#,26#201003-201006

NO.2

87287ADAMPER, HEATER AIR

main87287-04010iGRN265,TRN26#..5F,6F200409-201508

NO.1

main87287-04020iTRN220,240200409-201508

NO.2

main87287-04030iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

NO.3

main87287-04040iGRN225,245,250,265,270,TRN225,245,265200409-201508

NO.4

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-04010iTRN22#,24#,26#200409-201006

NO.1

main87296-04011iTRN22#,24#,26#200805-201006

AIR CONDITIONER-WITH,NO.1

main87296-04011iGRN265..6F200805-201508

NO.1

main87296-04020iTRN220,240200409-201508

NO.2

main87296-04030iGRN265,TRN26#..5F,6F200409-201508

NO.3

main87296-04040iGRN225,245,250,265,270,TRN225,245,265200409-201508

NO.4

87611ACASE, HEAT EXCHANGER

main87611-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201011

sub87611-04011

sub88502-04101

main87611-04011iGRN225,245,250,265,270,TRN22#,24#,265201011-201508

main87611-04020iTRN245,265201508-202009

main87611-04030iGRN305,310..SR5201508-201909

NEW CALEDONIA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87611-04030iGRN305,310,325,330..LIMD201508-201909

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87611-04030iGRN305,310,325,330..LIMD201508-201909

MEXICO SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87611-04030iGRN305,310,325,330..LIMD201909

87616CLAMP, COOLING UNIT CASE

main87616-01020iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

NO.1

main87616-04040iTRN22#,24#,26#201003-201006

AIR CONDITIONER-WITH,NO.2

main87616-04040iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

NO.2

main87616-04040iGRN245..6F;GRN225,250,TRN245;GRN245,TRN225..LCB..(4FC,5F,5FC)201006-201109

CANADA SPEC,NO.2

88377DFILTER,REFRIGERANT

main88377-04010iGRN225,245,250,265,270200409-201006

AIR CONDITIONER-WITH

main88377-04010iGRN265..5FC;TRN225..DCB;GRN225,245,250,270,TRN24#,265..4FC,5FC,6F200805-201508

88429HOLDER, EXPANSION VALVE

main88429-04010iGRN225,245,250,265,270,TRN225,245,265200409-201508

NO.1

main88429-04010iGRN225,245,250,265,270200409-201006

AIR CONDITIONER-WITH,NO.1

main88429-04020iGRN225,245,250,265,270200409-201006

AIR CONDITIONER-WITH,NO.2

main88429-04020iTRN220,240200409-201508

NO.2

88502CASE SUB-ASSY, COOLING UNIT

main88502-04080iGRN245,250,265,270,TRN225,265..DCB200409-201508

main88502-04090iGRN265,TRN26#..5F,6F200409-201508

main88502-04160iTRN245,265..LCB201508-202009

main88502-04170iTRN265..DCB201508-202009

main88502-04180iGRN305,325..LCB202009

main88502-04190iGRN305,325..DCB..6FC..SR5201508-201909

MEXICO SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04190iGRN305,310,325,330..LIMD201508-201909

NEW CALEDONIA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04190iGRN305,310,325,330..LIMD201508-201909

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04190iGRN305,310,325,330..LIMD201909

88502ACASE SUB-ASSY, COOLING UNIT

main88502-04100iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201101

main88502-04101iTRN220,240201109-201508

main88502-04140iGRN305,310,325,330,TRN245,265..SR5201508-202009

main88502-04150iGRN305,310,325,330..LIMD201508-201909

MEXICO SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04150iGRN305,310,325,330..LIMD201508-201909

NEW CALEDONIA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04150iGRN305,310,325,330..LIMD201508-201909

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04150iGRN305,310,325,330..LIMD201909

88502RCASE SUB-ASSY, COOLING UNIT

main88502-04110iGRN225,245,250,265,270,TRN22#,24#,26#200409-200507

sub88502-04111

main88502-04111iTRN220,240200508-201508

main88502-04120iGRN305,310,325,330,TRN245,265..SR5201508-202009

main88502-04130iGRN305,310,325,330..SR5201508-201909

NEW CALEDONIA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04130iGRN305,310,325,330..SR5201508-201909

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04130iGRN305,310,325,330..LIMD201508-201909

MEXICO SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88502-04130iGRN305,310,325,330..LIMD201909

88508FILTER SUB-ASSY, CLEAN AIR

main88508-01010iGRN265,TRN26#..5F,6F200508-201508

main88508-01010iGRN305,310,325,330,TRN245,265201508-201909

STANDARD

main88508-04010iGRN305,310,325,330,TRN245,265201508-201909

DEODORANT FILTER

88511CORE, EVAPORATOR

main88511-04010iTRN22#,24#,26#200409-201006

AIR CONDITIONER-WITH

main88511-04010iGRN265..5FC;TRN225..DCB;GRN225,245,250,270,TRN24#,265..4FC,5FC,6F200805-201508

main88511-04020iGRN305,310,325,330,TRN245,265201508-201909

88515VALVE, COOLER EXPANSION

main88515-04060iGRN225,245,250,265,270200409-201006

AIR CONDITIONER-WITH

main88515-04060iGRN265..5FC;TRN225..DCB;GRN225,245,250,270,TRN24#,265..4FC,5FC,6F200805-201508

88518HOLDER, COOLING UNIT DOOR

main88518-04010iTRN220,240200409-201508

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-04040iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201909

88626AHOLDER, THERMISTOR

main88626-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

88899KPLATE, COVER

main88899-3A010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

8871804160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-04160

8889704030VALVE, COOLER MAGNET

main88897-04030

9008011353

main90080-11353

90182A0018

main90182-A0018

90210A0001

main90210-A0001

90210A0002

main90210-A0002

90210A0004

main90210-A0004

9048001696

main90480-01696

34 parts on this diagram · 5 diagrams in section
