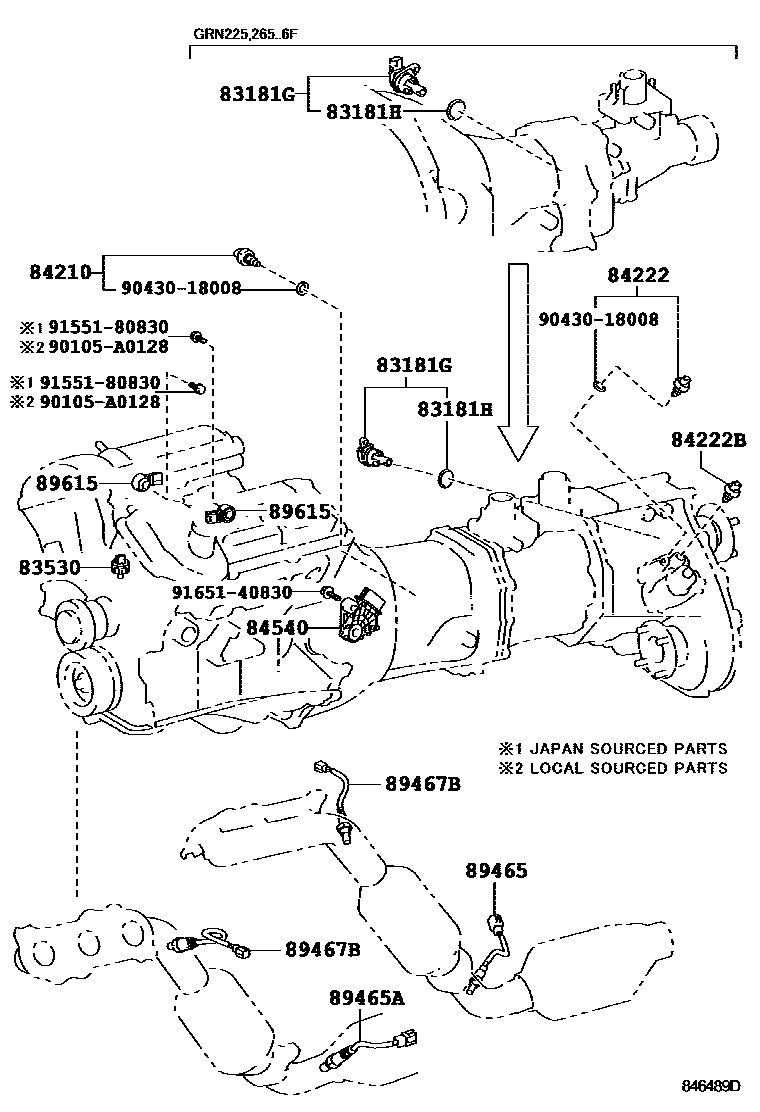

83181GSENSOR, SPEEDOMETER

main83181-12020iGRN245,TRN22#,24#..5F,6F200409-201109

main83181-24070iGRN225,265..6F200409-201508

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iGRN225,245,TRN22#,24#..5F,6F200409-201508

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iGRN305,310,325,330,TRN245,265201204-201909

(L)

main83530-28020iGRN225,245,250,265,270,TRN225,245,265201109-201909

(J),DENSO

main83530-28020iGRN225,245,250,265,270,TRN22#,24#,26#200409-201104

main83530-28020iGRN225,245,250,265,270,TRN22#,24#,265201104-201109

DENSO

main83530-60020iGRN305,310,325,330,TRN245,265201109-201909

(J),YAZAKI

main83530-60020iGRN305,310,325,330,TRN245,265201909

(J)

main83530-60020iGRN225,245,250,265,270,TRN22#,24#,265201104-201109

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201206

sub84210-52050

main84210-52050iTRN220,240..5F201206-201711

main84210-71050iGRN305..6F201508-201909

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iGRN245,250,TRN24#200409-201508

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35121iGRN245,250,TRN24#200409-201508

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRN245,250,265,270..5FC200409-201508

main84540-04020iGRN305,310,325,330,TRN245,265..6FC201508-202011

sub84540-04021

main84540-04021iGRN325,330,TRN245,265202012

(L)

main84540-35050iTRN22#,24#,265..4FC200409-201508

main84540-35061iGRN305,310..6FC202012

(J)

89465SENSOR, OXYGEN

main89465-04270iTRN22#,26#200409-200608

main89465-04280iTRN24#200409-200608

main89465-04290iGRN225,245,250,265,270200409-200608

main89465-04320iTRN26#200608-201208

main89465-04330iTRN24#200608-201208

main89465-04340iGRN225,245,250,265,270200608-201109

main89465-04360iTRN24#..4FC201006-201208

main89465-04420iGRN305,310,325,330201508-201909

main89465-04450iTRN265201508-201909

main89465-04460iTRN245201508-201909

main89465-04480iTRN225,265201502-201508

main89465-04490iGRN225,245,250,265,270201502-201508

main89465-04510iTRN245..5F201502-201508

main89465-04520iTRN245..4FC201502-201508

main89465-35650iTRN220201208-201501

main89465-35730iGRN225,245,250,265,270201109-201501

main89465-35750iTRN240..5F201208-201501

main89465-35760iTRN245..4FC201208-201501

89465ASENSOR, OXYGEN NO.2

main89465-04300iGRN225,245,250,265,270200409-200608

main89465-04350iGRN225,245,250,265,270200608-201109

main89465-04430iGRN305,310,325,330..6FC201508-201909

main89465-04440iGRN305..6F201508-201909

main89465-04500iGRN225,245,250,265,270201502-201508

main89465-35740iGRN225,245,250,265,270201109-201501

89467BSENSOR, AIR FUEL RATIO

main89467-04010iTRN22#,24#..5F200409-201208

main89467-04020iGRN225,245,250,265,270200409-200707

main89467-04040iGRN265..5FC;GRN225,245,250,270200805-201109

LH

main89467-04050iGRN265..6F200805-201109

RH

main89467-04060iGRN225,245,250,265,270200708-200805

main89467-04070iTRN22#,24#,265..4FC201006-201208

main89467-04080iTRN220,240201208-201508

main89467-04090iGRN225,245,250,265,270201208-201408

RH & LH

main89467-04120iGRN305,310,325,330201508-201909

LH

main89467-04130iGRN305,310,325,330201508-201909

RH

main89467-04140iTRN245,265201508-201909

main89467-0C060iGRN225,245,250,265,270201408-201508

RH & LH

main89467-34030iGRN225,245,250,265,270201109-201208

RH & LH

89615SENSOR, KNOCK CONTROL

main89615-06010iGRN225,245,250,265,270201008-201909

(L)

main89615-06010iGRN225,245,250,265,270201109-201508

main89615-20090iGRN265..6F200409-201508

main89615-20090iGRN225,245,250,265,270201008-201909

(J)

90105A0128

main90105-A0128

9043018008

main90430-18008

9155180830

main91551-80830

9165140830

main91651-40830

15 parts on this diagram · 31 diagrams in section
