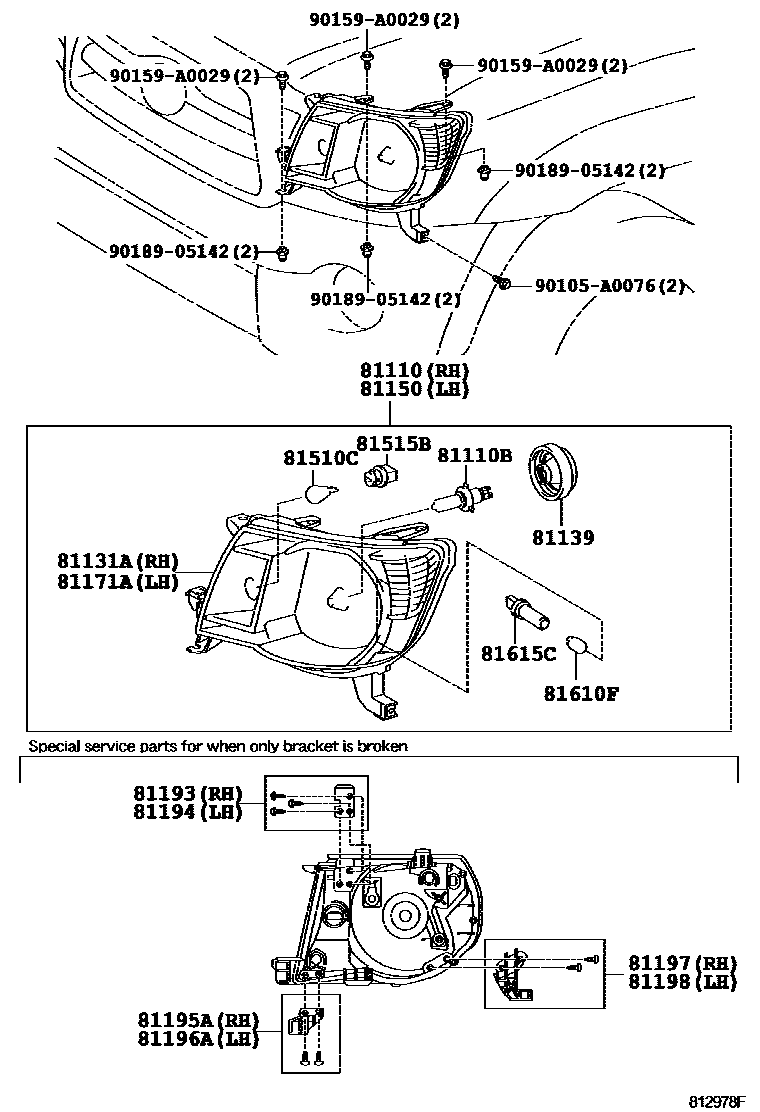

HEADLAMP
81110HEADLAMP ASSY, RH
sub81110-04162
sub81110-04163
WITH(*FTP & *EUC:PNC51405A & 51406A)
SPORT PACKAGE
sub81110-04181
TRD-PRO PACKAGE
YOUTH PACKAGE
B-MAX PACKAGE&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
SR PACKAGE&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
B-MAX PACKAGE&HEADLAMP-HALOGEN(CHROME BEZEL)&WITH(PARKING BULB)
SR PACKAGE&HEADLAMP-HALOGEN(CHROME BEZEL)&WITH(PARKING BULB)
HEADLAMP-HALOGEN(CHROME BEZEL)&WITH(PARKING BULB)
HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
B-MAX PACKAGE&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
SR PACKAGE&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
HEADLAMP-HALOGEN & WITHOUT(PARKING BULB)
HEADLAMP-CHROME BEZEL & *DRL(LED TYPE)
HEADLAMP-HALOGEN & WITHOUT(PARKING BULB)
HEADLAMP-BLACK BEZEL & *DRL(LED TYPE)
HEADLAMP-HALOGEN(BLACK BEZEL) & W/O(PARKING BULB)
HEADLAMP-LED
HEADLAMP-LED(TRD PRO)
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN
12V 60/55W,HALOGEN,WITH(*FTP & *EUC:PNC51405A & 51406A)
12V 65W,HALOGEN
81131AUNIT, HEADLAMP, RH
sub81130-04162
sub81130-04163
WITH(*FTP & *EUC:PNC51405A & 51406A)
SPORT PACKAGE
81139COVER, HEADLAMP SOCKET
WITH(*FTP & *EUC:PNC51405A & 51406A)
81150HEADLAMP ASSY, LH
sub81150-04162
sub81150-04163
SPORT PACKAGE
WITH(*FTP & *EUC:PNC51405A & 51406A)
sub81150-04181
YOUTH PACKAGE
TRD-PRO PACKAGE
HEADLAMP-HALOGEN(CHROME BEZEL)&WITH(PARKING BULB)
B-MAX PACKAGE&HEADLAMP-HALOGEN(CHROME BEZEL)&WITH(PARKING BULB)
SR PACKAGE&HEADLAMP-HALOGEN(CHROME BEZEL)&WITH(PARKING BULB)
B-MAX PACKAGE&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
SR PACKAGE&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
SR PACKAGE&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
B-MAX PACKAGE&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
HEADLAMP-HALOGEN & WITHOUT(PARKING BULB)
HEADLAMP-HALOGEN & WITHOUT(PARKING BULB)
HEADLAMP-CHROME BEZEL & *DRL(LED TYPE)
HEADLAMP-HALOGEN(BLACK BEZEL) & W/O(PARKING BULB)
HEADLAMP-BLACK BEZEL & *DRL(LED TYPE)
HEADLAMP-LED
HEADLAMP-LED(TRD PRO)
81171AUNIT, HEADLAMP, LH
sub81170-04162
sub81170-04163
SPORT PACKAGE
WITH(*FTP & *EUC:PNC51405A & 51406A)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 27/8W
12V 27/8W,WITH(*FTP & *EUC:PNC51405A & 51406A)
12V 21W,AMBER,HEADLAMP-BLACK BEZEL & *DRL(LED TYPE)
12V 21W,AMBER
12V 21W,AMBER,HEADLAMP-HALOGEN & WITHOUT(PARKING BULB)
12V 21W,AMBER,HEADLAMP-HALOGEN(BLACK BEZEL) & W/O(PARKING BULB)
12V 21W,AMBER,HEADLAMP-CHROME BEZEL & *DRL(LED TYPE)
81515BSOCKET, FRONT TURN SIGNAL LAMP
HEADLAMP-HALOGEN & WITHOUT(PARKING BULB)
HEADLAMP-HALOGEN & WITHOUT(PARKING BULB)
HEADLAMP-HALOGEN(BLACK BEZEL) & W/O(PARKING BULB)
HEADLAMP-CHROME BEZEL & *DRL(LED TYPE)
HEADLAMP-BLACK BEZEL & *DRL(LED TYPE)
WITH(*FTP & *EUC:PNC51405A & 51406A)
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
12V 5W,WITH(*FTP & *EUC:PNC51405A & 51406A)
81615CSOCKET & WIRE, CLEARANCE LAMP
WITH(*FTP & *EUC:PNC51405A & 51406A)
90105A0076
main90105-A0076
90159A0029
main90159-A0029
9018905142
main90189-05142
19 parts on this diagram · 4 diagrams in section
