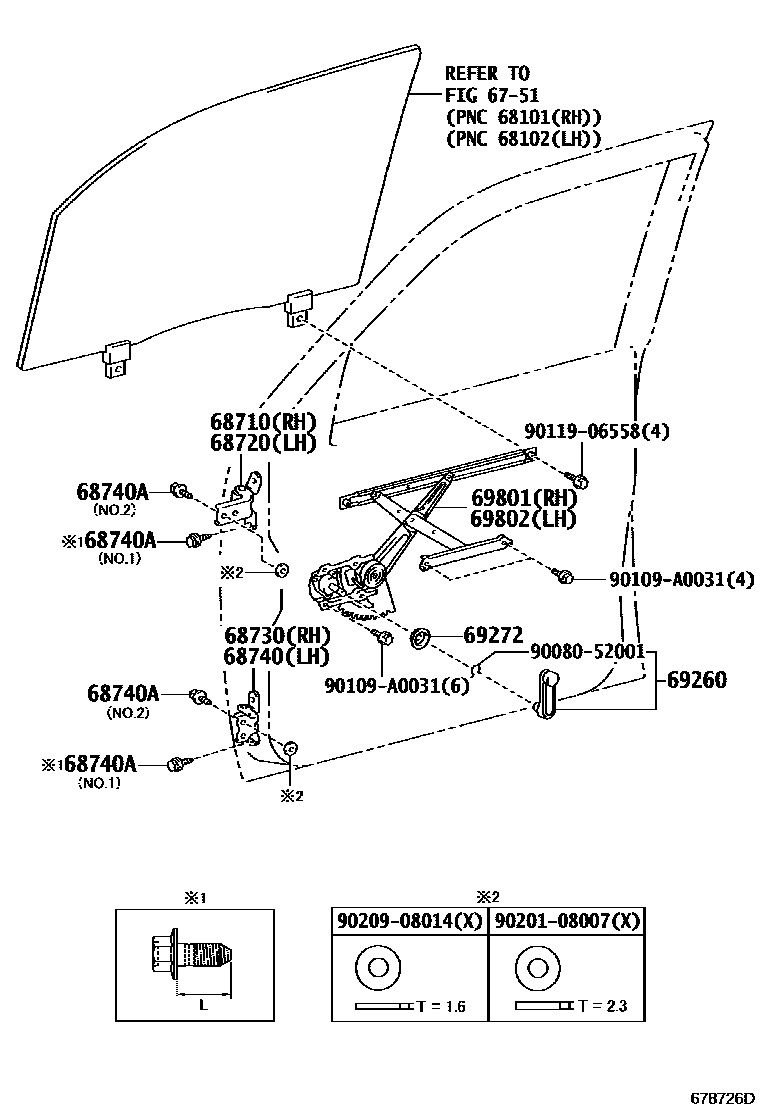

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1MANUAL WINDOW 0002 1POWER WINDOW

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iGRN265,TRN26#..5F,6F200805-201006

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iGRN305,310,325,330,TRN245,265201909

68740ABOLT(FOR FRONT DOOR HINGE)

main90080-10212×8iTRN24#..5F;TRN225..LCB;GRN225,245,250,265,270,TRN220201006-201109

NO.1,L=20

main90105-A0235×8iGRN305,310,325,330,TRN245,265201508-201711

NO.2,TYPE A:REF ILL.

main90105-A0260×8iGRN305,310,325,330,TRN245,265201508-201711

NO.1

main90105-A0282×8iGRN305,310,325,330,TRN245,265202006

NO.1

main90119-A0130×8iGRN225,245,250,265,270,TRN22#,24#,265201109-201508

NO.2

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-AA010-B5×2iGRN245,265,TRN22#,24#,26#..LCB,RCB200409-200805

QUICK ORDER PACKAGE,GRAY,TRIM1#

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-03010×2iGRN245,265,TRN22#,24#,26#..LCB,RCB200409-200805

QUICK ORDER PACKAGE

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02300iGRN305,310,325,330,TRN245,265201909

main69801-04040iGRN265,TRN265..5F,6F200805-201006

main69810-04090iGRN245,265,TRN22#,24#,26#..LCB,RCB200409-200805

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02310iGRN305,310,325,330,TRN245,265201909

main69802-04040iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245200805-201109

main69820-04090iTRN220,240201109-201408

9008052001

main90080-52001

90109A0031

main90109-A0031

9011906558

main90119-06558

9020108007

main90201-08007

9020908014

main90209-08014

15 parts on this diagram · 2 diagrams in section
