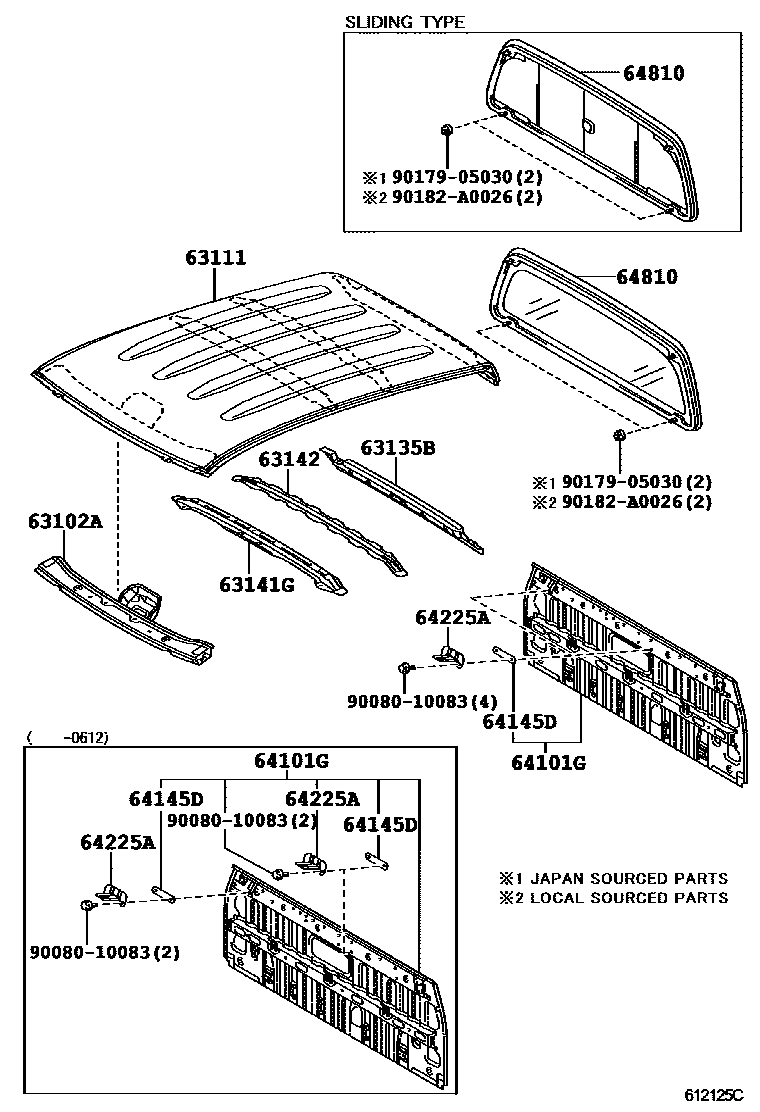

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1PANEL & BACK PANEL 0005 1BACK WINDOW 0006 1HOUSING(MOON ROOF) 0007 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-04080iTRN220,240200409-201408

main63102-04090iGRN225,245,250,265,270,TRN225,245,265200409-201508

main63102-04100iGRN305,310,325,330,TRN245,265..SR5201508-201909

main63102-04110iGRN305,310,325,330..DCB..SR5201508-201909

MOON ROOF-WITH

63111PANEL, ROOF

main63111-04090iTRN220,240,260200409-200905

sub63111-04091

main63111-04091iTRN220,240200906-201408

main63111-04100iGRN225,245,265,TRN225,245,265..LCB200409-200805

sub63111-04140

main63111-04110iGRN245,250,265,270..DCB200409-200805

sub63111-04150

main63111-04120iGRN225,245,265,TRN225,245,265..LCB200805-200907

sub63111-04121

main63111-04121iGRN225,245,265,TRN225,245,265..LCB200908-201006

sub63111-04122

sub86960-04030

main63111-04122iGRN245,265,TRN225,245,265..LCB201109-201208

AUDIO-USB & SDARS & *BT & 6SPEAKER

main63111-04122iGRN225201109-201208

AUDIO-USB & SDARS & *BT & 6SPEAKER W(WOOFER)

main63111-04122iGRN225201309-201508

AUDIO-*DA & *BT & EXTENSION BOX & 6SPEAKER

main63111-04122iGRN225201309-201508

AUDIO-AVN & *BT & EXTENSION BOX & W(WOOFER)

main63111-04122iGRN225201309-201508

AUDIO-AVN & *BT & EXTENSION BOX & 6SPEAKER

main63111-04130iGRN245,250,265,270..DCB200805-200905

sub63111-04131

main63111-04131iGRN245,250,265,270..DCB200906-201006

sub63111-04132

sub86960-04030

main63111-04132iGRN245,250,265,270..DCB..5FC201109-201208

HAWAII SPEC&AUDIO-*DA & JBL & W(WOOFER)

main63111-04132iGRN245,250,265,270,TRN225,265..DCB201109-201208

PUERTO RICO SPEC&AUDIO-*DA & JBL & W(WOOFER)

main63111-04140iGRN225201006-201508

main63111-04150iGRN245,250,265,270,TRN225,265..DCB201006-201508

main63111-04180iGRN305,325,TRN245,265..LCB201909

main63111-04190iGRN305,310,325,330,TRN265..DCB..SR5201508-201909

main63111-04200iGRN305,310,325,330..LIMD201508-201909

MOON ROOF-WITH

main63111-04210iGRN305,325,TRN245,265..LCB201508-201909

main63111-04220iGRN305,310,325,330,TRN265..DCB..SR5201909-202001

sub63111-04221

main63111-04221iGRN305,310,325,330,TRN265..DCB..SR5202002

main63111-04230iGRN305,310,325,330..LIMD201909-202001

MOON ROOF-WITH

sub63111-04231

main63111-04231iGRN305,310,325,330..DCB..SR5202002

MOON ROOF-WITH

63135BPANEL, BACK WINDOW, UPPER INNER

main63105-04100iGRN305,310,325,330,TRN245,265201508-201909

main63135-04050iGRN225,245,250,265,270,TRN225,245,265200409-200505

sub63135-04051

main63135-04051iGRN225,245,250,265,270,TRN225,245,265200506-200508

main63135-04060iGRN225,245,250,265,270,TRN225,245,265200508-200804

sub63135-04061

main63135-04061iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201010

sub63135-04062

main63135-04062iGRN225,245,250,265,270,TRN22#,24#,265201011-201508

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63123-04010iGRN305,310,325,330,TRN265..DCB..SR5201508-201909

main63141-04020iGRN225,245,250,265,270,TRN225,245,265200409-201508

main63142-04020iGRN305,310,325,330..DCB..SR5201508-201909

MOON ROOF-WITH

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-04010iGRN245,250,265,270..DCB200409-201508

64101GPANEL SUB-ASSY, BACK

main64101-04180iTRN220,240,260200409-200804

sub64101-04183

main64101-04182iTRN220;TRN240..5F200805-201012

sub64101-04183

main64101-04183iTRN220;TRN240..5F201101-201408

main64101-04200iGRN225,245,265,TRN225,245,265..LCB200409-200804

main64101-04210iGRN245,250,265,270..DCB200409-200612

sub64101-04211

sub64225-04010

main64101-04211iGRN245,250,265,270..DCB200612-200804

main64101-04213iGRN245,250,265,270,TRN225,265..DCB200805-201012

sub64101-04214

main64101-04214iGRN245,250,265,270,TRN225,265..DCB201101-201508

main64101-04220iGRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)200805-201012

sub64101-04221

main64101-04221iGRN225,245,265,TRN225,245,265..LCB201101-201109

main64101-04230iTRN240..4FC201006-201012

sub64101-04231

main64101-04231iTRN240..4FC201101-201408

main64101-04240iGRN225,245,265,TRN225,245,265..LCB201109-201508

main64101-04250iGRN305,325,TRN245,265..LCB201508-201608

sub64101-04320

main64101-04251iGRN305,325,TRN245,265..LCB201608-201811

sub64101-04252

main64101-04252iGRN305,325,TRN245,265..LCB201812-201909

main64101-04260iGRN305,310,325,330,TRN265..DCB201508-201608

main64101-04261iGRN305,310,325,330,TRN265..DCB..SR5201608-201811

sub64101-04262

main64101-04262iGRN305,310,325,330,TRN265..DCB..SR5201812-201909

main64101-04291iGRN305,310,325,330..DCB..SR5201608-201811

BACK GLASS-SLIDING TYPE(POWER,PRIVACY)

sub64101-04292

main64101-04292iGRN305,310,325,330..LIMD201812-201909

BACK GLASS-SLIDING TYPE(POWER,PRIVACY)

main64101-04301iGRN305,310,325,330,TRN265..DCB..SR5201909

main64101-04311iGRN305,310,325,330..LIMD201909

BACK GLASS-SLIDING TYPE(POWER, PRIVACY)

main64101-04320iGRN305,325,TRN245,265..LCB201909

64145DBRACKET, REAR SEATBACK SET

main64145-04010iGRN245,250,265,270..DCB200409-201909

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64225-04010iGRN245,250,265,270..DCB200409-201006

sub64225-04030

main64225-04030iGRN245,250,265,270,TRN225,265..DCB201006-201909

64810WINDOW ASSY, BACK

main64810-04060iGRN245,250,265,270,TRN22#,24#,26#200409-201508

main64810-04080iGRN225200409-200507

BACK GLASS-SLIDING TYPE(PRIVACY)

sub64810-04081

main64810-04081iGRN225200508-200707

BACK GLASS-SLIDING TYPE(PRIVACY)

sub64810-04082

main64810-04082iGRN245,250,265,270,TRN225,245,265200708-200805

BACK GLASS-SLIDING TYPE(PRIVACY)

sub64810-04083

main64810-04083iGRN245,250,265,270,TRN225,245,265200805-201005

CONVINIENCE PACKAGE

sub64810-04084

main64810-04084iGRN245,250,265,270,TRN225,245,265201006-201508

CONVINIENCE PACKAGE

sub64810-04111

main64810-04111iGRN305,310,325,330..LIMD201508-201909

main64810-04130iGRN305,310,325,330..LIMD201608-201811

BACK GLASS-SLIDING TYPE(POWER,PRIVACY)

sub64810-04131

main64810-04131iGRN305,310,325,330..DCB..SR5201812-201909

BACK GLASS-SLIDING TYPE(POWER,PRIVACY)

main64810-04131iGRN305,310,325,330..DCB..SR5201909

BACK GLASS-SLIDING TYPE(POWER, PRIVACY)

9008010083

main90080-10083

9017905030

main90179-05030

90182A0026

main90182-A0026

12 parts on this diagram · 7 diagrams in section
