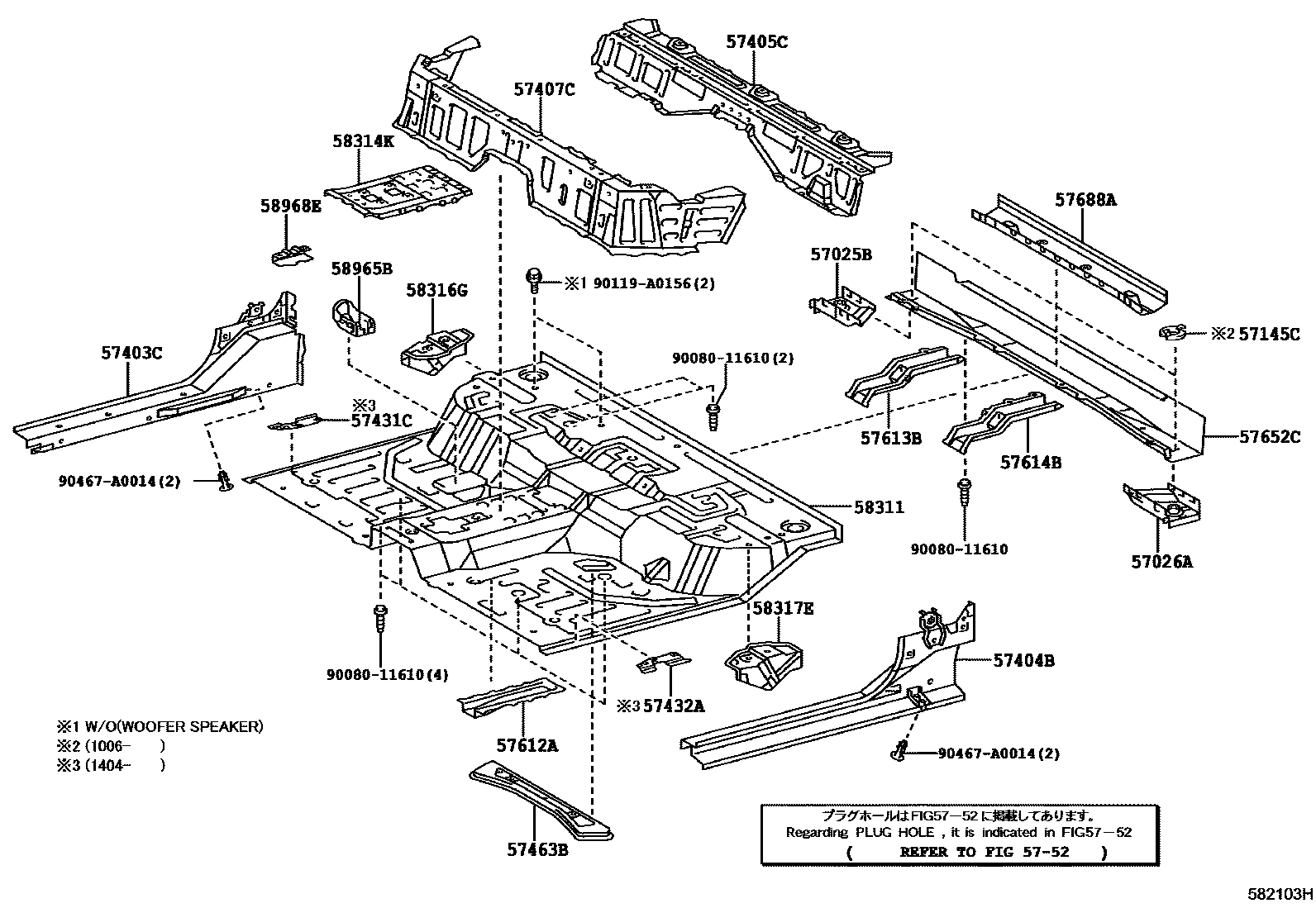

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

57025BBRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH

main57025-04010iGRN245,250,265,270..DCB200409-201508

main57025-04020iTRN220,240,260200409-201005

sub57025-04021

main57025-04021iTRN220,240201006-201408

main57025-04030iGRN225,245,265,TRN225,245,265..LCB200409-201508

main57025-04041iGRN305,310,325,330,TRN265..DCB201508-201909

main57025-04051iGRN305,325,TRN245,265..LCB201508-201909

57026ABRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH

main57026-04010iGRN245,250,265,270,TRN225,265..DCB200409-201508

main57026-04020iTRN220,240,260200409-201005

sub57026-04021

main57026-04021iTRN220,240201006-201408

main57026-04030iGRN265,TRN265..5F,6F200409-201508

main57026-04041iGRN305,310,325,330,TRN265..DCB201508-201909

main57026-04051iGRN305,325,TRN245,265..LCB201508-201909

57145CSTOPPER, MOUNTING BOLT, NO.1

main57145-04020iGRN225,245,250,265,270,TRN225,245,265201006-201508

main57145-04030iGRN305,310,325,330,TRN245,265201508-201909

57403CREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-04010iGRN225,245,265,TRN225,245,265..LCB200409-200803

main57403-04011iGRN225,245,265,TRN225,245,265..LCB200803-201508

main57403-04020iGRN245,250,265,270,TRN225,265..DCB200409-201508

main57403-04030iGRN305,325,TRN245,265..LCB201508-201909

main57403-04040iGRN305,310,325,330,TRN265..DCB201508-201909

57404BREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-04010iGRN225,245,265,TRN225,245,265..LCB200409-200803

main57404-04011iGRN225,245,265,TRN225,245,265..LCB200803-201508

main57404-04020iGRN245,250,265,270,TRN225,265..DCB200409-201508

main57404-04030iGRN305,325,TRN245,265..LCB201508-201909

main57404-04040iGRN305,310,325,330,TRN265..DCB201508-201909

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-04010iGRN245,250,265,270,TRN225,265..DCB200409-201711

main57405-04020iGRN305,310,325,330,TRN265..DCB201711-201909

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-04010iGRN225,245,265,TRN225,245,265..LCB200409-201501

sub57407-04011

main57407-04011iGRN305,325,TRN245,265..LCB201502-201909

main57407-04020iGRN245,250,265,270,TRN225,265..DCB200409-201711

main57407-04050iGRN305,310,325,330,TRN265..DCB201711-201909

57431CREINFORCEMENT, CENTER FLOOR, NO.1 RH

main57431-04010iGRN245,250,265,270,TRN225,265..DCB201404-201909

57432AREINFORCEMENT, CENTER FLOOR, NO.1 LH

main57432-04010iGRN305,310,325,330,TRN265..DCB201404-201909

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57463-04010iGRN225,245,265,TRN225,245,265..LCB200409-201909

5752

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-04010iGRN265,TRN265..5F,6F200409-201909

57613BMEMBER, REAR FLOOR SIDE CENTER, RH

main57606-04010iGRN305,310,325,330,TRN265..DCB200409-201909

57614BMEMBER, REAR FLOOR SIDE, CENTER LH

main57607-04010iGRN245,250,265,270,TRN225,265..DCB200409-201502

sub57607-04020

main57607-04020iGRN305,310,325,330,TRN265..DCB201502-201909

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57608-04021iGRN305,310,325,330,TRN265..DCB201502-201704

sub57608-04022

main57608-04022iGRN305,310,325,330,TRN265..DCB201705-201909

main57652-04080iTRN220,240,260200409-201408

main57652-04100iGRN225,245,265,TRN225,245,265..LCB200409-200708

sub57652-04101

main57652-04101iGRN225,245,265,TRN225,245,265..LCB200708-201501

sub57652-04102

main57652-04102iGRN225,245,265,TRN225,245,265..LCB201502-201704

sub57652-04103

main57652-04103iGRN305,325,TRN245,265..LCB201705-201909

main57652-04110iGRN245,250,265,270,TRN225,265..DCB200409-201406

sub57652-04111

main57652-04111iGRN245,250,265,270,TRN225,265..DCB201407-201501

57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57688-04010iTRN220,240,260200409-201408

main57688-04020iGRN225,245,265,TRN225,245,265..LCB200409-200708

main57688-04030iGRN245,250,265,270,TRN225,265..DCB200409-201508

sub57688-04080

main57688-04080iGRN305,310,325,330,TRN265..DCB201508-201909

58311PAN, REAR FLOOR

main58311-04040iTRN220;TRN240..5F200409-201408

main58311-04050iTRN240..4FC201006-201408

main58311-04060iGRN225,245,265,TRN225,245,265..LCB200409-200708

main58311-04061iGRN225,245,265,TRN225,245,265..LCB200708-200805

main58311-04062iGRN265,TRN265..5F,6F200805-201412

sub58311-04063

main58311-04063iGRN225,245,265,TRN225,245,265..LCB201501-201909

main58311-04070iGRN245,250,265,270,TRN225,265..DCB200409-201404

sub58311-04071

main58311-04071iGRN245,250,265,270,TRN225,265..DCB201404-201412

sub58311-04072

main58311-04072iGRN305,310,325,330,TRN265..DCB201501-201909

58314KPANEL, REAR FLOOR, CENTER

main58314-04010iGRN245,250,265,270..DCB200409-201909

58316GRETAINER, REAR SEAT, NO.1

main58316-04010iGRN245,250,265,270..DCB200409-201406

sub58316-04011

main58316-04011iGRN245,250,265,270,TRN225,265..DCB201407-201508

main58316-04020iGRN305,310,325,330,TRN265..DCB201508-201909

58317ERETAINER, REAR SEAT, NO.2

main58317-04010iGRN245,250,265,270..DCB200409-201406

sub58317-04011

main58317-04011iGRN245,250,265,270,TRN225,265..DCB201407-201508

main58317-04020iGRN305,310,325,330,TRN265..DCB201508-201909

58965BHOLDER, JACK

main58965-04030iGRN225,245,250,265,270,TRN225,245,265201304-201909

main58965-35060iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245200409-201303

sub58965-04030

58968EBRACKET, JACK SUPPORT, NO.2

main58968-04010iGRN225,245,265,TRN225,245,265..LCB200409-201909

9008011610

main90080-11610

90119A0156

main90119-A0156

90467A0014

main90467-A0014

25 parts on this diagram · 4 diagrams in section
