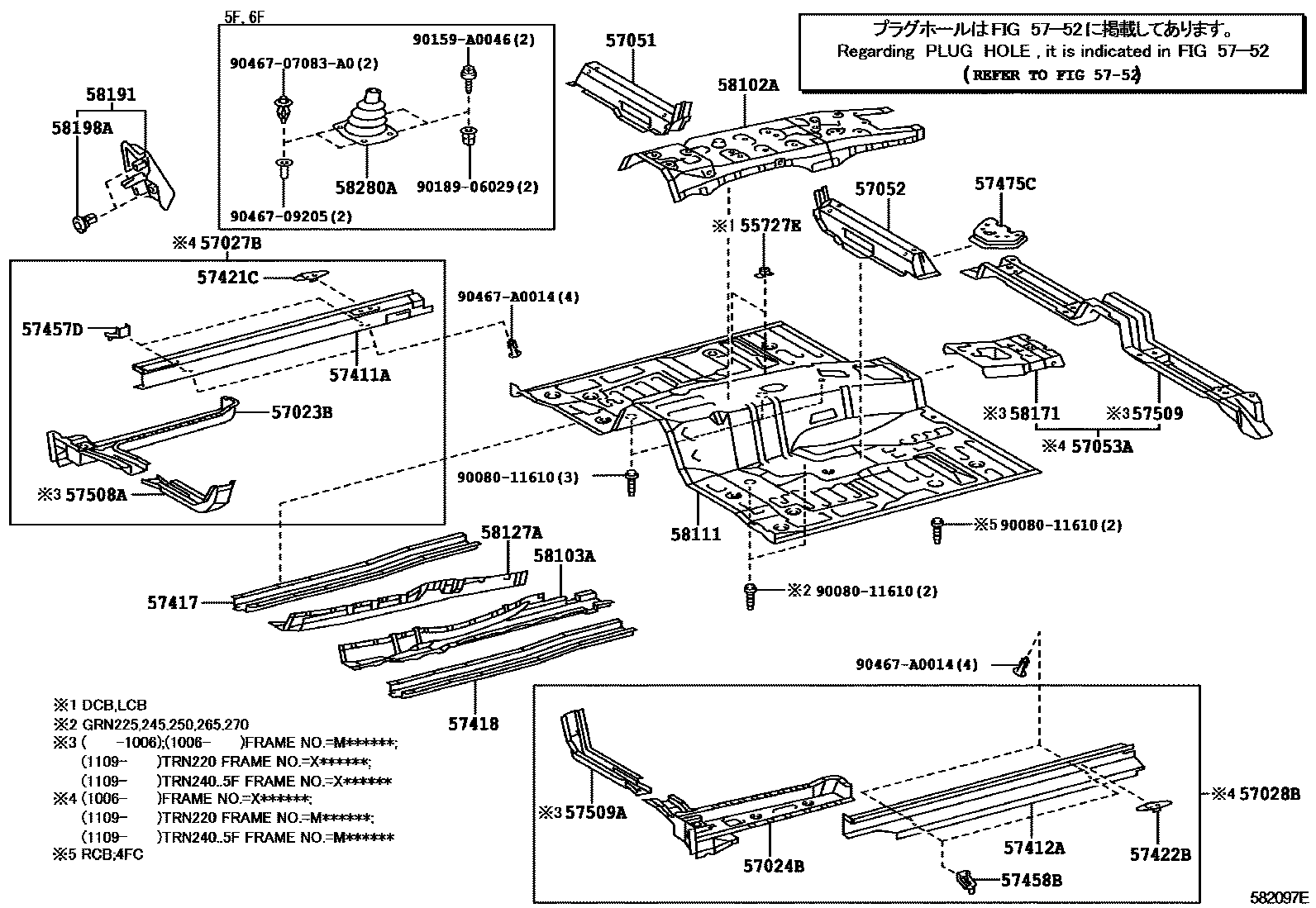

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1SIDE STEP 0003 1

55727ERETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-04010iGRN305,310,325,330,TRN245,265200409-201909

57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main57023-04021iGRN305,310,325,330,TRN245,265201508-201704

sub57023-04022

main57023-04022iGRN305,310,325,330,TRN245,265201705-201909

57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main57024-04021iGRN305,310,325,330,TRN245,265201508-201704

sub57024-04022

main57024-04022iGRN305,310,325,330,TRN245,265201705-201909

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-04010iGRN225,245,250,265,270,TRN22#,24#,265201006-201508

FRAME NO.=X******

main57027-04021iGRN305,310,325,330,TRN245,265201508-201704

FRAME NO.=X******

sub57027-04022

main57027-04022iGRN305,310,325,330,TRN245,265201705-201909

FRAME NO.=X******

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-04010iGRN225,245,250,265,270,TRN22#,24#,265201006-201508

FRAME NO.=X******

main57028-04021iGRN305,310,325,330,TRN245,265201508-201704

FRAME NO.=X******

sub57028-04022

main57028-04022iGRN305,310,325,330,TRN245,265201705-201909

FRAME NO.=X******

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-04110iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main57051-04111iGRN225,245,250,265,270,TRN225,245,265201408-201502

sub57051-04112

main57051-04112iGRN225,245,250,265,270,TRN225,245,265201502-201508

main57051-04130iGRN305,310,325,330,TRN245,265201508-201909

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-04090iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main57052-04091iGRN225,245,250,265,270,TRN225,245,265201408-201502

sub57052-04092

main57052-04092iGRN225,245,250,265,270,TRN225,245,265201502-201508

main57052-04100iGRN305,310,325,330,TRN245,265201508-201909

57053AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER

main57053-04010iTRN220;TRN240..5F201006-201109

FRAME NO.=X******

main57053-04010iTRN220;TRN240..5F201109-201408

main57053-04020iTRN240..4FC;GRN225,245,250,265,270,TRN225,245,265201006-201412

FRAME NO.=X******

sub57053-04021

main57053-04021iGRN225,245,250,265,270,TRN225,245,265201501-201508

FRAME NO.=X******

main57053-04030iGRN305,310,325,330,TRN245,265201508-201909

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main57411-04030iGRN305,310,325,330,TRN245,265201508-201909

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main57412-04030iGRN305,310,325,330,TRN245,265201508-201909

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

57421CPLATE, FLOOR SIDE RAIL, RH

main57421-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

sub57421-04020

main57421-04020iGRN305,310,325,330,TRN245,265201508-201909

57422BPLATE, FLOOR SIDE RAIL, LH

main57421-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

sub57421-04020

main57421-04020iGRN305,310,325,330,TRN245,265201508-201909

57457DPATCH, FLOOR SIDE MEMBER, REAR RH

main57457-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

57458BPATCH, FLOOR SIDE MEMBER, REAR LH

main57457-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

57475CPLATE, FRONT FLOOR CROSSMEMBER

main57475-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201109

main57475-04020iTRN220,240201109-201508

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-04010iTRN240..4FC201006-201501

FRAME NO.=M******

main57508-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-04010iTRN220..4FC200409-201408

main57509-04010iTRN220;TRN240..5F201006-201109

FRAME NO.=M******

main57509-04020iTRN240..4FC201006-201412

FRAME NO.=M******

sub57509-04021

main57509-04020iGRN225,245,250,265,270,TRN225,245,265200805-201006

sub57509-04021

main57509-04020iGRN225,245,250,265,270,TRN225,245,265200409-200805

FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.)

sub57509-04021

main57509-04021iGRN225,245,250,265,270,TRN225,245,265201501-201508

FRAME NO.=M******

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-04040iGRN225,245,250,265,270,TRN22#,24#,265201006-201501

FRAME NO.=M******

main57509-04040iGRN225,245,250,265,270,TRN225,245,265200409-201909

5752

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-04010iTRN220..4FC200409-201408

main58102-04020iGRN225,245,TRN22#,24#..5F,6F200409-201508

main58102-04030iGRN245,250,265,270,TRN225,24#,265..4FC,5FC200805-201508

main58102-04030iGRN245,250,265,270,TRN225..4FC,5FC200409-200805

FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.)

main58102-04040iGRN305,TRN245..5F,6F201508-201909

main58102-04050iGRN305,310,325,330,TRN245,265..6FC201508-201909

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main58103-04010iGRN305,310,325,330,TRN245,265200409-201909

main58103-04020iTRN220,240200409-201408

58111PAN, FRONT FLOOR

main58111-04410iTRN220..4FC200409-201408

main58111-04420iTRN225,245..5F200409-201408

main58111-04422iTRN225,245..5F201408-201411

sub58111-04423

main58111-04423iTRN225,245..5F201412-201501

sub58111-04424

main58111-04424iTRN225,245..5F201501-201508

main58111-04430iTRN240..4FC200805-201408

main58111-04430iGRN245,250,265,270,TRN225..4FC,5FC200409-200805

FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.)

main58111-04432iGRN245,250,265,270,TRN225,245,265..4FC,5FC201408-201411

sub58111-04433

main58111-04433iGRN245,250,265,270,TRN225,245,265..4FC,5FC201412-201501

sub58111-04434

main58111-04434iGRN245,250,265,270,TRN225,245,265..4FC,5FC201501-201508

main58111-04440iGRN225,265..6F200409-201404

main58111-04442iGRN225201408-201411

sub58111-04443

main58111-04443iGRN225201412-201501

sub58111-04444

main58111-04444iGRN225201501-201508

main58111-04450iGRN245..6F200409-201404

main58111-04452iGRN245..6F201408-201411

sub58111-04453

main58111-04453iGRN245..6F201412-201501

sub58111-04454

main58111-04454iGRN245..6F201501-201508

main58111-04460iGRN305..6F201508-201909

main58111-04470iTRN245..5F201508-201711

main58111-04903iGRN305,310,325,330,TRN245,265..6FC201508-201909

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-04010iGRN305,310,325,330,TRN245,265200409-201909

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-04010iGRN225,245,250,265,270,TRN225,245,265200409-201508

main58171-04010iTRN220;TRN240..5F201006-201501

FRAME NO.=M******

58191FOOTREST, FRONT FLOOR

main58190-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200610

sub58190-04021

main58190-04021iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200611-201207

sub58190-04022

main58190-04022iGRN225,245,250,265,270,TRN225,245,265201208-201508

main58190-04030iGRN305..6F201508-201909

main58190-04040iGRN305,310,325,330,TRN245,265..6FC201508-201909

58198ACLIP, FOOTREST, NO.1

main58198-20210iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

58280ABOOT ASSY, SHIFT LEVER

main58280-04090iTRN245..5F200409-201711

main58280-04100iGRN225,245,265..6F200409-201508

main58280-04110iGRN225,245,265..6F200802-200805

main58280-04130iGRN305..6F201508-201909

9008011610

main90080-11610

90159A0046

main90159-A0046

9018906029

main90189-06029

9046707083A0

main90467-07083A0

9046709205

main90467-09205

90467A0014

main90467-A0014

35 parts on this diagram · 3 diagrams in section
