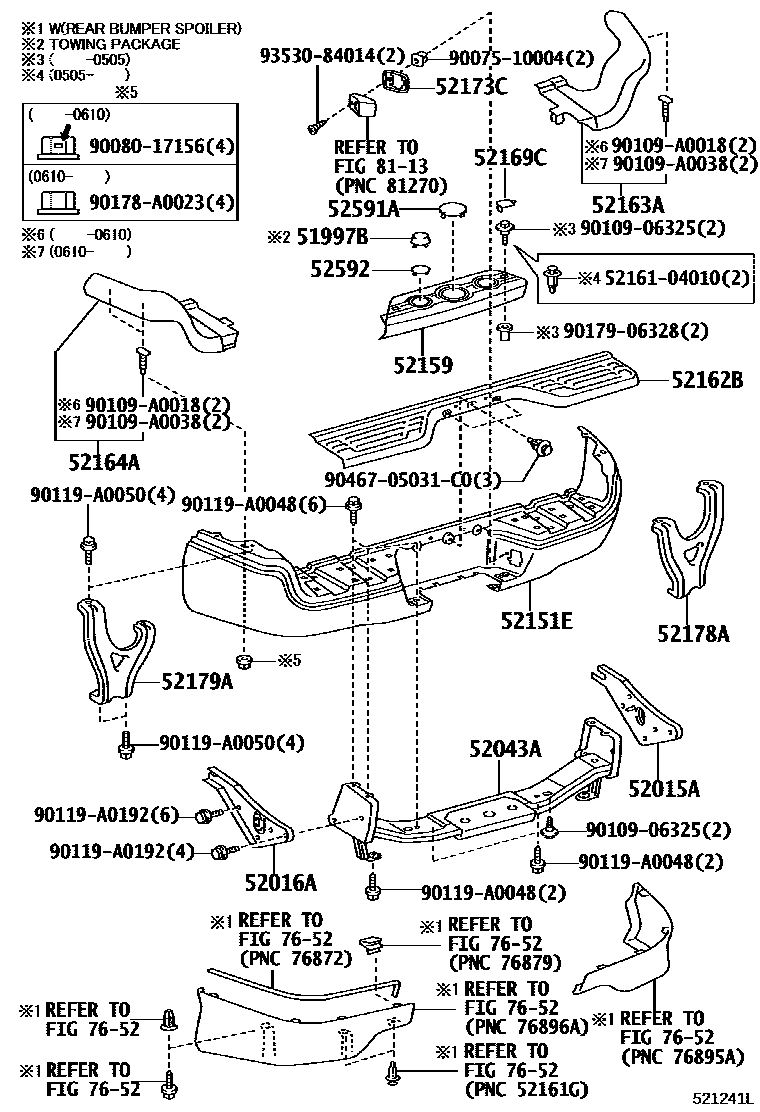

REAR BUMPER & BUMPER STAY

0001 1 0002 1

51997BCAP, RECEIVER HITCH

main51999-04030×2iGRN245,250,265,270200708-200805

SR5 PACKAGE&TOWING PACKAGE-WITH

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-200609

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-04010iGRN225,245,250,265,270,TRN22#,24#,26#200708-200805

52043AREINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2

main52043-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-200609

52151EBAR, REAR BUMPER

main52151-04050iGRN245,250,265,270,TRN22#,24#,26#200805-200811

NO PAINT REQ.

main52151-04051iGRN265,TRN26#..5F,6F200812-201006

NO PAINT REQ.

main52151-04906iGRN225200805-200812

PAINT REQ.

main52151-04908iGRN225200812-201109

PAINT REQ.

main52151-04060iGRN245,250,265,270,TRN225,24#,26#200805-200811

PLATED,WITH(*FTP & *EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH

main52151-04061iGRN245,265201109-201508

PLATED,WITH(*FTP & *EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH

main52151-04903iGRN245,250,265,270200805-200812

PAINT REQ.,SPORT PACKAGE&TOWING PACKAGE-WITH

main52151-04907supersedes 52151-04051iGRN265..6F200812-201006

PAINT REQ.,SPORT PACKAGE&TOWING PACKAGE-WITH

52159COVER, REAR BUMPER

main52159-04020iTRN220,240201109-201408

NO PAINT REQ.

52162BPLATE, REAR BUMPER, NO.1

main52162-04010iGRN225,245,250,265,270,TRN22#,24#,26#200610-200707

main52162-04011iGRN225,245,250,265,270,TRN22#,24#,265201006-201109

52163APLATE, REAR BUMPER, RH

main52163-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200609

main52163-04021iGRN225,245,250,265,270,TRN22#,24#,26#200708-200805

52164APLATE, REAR BUMPER, LH

main52164-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200609

main52164-04021iGRN225,245,250,265,270,TRN225,245,265201109-201508

52169CCOVER, REAR BUMPER, LOWER

main52169-04010×2iGRN225,245,250,265,270,TRN22#,24#,26#200409-200609

NO PAINT REQ.

52173CREINFORCEMENT, REAR BUMPER, NO.3

main52193-04010×2iGRN225,245,250,265,270,TRN225,245,265201109-201508

52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH

main52178-04010iGRN225,245,250,265,270,TRN22#,24#,26#200610-200707

52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH

main52179-04010iGRN225,245,250,265,270,TRN22#,24#,26#200610-200707

52591ASEAL, REAR BUMPER

main52591-04010iGRN265,TRN26#..5F,6F200805-201006

52592SEAL, REAR BUMPER SIDE, LH

main52592-04010×2iGRN225,245,250,265,270,TRN22#,24#,26#200708-200805

7652

8113

5216104010CUSHION, REAR BUMPER GUARD, NO.1

main52161-04010

9007510004

main90075-10004

9008017156

main90080-17156

9010906325

main90109-06325

90109A0018

main90109-A0018

90109A0038

main90109-A0038

90119A0048

main90119-A0048

90119A0050

main90119-A0050

90119A0192

main90119-A0192

90178A0023

main90178-A0023

9017906328

main90179-06328

9046705031C0

main90467-05031C0

9353084014

main93530-84014

30 parts on this diagram · 2 diagrams in section
