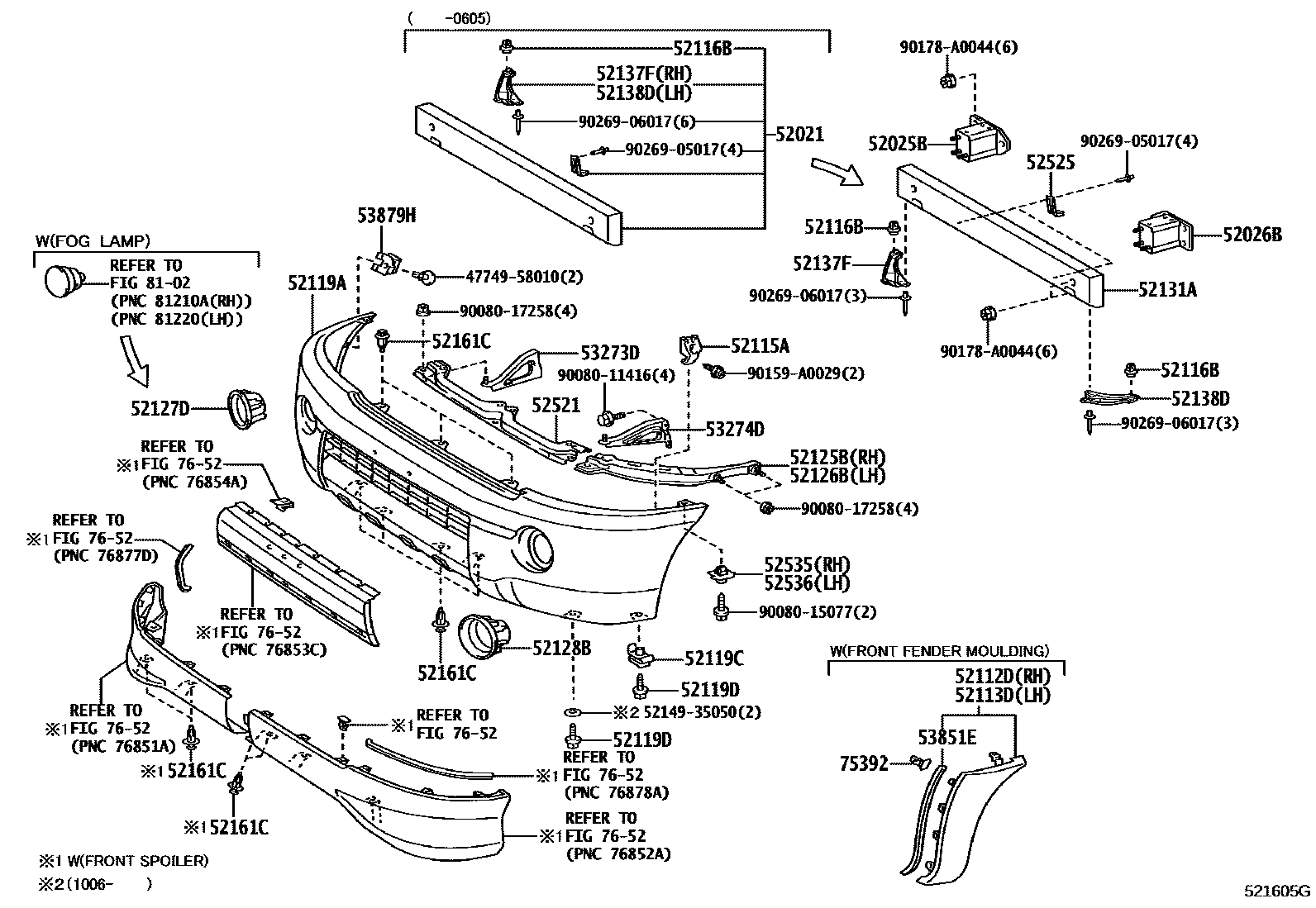

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116BRETAINER, FRONT BUMPER
52119ACOVER, FRONT BUMPER
NO PAINT REQ.
SR5 PACKAGE
SR5 PACKAGE&FRONT FOG LAMP-WITH(MOP),PAINT REQ.
NO PAINT REQ.
SR5 PACKAGE,PAINT REQ.
FRONT FOG LAMP-WITH(MOP),NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SR PACKAGE&WHEEL ARCH MOULDING-WITHOUT&FRONT FOG LAMP-WITHOUT
NO PAINT REQ.
NO PAINT REQ., SR PACKAGE&WHEEL ARCH MOULDING-WITHOUT&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
NO PAINT REQ.,WHEEL ARCH MOULDING-WITHOUT
NO PAINT REQ.,WHEEL ARCH MOULDING-WITHOUT&FRONT FOG LAMP-WITH
PAINT REQ.
PAINT REQ.
PAINT REQ.,TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM&FRONT FOG LAMP-WITH
PAINT REQ.
PAINT REQ.,TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM
PAINT REQ.,TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY
PAINT REQ.,SR PACKAGE&TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM&FRONT FOG LAMP-WITHOUT
PAINT REQ.,SR PACKAGE&TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY&FRONTFOG LAMP-WITHOUT
PAINT REQ.,TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM&FRONT FOG LAMP-WITH(55W)
PAINT REQ.,TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY&FRONT FOG LAMP-WITH(55W)
PAINT REQ.,TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY&FRONT FOG LAMP-WITH
PAINT REQ., SR PACKAGE&WHEEL ARCH MOULDING-WITH(COLORED)&HEADLAMP-CHROME BEZEL & *DRL(BULB TYPE)
PAINT REQ.,WHEEL ARCH MOULDING-WITH(COLORED)
52119CCLIP, FRONT BUMPER COVER
52119DSCREW, NO.1
52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH
FRONT FOG LAMP-WITH(55W)
52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH
FRONT FOG LAMP-WITH(55W)
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52131AREINFORCEMENT, FRONT BUMPER
52137FBRACKET, FRONT BUMPER ARM MOUNTING, NO.3
52138DBRACKET, FRONT BUMPER ARM MOUNTING, NO.4
52161CPIECE, FRONT BUMPER
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
53273DBRACKET, FRONT BUMPER ARM MOUNTING, RH
53274DBRACKET, FRONT BUMPER ARM MOUNTING, LH
53879HRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
SR5 PACKAGE&FRONT FOG LAMP-WITH
WITH(*FTP & *EUC:PNC51405A & 51406A)
SPORT PACKAGE
SR5 PACKAGE
FRONT FOG LAMP-WITH
WITH(*FTP & *EUC:PNC51405A & 51406A)&FRONT FOG LAMP-WITH
SPORT PACKAGE&FRONT FOG LAMP-WITH
7652
8102
4774958010CLIP, PIN HOLD
main47749-58010
5214935050BRACKET, FRONT BUMPER, INNER
main52149-35050
9008011416
main90080-11416
9008015077
main90080-15077
9008017258
main90080-17258
90159A0029
main90159-A0029
90178A0044
main90178-A0044
9026905017
main90269-05017
9026906017
main90269-06017
38 parts on this diagram · 4 diagrams in section
