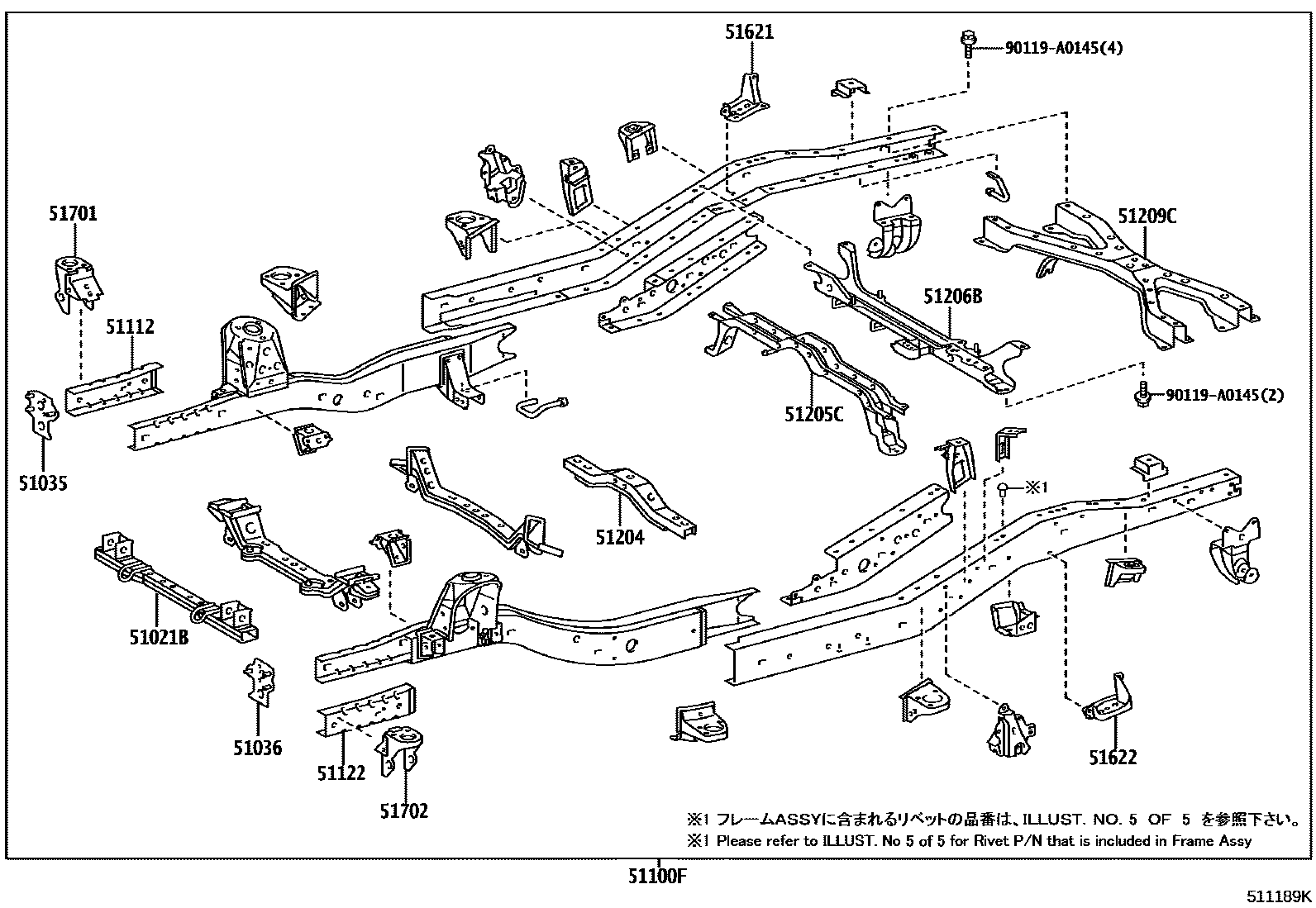

FRAME

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1 0012 1 0013 1RIVET

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-04010iGRN225,TRN22#200409-201103

sub51021-04011

main51021-04011iGRN225,TRN22#201104-201508

main51021-04020iGRN245,250,270,TRN24#;GRN265,TRN265..4FC,5FC200409-201103

sub51021-04021

main51021-04021iTRN240201104-201508

sub51021-04022

main51021-04022iGRN305,310,325,330,TRN245,265201508-201909

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-04010iGRN265,TRN26#..5F,6F200409-201508

main51035-04011iGRN305,310,325,330,TRN245,265201508-201909

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main51036-04011iGRN305,310,325,330,TRN245,265201508-201909

51100FFRAME SUB-ASSY

main51001-04580iTRN220200409-200808

sub51001-04430

sub51900-35420

sub90105-A0064

main51001-04590iTRN225200409-200808

sub51001-04440

sub51900-35420

sub90105-A0064

main51001-04600iGRN225200409-200808

main51001-04610iTRN240200409-200808

main51001-04620iTRN245200409-200808

main51001-04630iGRN245..LCB200409-200808

sub51001-04480

sub51900-35410

main51001-04640iTRN220200808-201101

sub51001-04641

sub90105-A0064

main51001-04642iTRN220201101-201109

sub51001-04644

sub51900-35420

sub90105-A0064

main51001-04644iTRN220201109-201208

main51001-04647iTRN220201208-201408

main51001-04650iTRN225..LCB200808-201012

sub51001-04652

main51001-04652iTRN225..LCB201101-201109

sub51001-04654

sub51900-35420

sub90105-A0064

main51001-04654iTRN225..LCB201109-201208

main51001-04657iTRN225..LCB201208-201308

sub51001-04658

main51001-04658iTRN225..LCB201309-201508

main51001-04660iGRN225200808-201012

sub51001-04662

main51001-04662iGRN225201101-201109

sub51001-04664

sub51900-35420

sub90105-A0064

main51001-04664iGRN225201109-201208

main51001-04667iGRN225201208-201308

sub51001-04668

main51001-04668iGRN225201309-201508

main51001-04670iTRN240..5F200808-201101

sub51001-04671

main51001-04671iTRN240..5F201102-201109

sub51001-04672

main51001-04672iTRN240..5F201109-201208

main51001-04675iTRN240..5F201208-201408

main51001-04680iTRN245..5F200808-201101

sub51001-04681

main51001-04681iTRN245..5F201102-201109

sub51001-04682

main51001-04682iTRN245..5F201109-201208

main51001-04685iTRN245..5F201208-201308

sub51001-04686

main51001-04686iTRN245..5F201309-201508

main51001-04687iTRN245..5F201508-201611

sub51001-04688

main51001-04688iTRN245..5F201612-201711

main51001-04690iGRN245..LCB200808-201101

sub51001-04691

main51001-04691iGRN245..LCB201102-201109

sub51001-04692

main51001-04692iGRN245..LCB201109-201208

main51001-04695iGRN245..LCB201208-201308

sub51001-04696

main51001-04696iGRN245..LCB201309-201508

main51001-04697iGRN305..LCB201508-201611

sub51001-04698

main51001-04698iGRN305..LCB201612-201909

main51001-04700iGRN245..DCB200808-201101

sub51001-04701

main51001-04701iGRN245..DCB201102-201109

sub51001-04702

main51001-04702iGRN245..DCB201109-201208

main51001-04705iGRN245..DCB201208-201308

sub51001-04706

main51001-04706iGRN245..DCB201309-201508

main51001-04707iGRN305..DCB201508-201611

sub51001-04708

main51001-04708iGRN305..DCB201612-201909

main51001-04710iGRN250200808-201101

sub51001-04711

main51001-04711iGRN250201102-201109

sub51001-04712

main51001-04712iGRN250201109-201208

main51001-04715iGRN250201208-201308

sub51001-04716

main51001-04716iGRN250201309-201508

main51001-04717iGRN310201508-201611

sub51001-04718

main51001-04718iGRN310201612-201909

main51001-04740iGRN265..LCB..5FC200808-201101

sub51001-04741

main51001-04741iGRN265..LCB201102-201109

sub51001-04742

main51001-04742iGRN265..LCB201109-201208

main51001-04745iGRN265..LCB201208-201308

sub51001-04746

main51001-04746iGRN265..LCB201309-201508

main51001-04747iGRN325..LCB201508-201611

sub51001-04748

main51001-04748iGRN325..LCB201612-201909

main51001-04760iGRN265..DCB200808-201101

sub51001-04761

main51001-04761iGRN265..DCB201102-201109

sub51001-04762

main51001-04762iGRN265..DCB201109-201208

main51001-04765iGRN265..DCB201208-201308

sub51001-04766

main51001-04766iGRN265..DCB201309-201508

main51001-04767iGRN325..DCB201508-201611

sub51001-04768

main51001-04768iGRN325..DCB201612-201909

main51001-04770iGRN270200808-201101

sub51001-04771

main51001-04771iGRN270201102-201109

sub51001-04772

main51001-04772iGRN270201109-201208

main51001-04775iGRN270201208-201308

sub51001-04776

main51001-04776iGRN270201309-201508

main51001-04777iGRN330201508-201611

sub51001-04778

main51001-04778iGRN330201612-201909

main51001-04780iTRN225..DCB201006-201012

sub51001-04782

main51001-04782iTRN225..DCB201101-201109

sub51001-04784

sub51900-35420

sub90105-A0064

main51001-04784iTRN225..DCB201109-201208

main51001-04787iTRN225..DCB201208-201308

sub51001-04788

main51001-04788iTRN225..DCB201309-201508

main51001-04790iTRN265..LCB201006-201101

sub51001-04791

main51001-04791iTRN265..LCB201102-201109

sub51001-04792

main51001-04792iTRN265..LCB201109-201208

main51001-04795iTRN265..LCB201208-201308

sub51001-04796

main51001-04796iTRN265..LCB201309-201508

main51001-04797iTRN265..LCB201508-201611

sub51001-04798

main51001-04798iTRN265..LCB201612-201909

main51001-04800iTRN265..DCB201006-201101

sub51001-04801

main51001-04801iTRN265..DCB201102-201109

sub51001-04802

main51001-04802iTRN265..DCB201109-201208

main51001-04805iTRN265..DCB201208-201308

sub51001-04806

main51001-04806iTRN265..DCB201309-201508

main51001-04807iTRN265..DCB201508-201611

sub51001-04808

main51001-04808iTRN265..DCB201612-201909

main51001-04810iTRN240..4FC201006-201101

sub51001-04811

main51001-04811iTRN240..4FC201102-201109

sub51001-04812

main51001-04812iTRN240..4FC201109-201208

main51001-04815iTRN240..4FC201208-201408

main51001-04820iTRN245..4FC201006-201101

sub51001-04821

main51001-04821iTRN245..4FC201102-201109

sub51001-04822

main51001-04822iTRN245..4FC201109-201208

main51001-04825iTRN245..4FC201208-201308

sub51001-04826

main51001-04826iTRN245..4FC201309-201508

main51001-04827iTRN245..6FC201508-201611

sub51001-04828

main51001-04828iTRN245..6FC201612-201909

main51001-04830iGRN245..DCB200409-200808

sub51001-04490

sub51900-35410

main51001-04840iGRN250200409-200808

sub51001-04500

sub51900-35410

main51001-04850iTRN260200409-200808

main51001-04860iTRN265200409-200808

main51001-04870iGRN265..LCB..5FC200409-200808

sub51001-04530

sub51900-35410

main51001-04880iGRN265..6F200409-200808

sub51001-04540

sub51900-35410

main51001-04890iGRN265..DCB200409-200808

main51001-04A00iGRN270200409-200808

main51001-04A10iTRN260200808-201006

main51001-04A20iTRN265200808-201006

main51001-04A30iGRN265..6F200808-201006

51112EXTENSION, SIDE RAIL, RH

main51112-04010iGRN225,TRN22#200409-201406

sub51112-04011

main51112-04011iGRN225,TRN225201407-201508

main51112-04020iGRN245,250,265,270,TRN24#,26#200409-201909

51122EXTENSION, SIDE RAIL, LH

main51122-04010iGRN225,TRN22#200409-201406

sub51122-04011

main51122-04011iGRN225,TRN225201407-201508

main51122-04020iGRN245,250,265,270,TRN245,265200409-201909

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-04020iGRN245,250,TRN24#200409-200805

sub51203-04050

main51203-04030iGRN225,265,270,TRN22#,26#200409-201508

main51203-04050iTRN265..4FC;GRN245,250,TRN24#200805-201508

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-04060iGRN225,250,270,TRN225200409-201508

main51204-04061iGRN310,330201508-201909

main51204-04070iGRN245,TRN245200409-201508

main51204-04071iGRN305,TRN245201508-201909

main51204-04080iGRN265,TRN265200409-201508

main51204-04081iGRN325,TRN265201508-201909

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-04040iGRN225,245,250,265,270,TRN22#,24#,26#200409-200808

main51205-04050iGRN265,TRN26#..5F,6F200808-201809

main51205-04051iGRN305,310,325,330,TRN245,265201809-201909

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-200808

main51206-04020iGRN265,TRN26#..5F,6F200808-201207

sub51206-04030

main51206-04030iTRN220,240201208-201909

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-04030iGRN225,TRN22#200409-200805

sub51209-04031

main51209-04031iGRN225,TRN22#200805-201104

sub51209-04032

main51209-04032iGRN225,TRN22#201104-201109

sub51209-04033

main51209-04033iTRN220201109-201508

main51209-04040iGRN245,250,265,270,TRN24#,26#200409-200805

sub51209-04041

main51209-04041iGRN245,250,270,TRN24#;GRN265,TRN265..4FC,5FC200805-201101

sub51209-04043

main51209-04043iGRN245,250,265,270,TRN24#,265201102-201109

sub51209-04044

main51209-04044iTRN240201109-201508

main51209-04045iGRN305,310,325,330,TRN245,265201508-201909

51621BRACKET, REAR BOUND STOPPER, RH

main51621-04010iGRN225,TRN225200409-201508

main51621-04020iGRN305,310,325,330,TRN245,265200409-201909

51622BRACKET, REAR BOUND STOPPER, LH

main51622-04010iGRN225,TRN22#200409-201508

main51622-04020iGRN245,250,265,270,TRN245,265200409-201909

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main51701-04011iGRN305,310,325,330,TRN245,265201508-201909

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

main51701-04011iGRN305,310,325,330,TRN245,265201508-201909

90119A0145

main90119-A0145

16 parts on this diagram · 12 diagrams in section
