EPC Data

REAR SPRING & SHOCK ABSORBER

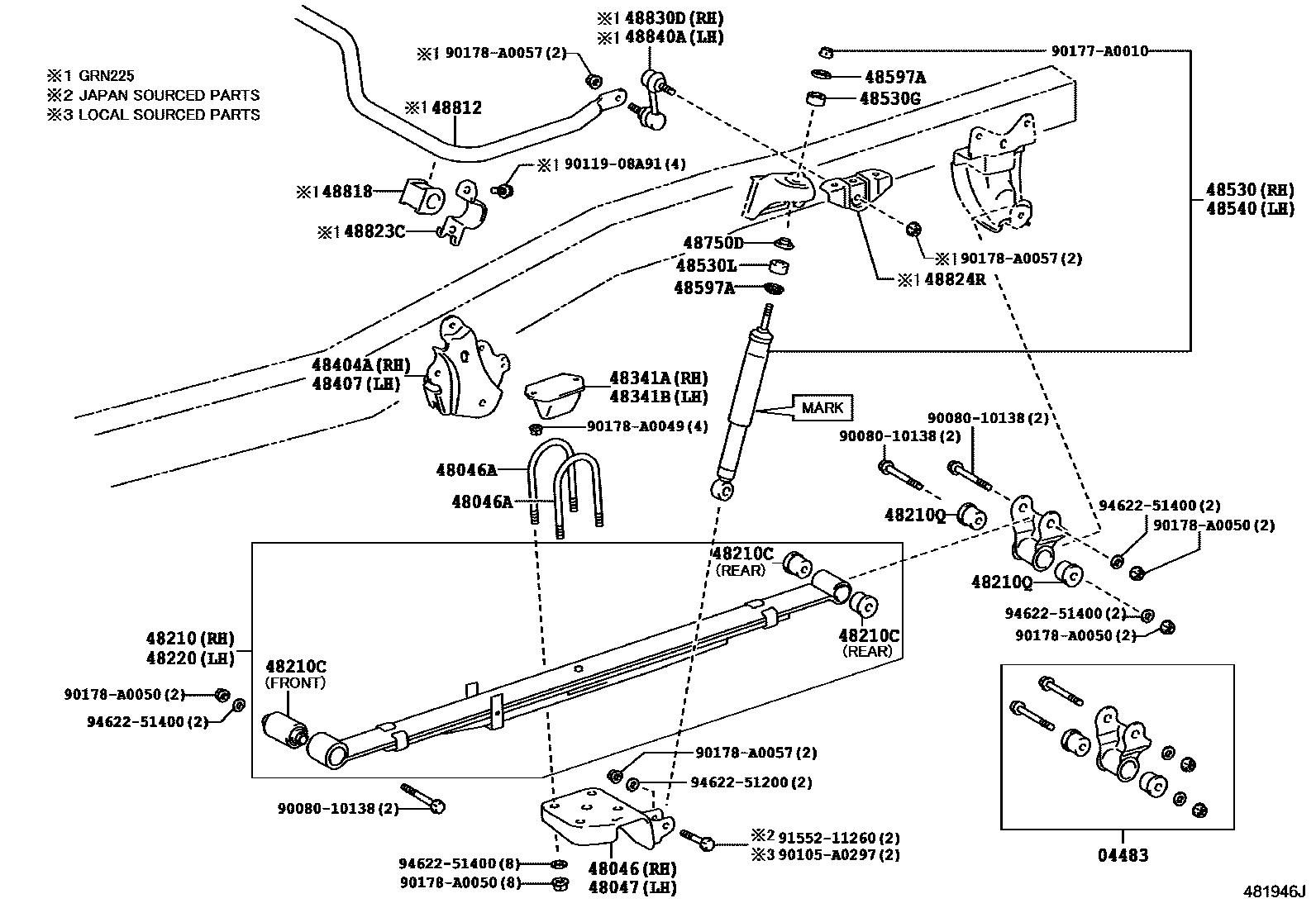

Parts diagram
04483SHACKLE KIT, REAR SPRING
main04483-04080i200409-201711
sub04483-04081
main04483-04081i201711-201909
48046SEAT SUB-ASSY, SPRING U BOLT, RH
main48473-04030i200409-200609
sub48473-04031
main48473-04031i200610-201508
main48473-04040i200409-201909
48046ABOLT, U(FOR REAR SPRING)
main90117-A0001i200409-201309
L=155
main90117-A0002i200409-201508
L=155
main90117-A0005i201309-201909
L=165
48047SEAT SUB-ASSY, SPRING U BOLT, LH
main48473-04030i200409-200609
sub48473-04031
main48473-04031i200610-201508
main48473-04040i200409-201909
48210SPRING ASSY, REAR RH
main48210-04370i200409-201109
MAIN 2-LEAF+HELPER 1
main48210-04380i200409-201109
MAIN 2-LEAF+HELPER 1
main48210-04540i200409-201009
MAIN 2-LEAF+HELPER 1
sub48210-04541
main48210-04541i201009-201109
MAIN 2-LEAF+HELPER 1
sub48210-35A30
main48210-04550i200409-201009
MAIN 2-LEAF+HELPER 1
sub48210-04551
main48210-04551i201009-201109
MAIN 2-LEAF+HELPER 1
sub48210-35A40
main48210-04580i201406-201508
MAIN 3-LEAF+HELPER 1
main48210-04600i201711-201810
MAIN 3-LEAF+HELPER 1
sub48210-04601
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,CANADA SPEC&OFF ROAD PACKAGE
sub48210-04602
main48210-04601i201810-202109
MAIN 3-LEAF+HELPER 1
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,GUAM SPEC&OFF ROAD PACKAGE
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,HAWAII SPEC&OFF ROAD PACKAGE
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,HAWAII SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,CANADA SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,PUERTO RICO SPEC&OFF ROAD PACKAGE
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,PUERTO RICO SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,SAIPAN SPEC&OFF ROAD PACKAGE
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,SAMOA SPEC&OFF ROAD PACKAGE
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,OFF ROAD PACKAGE
sub48210-04602
main48210-04601i201909-202109
MAIN 3-LEAF+HELPER 1,TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
sub48210-04602
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,GUAM SPEC&OFF ROAD PACKAGE
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,HAWAII SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,CANADA SPEC&OFF ROAD PACKAGE
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,CANADA SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,PUERTO RICO SPEC&OFF ROAD PACKAGE
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,PUERTO RICO SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,SAIPAN SPEC&OFF ROAD PACKAGE
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,SAMOA SPEC&OFF ROAD PACKAGE
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,OFF ROAD PACKAGE
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
main48210-04602i202110
MAIN 3-LEAF+HELPER 1
main48210-04602i202110
MAIN 3-LEAF+HELPER 1,HAWAII SPEC&OFF ROAD PACKAGE
main48210-04610i201109-201408
MAIN 2-LEAF+HELPER 1
main48210-04620i201109-201508
MAIN 2-LEAF+HELPER 1
main48210-04630i201109-201508
MAIN 2-LEAF+HELPER 1
main48210-04640i201308-201408
4-LEAF
main48210-04650i201301-201508
MAIN 2-LEAF+HELPER 1
main48210-04710i201508-201810
MAIN 3-LEAF+HELPER 1
sub48210-04711
main48210-04711i201810-202109
MAIN 3-LEAF+HELPER 1
sub48210-04712
main48210-04712i202110
MAIN 3-LEAF+HELPER 1
main48210-04720i201406-201508
MAIN 3-LEAF+HELPER 1
main48210-35A30i201109-201307
MAIN 2+HELPER 1-LEAF
sub48210-04H04
main48210-35A40i201109-201308
MAIN 2+HELPER 1-LEAF
sub48210-04H05
main48210-AD020i200409-201109
MAIN 2-LEAF+HELPER 1
48210CBUSH(FOR REAR SPRING LEAF)
main90389-A0003i202110
OFF ROAD PACKAGE,REAR
main90389-A0003i202110
OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),REAR
main90389-A0003i202110
TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE),REAR
main90389-A0003i200409-202110
REAR
main90389-A0003i202110
GUAM SPEC,REAR
main90389-A0003i202110
GUAM SPEC&OFF ROAD PACKAGE,REAR
main90389-A0003i202110
GUAM SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),REAR
main90389-A0003i202110
HAWAII SPEC,REAR
main90389-A0003i202110
HAWAII SPEC&OFF ROAD PACKAGE,REAR
main90389-A0003i202110
HAWAII SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),REAR
main90389-A0003i202110
HAWAII SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE),REAR
main90389-A0003i202110
CANADA SPEC,REAR
main90389-A0003i202110
CANADA SPEC&OFF ROAD PACKAGE,REAR
main90389-A0003i202110
CANADA SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),REAR
main90389-A0003i202110
CANADA SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE),REAR
main90389-A0003i202110
MEXICO, COSTARICA SPEC&SPORT PACKAGE,REAR
main90389-A0003i201508-201711
PUERTO RICO SPEC,REAR
main90389-A0003i202110
PUERTO RICO SPEC&OFF ROAD PACKAGE,REAR
main90389-A0003i202110
PUERTO RICO SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),REAR
main90389-A0003i202110
PUERTO RICO SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE),REAR
main90389-A0003i202110
SAIPAN SPEC,REAR
main90389-A0003i202110
SAIPAN SPEC&OFF ROAD PACKAGE,REAR
main90389-A0003i202110
SAIPAN SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),REAR
main90389-A0003i202110
SAMOA SPEC,REAR
main90389-A0003i202110
SAMOA SPEC&OFF ROAD PACKAGE,REAR
main90389-A0003i202110
SAMOA SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),REAR
main90389-A0003i201508-201711
USA POSSESSION SPEC,REAR
main90389-A0003i201508-201711
USA POSSESSION SPEC&SUSPENSION-LEAF(FIRM RIDE),REAR
main90389-A0003i201508-201711
PUERTO RICO SPEC&SUSPENSION-LEAF(FIRM RIDE),REAR
main90389-A0003i201508-201711
SUSPENSION-LEAF(FIRM RIDE),REAR
main90389-A0004i202110
GUAM SPEC,FRONT
main90389-A0004i200409-202110
FRONT
main90389-A0004i201508-201711
USA POSSESSION SPEC,FRONT
main90389-A0004i201508-201711
USA POSSESSION SPEC&SUSPENSION-LEAF(FIRM RIDE),FRONT
main90389-A0004i201508-201711
PUERTO RICO SPEC,FRONT
main90389-A0004i201508-201711
PUERTO RICO SPEC&SUSPENSION-LEAF(FIRM RIDE),FRONT
main90389-A0004i201508-201711
SUSPENSION-LEAF(FIRM RIDE),FRONT
main90389-A0004i202110
GUAM SPEC&OFF ROAD PACKAGE,FRONT
main90389-A0004i202110
GUAM SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),FRONT
main90389-A0004i202110
HAWAII SPEC,FRONT
main90389-A0004i202110
HAWAII SPEC&OFF ROAD PACKAGE,FRONT
main90389-A0004i202110
HAWAII SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),FRONT
main90389-A0004i202110
HAWAII SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE),FRONT
main90389-A0004i202110
CANADA SPEC,FRONT
main90389-A0004i202110
CANADA SPEC&OFF ROAD PACKAGE,FRONT
main90389-A0004i202110
CANADA SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),FRONT
main90389-A0004i202110
CANADA SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE),FRONT
main90389-A0004i202110
MEXICO, COSTARICA SPEC&SPORT PACKAGE,FRONT
main90389-A0004i202110
PUERTO RICO SPEC&OFF ROAD PACKAGE,FRONT
main90389-A0004i202110
PUERTO RICO SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),FRONT
main90389-A0004i202110
PUERTO RICO SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE),FRONT
main90389-A0004i202110
SAIPAN SPEC,FRONT
main90389-A0004i202110
SAIPAN SPEC&OFF ROAD PACKAGE,FRONT
main90389-A0004i202110
SAIPAN SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),FRONT
main90389-A0004i202110
SAMOA SPEC,FRONT
main90389-A0004i202110
SAMOA SPEC&OFF ROAD PACKAGE,FRONT
main90389-A0004i202110
SAMOA SPEC&OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),FRONT
main90389-A0004i202110
OFF ROAD PACKAGE,FRONT
main90389-A0004i202110
OFF ROAD PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR OFF ROAD PACKAGE),FRONT
main90389-A0004i202110
TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE),FRONT
48210QBUSH(FOR REAR SPRING SHACKLE)
main90389-A0003i200409-201909
48220SPRING ASSY, REAR LH
main48220-04160i200409-201109
MAIN 2-LEAF+HELPER 1
main48220-04170i200409-201109
MAIN 2-LEAF+HELPER 1
main48220-04180i200409-201009
MAIN 2-LEAF+HELPER 1
sub48220-04181
main48220-04181i201009-201109
MAIN 2-LEAF+HELPER 1
sub48220-35030
main48220-04190i200409-201009
MAIN 2-LEAF+HELPER 1
sub48220-04191
main48220-04191i201009-201109
MAIN 2-LEAF+HELPER 1
sub48220-35040
main48220-04220i201406-201508
MAIN 3-LEAF+HELPER 1
main48220-04240i201711-201810
MAIN 3-LEAF+HELPER 1
sub48220-04241
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,HAWAII SPEC&OFF ROAD PACKAGE
sub48220-04242
main48220-04241i201810-202109
MAIN 3-LEAF+HELPER 1
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,GUAM SPEC&OFF ROAD PACKAGE
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,HAWAII SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,CANADA SPEC&OFF ROAD PACKAGE
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,CANADA SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,PUERTO RICO SPEC&OFF ROAD PACKAGE
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,PUERTO RICO SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,SAIPAN SPEC&OFF ROAD PACKAGE
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,SAMOA SPEC&OFF ROAD PACKAGE
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,OFF ROAD PACKAGE
sub48220-04242
main48220-04241i201909-202109
MAIN 3-LEAF+HELPER 1,TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
sub48220-04242
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,GUAM SPEC&OFF ROAD PACKAGE
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,CANADA SPEC&OFF ROAD PACKAGE
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,CANADA SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,PUERTO RICO SPEC&OFF ROAD PACKAGE
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,PUERTO RICO SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,SAIPAN SPEC&OFF ROAD PACKAGE
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,SAMOA SPEC&OFF ROAD PACKAGE
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,OFF ROAD PACKAGE
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
main48220-04242i202110
MAIN 3-LEAF+HELPER 1
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,HAWAII SPEC&OFF ROAD PACKAGE
main48220-04242i202110
MAIN 3-LEAF+HELPER 1,HAWAII SPEC&TRD-PRO PACKAGE&REAR SUSPENSION-LEAF SPRING(FOR TRD PRO PACKAGE)
main48220-04250i201109-201408
MAIN 2-LEAF+HELPER 1
main48220-04260i201109-201508
MAIN 2-LEAF+HELPER 1
main48220-04270i201109-201508
MAIN 2-LEAF+HELPER 1
main48220-04280i201308-201408
main48220-04290i201309-201508
MAIN 2-LEAF+HELPER 1
main48220-04350i201508-201810
MAIN 3-LEAF+HELPER 1
sub48220-04351
main48220-04351i201810-202109
MAIN 3-LEAF+HELPER 1
sub48220-04352
main48220-04352i202110
MAIN 3-LEAF+HELPER 1
main48220-04360i201406-201508
MAIN 3-LEAF+HELPER 1
main48220-35030i201109-201307
MAIN 2-LEAF+HELPER 1
sub48210-04H04
main48220-35040i201109-201308
MAIN 2-LEAF+HELPER 1
sub48210-04H05
main48220-AD020i200409-201109
MAIN 2-LEAF+HELPER 1
48341ABUMPER, REAR SPRING, NO.1 RH
main48341-04060i200409-201508
main48341-04070i200409-200803
sub48341-04080
main48341-04080i200804-201308
sub48341-04090
main48341-04090i201309-201408
sub48341-04100
main48341-04100i201408-201909
main48341-AD020i200409-201508
48341BBUMPER, REAR SPRING, NO.1 LH
main48341-04060i200409-201508
main48341-04070i200409-200803
sub48341-04080
main48341-04080i200804-201308
sub48341-04090
main48341-04090i201309-201408
sub48341-04100
main48341-04100i201408-201909
main48341-AD020i200409-201508
48404ABRACKET SUB-ASSY, SPRING, NO.3 RH
main48404-04010i200409-201508
main48404-04020i200409-200805
48407BRACKET SUB-ASSY, SPRING, NO.3 LH
main48407-04010i200409-201508
main48407-04020i200409-200805
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-09896i201508-201811
MARK 48530-04130
sub48530-8Z078
main48530-09B50i200409-200805
MARK 48530-04020
main48530-09E40i200409-201508
MARK 48530-04010
main48530-09Q40i200805-201109
MARK 48530-04021
main48530-09Q92i201109-201508
MARK 48530-04120
main48530-8Z078i201811-201909
MARK 48530-04131
main48530-A9330i200409-201508
MARK 48530-AD040
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main90540-A0003i200409-201909
main90540-A0007i201109-201508
SPORT PACKAGE&SUSPENSION-FIRM RIDE
main90540-A0007i201109-201508
USA POSSESSION SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main90540-A0007i201109-201508
USA POSSESSION SPEC&SPORT PACKAGE
main90540-A0007i201109-201508
USA POSSESSION SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE
main90540-A0007i201109-201508
PUERTO RICO SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main90540-A0007i201109-201508
PUERTO RICO SPEC&SPORT PACKAGE
main90540-A0007i201109-201508
PUERTO RICO SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE
main90540-A0007i201109-201508
WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main90540-A0007i200805-201508
SPORT PACKAGE
main90540-A0007i200409-201109
WITH(*FTP & *EUC:PNC51405A & 51406A)
main90540-A0007i200409-200805
STREET PACKAGE 4X4,2X4
main90540-A0007i200805-201109
CANADA SPEC
main90540-A0007i200805-201109
CANADA SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)
main90540-A0007i200805-201109
CANADA SPEC&SPORT PACKAGE
48530LCUSHION, REAR SHOCK ABSORBER, NO.3
main90540-A0004i200409-201909
main90540-A0008i201109-201508
USA POSSESSION SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE
main90540-A0008i200805-201109
CANADA SPEC
main90540-A0008i200805-201109
CANADA SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)
main90540-A0008i200805-201109
CANADA SPEC&SPORT PACKAGE
main90540-A0008i200409-201109
WITH(*FTP & *EUC:PNC51405A & 51406A)
main90540-A0008i200805-201508
SPORT PACKAGE
main90540-A0008i201109-201508
USA POSSESSION SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main90540-A0008i201109-201508
USA POSSESSION SPEC&SPORT PACKAGE
main90540-A0008i201109-201508
PUERTO RICO SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main90540-A0008i201109-201508
PUERTO RICO SPEC&SPORT PACKAGE
main90540-A0008i201109-201508
PUERTO RICO SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE
main90540-A0008i201109-201508
WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main90540-A0008i201109-201508
SPORT PACKAGE&SUSPENSION-FIRM RIDE
main90540-A0008i200409-200805
STREET PACKAGE 4X4,2X4
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-09896i201508-201811
MARK 48530-04130
sub48530-8Z078
main48530-09B50i200409-200805
MARK 48530-04020
main48530-09Q40i200805-201109
MARK 48530-04021
main48530-09Q92i201109-201508
MARK 48530-04120
main48530-8Z078i201811-201909
MARK 48530-04131
main48540-09530i200409-201508
MARK 48540-04010
main48540-A9200i200409-201508
MARK 48540-AD040
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
main90948-A2005i200409-201909
48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
main90948-A2006i200409-201909
48812BAR, STABILIZER, REAR
main48812-AD030i200409-201508
48818BUSH, STABILIZER, REAR
main48818-AD010i200409-201508
48823CCOVER, REAR STABILIZER BRACKET
main48823-AD010i200409-201508
48824RBRACKET, STABILIZER(FOR REAR)
main48824-04010i200409-201508
48830DLINK ASSY, REAR STABILIZER, RH
main48830-AD020i200409-201508
48840ALINK ASSY, REAR STABILIZER, LH
main48830-AD020i200409-201508
9008010138
main90080-10138
90105A0297
main90105-A0297
9011908A91
main90119-08A91
90177A0010
main90177-A0010
90178A0049
main90178-A0049
90178A0050
main90178-A0050
90178A0057
main90178-A0057
9155211260
main91552-11260
9462251200
main94622-51200
9462251400
main94622-51400

34 parts on this diagram · 3 diagrams in section

REAR SPRING & SHOCK ABSORBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
