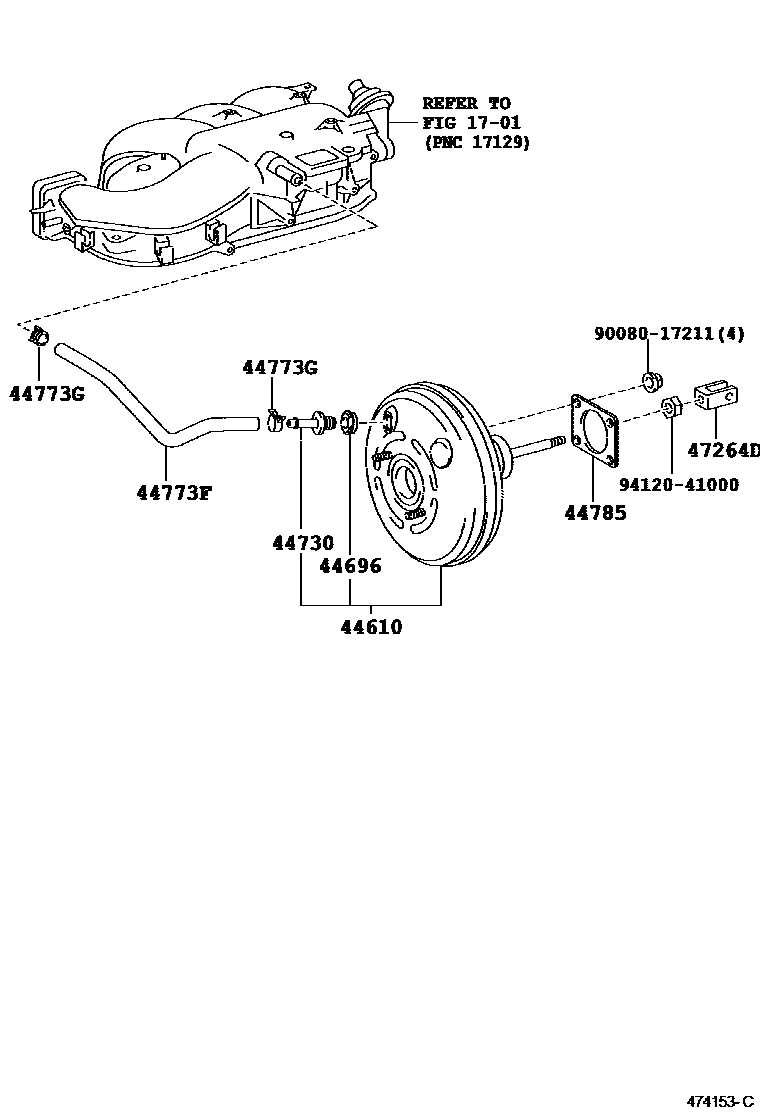

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-04150iGRN245,250,265,270200409-200603

sub44610-04151

main44610-04151iGRN225,TRN22#,24#,26#200604-200805

sub44610-04152

main44610-04160iGRN245,250,265,270200505-200603

sub44610-04161

main44610-04161iGRN245,250,265,270200604-200805

sub44610-04162

main44610-04171iTRN22#,24#,26#200805-200912

sub44610-04181

main44610-04181iTRN245,265..4FC;TRN225,240..(DCB,RCB)..4FC200805-201201

sub44610-04182

main44610-04182iGRN225,245,250,265,270,TRN225,245,265201202-201508

main44610-04190iGRN265..6F200912-201202

main44610-04210iGRN305,310,325,330201508-201909

main44610-04220iTRN245,265201508-201909

44696GROMMET, CHECK VALVE

main90080-48071iTRN245,265201202-201909

main90480-24439iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201202

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iTRN245,265200409-201909

main44730-20170iGRN305,310,325,330201508-201909

44773FHOSE, UNION TO CHECK VALVE

main44773-04050iTRN22#,24#,26#200409-200805

main44773-04060iGRN225,245,250,265,270200409-200805

main44773-04070iTRN22#,24#;TRN265..4FC200805-201909

main44773-04080iGRN225,245,250,265,270200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main44773-04080iGRN225,245,250,265,270201109-201508

TRD-PRO PACKAGE

main44773-04080iGRN265..6F200805-201006

main44774-04030iGRN305,310..SR5201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main44774-04030iGRN305,310,325,330201711-201909

OFF ROAD PACKAGE

main44774-04030iGRN305,310,325,330201711-201909

TRD PRO PACKAGE

main44774-04030iGRN305,310,325,330201909

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-A0003iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

VSC-WITH(W/AUTO LSD)

main90466-A0003iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

VSC-WITH(W/DOWNHILL ASSIST CONTROL)

main90466-A0003iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

VSC-WITH

main90466-A0003iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

VSC-WITH(W/AUTO LSD & OFF SW)

main90466-A0003iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

VSC-WITH(W/DOWNHILL ASSIST CONTROL & OFF SW)

main90466-A0003iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

VSC-WITH(W/OFF SW)

main90466-A0003iGRN265,TRN26#..5F,6F200805-201408

main90466-A0003iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90466-A0003iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

main90466-A0003iGRN305,310,325,330,TRN245,265201711-201909

OFF ROAD PACKAGE

main90466-A0003iGRN305,310,325,330,TRN245,265201711-201909

TRD PRO PACKAGE

44785GASKET, BRAKE BOOSTER

main44785-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-60020iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

9008017211

main90080-17211

9412041000

main94120-41000

10 parts on this diagram · 3 diagrams in section
