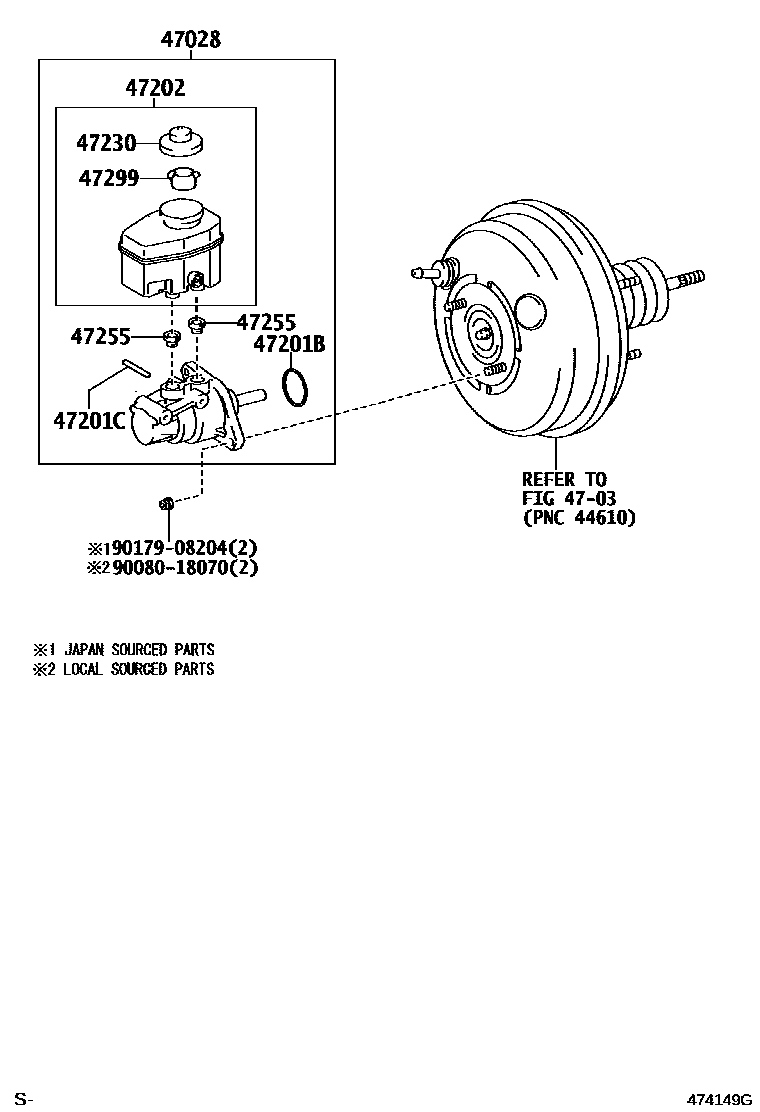

BRAKE MASTER CYLINDER

0001 1 0002 1MEXICO BASE 0003 1 0004 1W(VSC) 0006 1HYDRAULIC BOOSTER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-04030iGRN245,250,265,270,TRN22#..4FC,5FC200409-200805

main47028-04040iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-200805

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-04150iGRN305,310,325,330,TRN245,265..6FC200805-201802

sub47201-04170

main47201-04160iGRN225,245,TRN225,245..5F,6F200805-201802

sub47201-04180

main47201-04170iGRN305,310,325,330,TRN245,265..6FC201803-201909

main47201-04180iGRN305..6F201803-201909

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGRN305,310,325,330,TRN245,265200805-201909

main90029-20059iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-04050iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-200805

main47220-04090iGRN305..6F200910-201908

main47220-0C040iGRN245,250,265,270,TRN22#..4FC,5FC200409-200805

main47220-0R050iTRN220,240..4FC200910-201908

main47220-42100iGRN245,250,265,270,TRN22#..4FC,5FC200805-200910

main47220-42110iGRN225,245,265,TRN22#,24#,26#..5F,6F200805-200910

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iTRN220,240200409-201411

sub47230-01031

main47230-01031iGRN305,310,325,330,TRN245,265201412-201909

main47230-20140iGRN225,245,250,265,270,TRN22#,24#,26#200805-200910

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGRN245,250,265,270,TRN22#..4FC,5FC200409-201909

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-06180iGRN305,310,325,330,TRN245,265201711-201808

main47299-20060iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

main47299-25010iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201909

9008018070

main90080-18070

9017908204

main90179-08204
