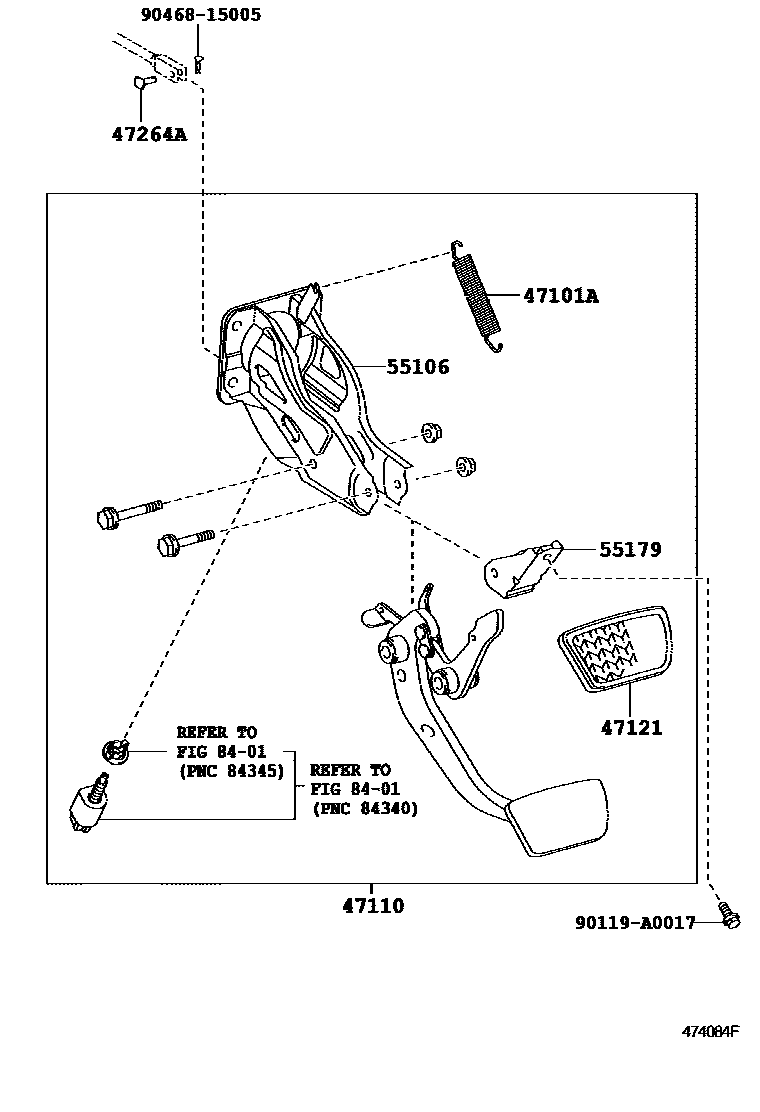

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-19006iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201909

47110SUPPORT ASSY, BRAKE PEDAL

main47110-04010iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-200805

main47110-04020iGRN245,250,265,270,TRN22#..4FC,5FC200409-200805

sub47110-04021

main47110-04051iGRN225,245,TRN22#,24#..5F,6F200805-201408

main47110-04061iGRN245,250,265,270,TRN22#..4FC,5FC200805-200911

sub47110-04062

main47110-04062iGRN245,250,265,270,TRN22#,24#,265..4FC,5FC200912-201109

sub47110-04070

main47110-04070iGRN245,250,265,270,TRN22#,24#,265..4FC,5FC201109-201408

main47110-04120iGRN225,245,TRN225,245..5F,6F201408-201508

main47110-04130iGRN245,250,265,270,TRN225,245,265..4FC,5FC201408-201508

main47110-04160iGRN305..6F201508-201909

main47110-04170iGRN305,310,325,330,TRN245,265..6FC201508-201909

47121PAD, BRAKE PEDAL

main31321-52010iGRN305..6F200409-201909

main47121-50020iGRN245,250,265,270,TRN22#..4FC,5FC200409-200911

main47121-52010iGRN245,250,265,270,TRN225,245,265..4FC,5FC200912-201909

47264APIN(FOR PUSH ROD)

main90240-06023iGRN225,245,250,265,270,TRN22#,24#,26#200409-201405

main90240-06027iTRN220,240201405-201909

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

55179REINFORCEMENT, BRAKE PEDAL SUPPORT

main55179-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

8401

90119A0017

main90119-A0017

9046815005

main90468-15005

9 parts on this diagram · 2 diagrams in section
