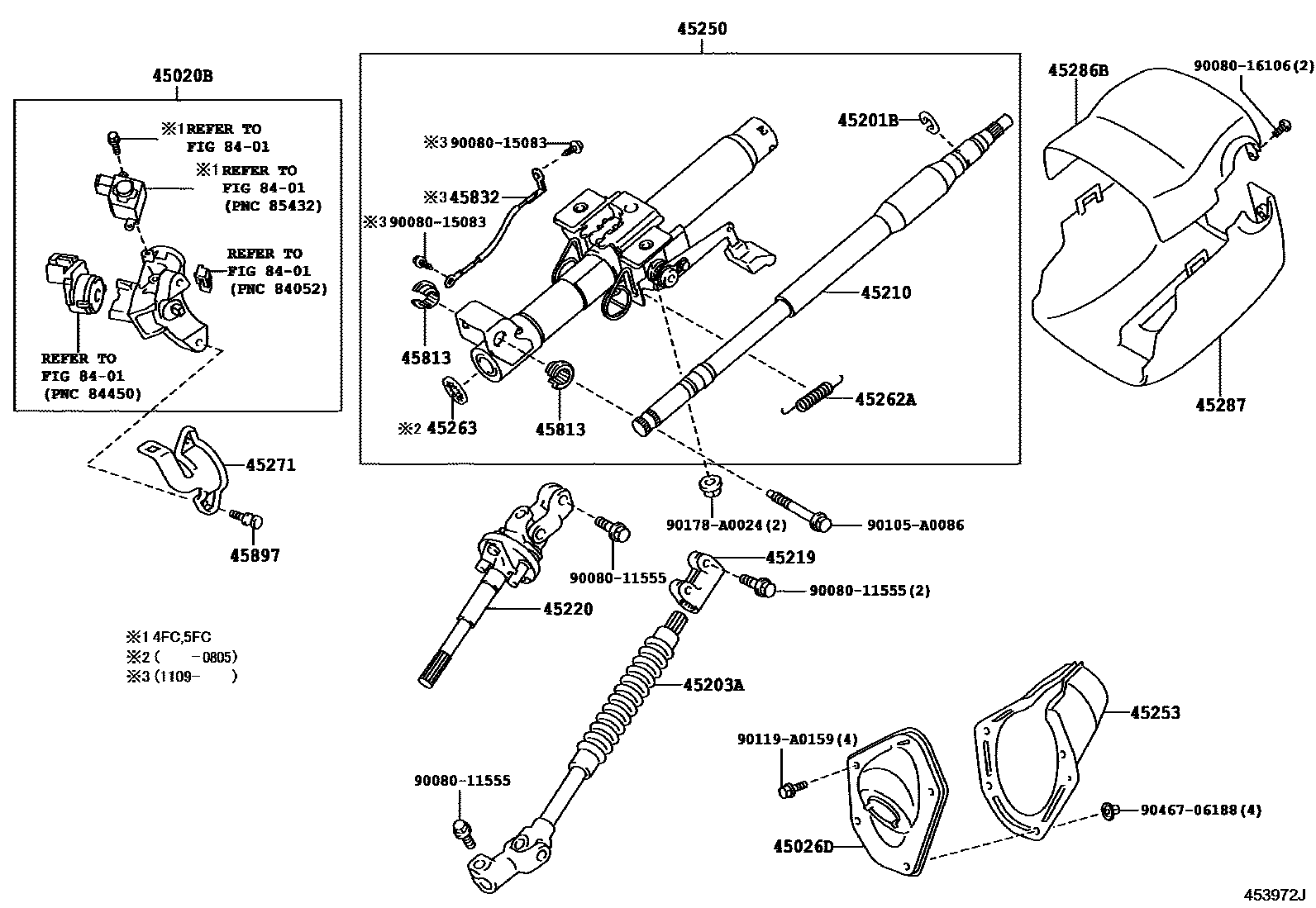

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45020-02500iGRN305,310,325,330,TRN245,265..6FC..SR5201508-202209

main45020-02510iGRN305..6F201508-201909

main45020-04010iGRN245,250,265,270,TRN22#..4FC,5FC200409-201508

main45020-04020iGRN225,245,TRN225,245..5F,6F200409-201508

45026DCOVER SUB-ASSY, STEERING COLUMN HOLE

main45025-04040iTRN245,265200409-201909

main45025-04050iGRN225,245,250,265,270201109-201909

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-21023iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=1.20

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-04010iGRN225,TRN22#200409-201403

sub45203-04011

main45203-04011iGRN225,TRN225201404-201508

main45203-04020iGRN265,TRN26#..5F,6F200409-201403

sub45203-04021

main45203-04021iTRN240201404-201508

main45203-04030iGRN305,310,325,330,TRN245,265201508-201909

45210SHAFT ASSY, STEERING MAIN

main45210-35260iGRN265,TRN26#..5F,6F200409-201508

45219YOKE, STEERING SLIDING

main45219-04010iTRN220,240200409-201508

main45219-04030iGRN305,310,325,330,TRN245,265201508-201909

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-04010iGRN225,245,250,265,270,TRN225,245,265200409-201508

main45220-04050iGRN305,310,325,330,TRN245,265201508-201909

45250COLUMN ASSY, STEERING

main45250-04220iGRN225,245,250,265,270,TRN22#,24#,26#200409-201109

main45250-04221iTRN220,240201109-201508

main45250-04230iGRN305,310,325,330,TRN245,265..SR5201508-202209

main45250-04240iGRN305,310,325,330..LIMD201508-201909

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main45250-04240iGRN305,310,325,330..LIMD201909

45253COVER, STEERING COLUMN HOLE

main45253-04040iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

45262ASPRING, TILT LEVER RETURN

main45262-35010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

45263RING, STEERING COLUMN, NO.1

main45263-35020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

45271CLAMP, STEERING COLUMN, UPPER

main45271-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

45286BCOVER, STEERING COLUMN, UPR

main45286-04110-B0iGRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245200409-201508

DK.GRAY,TRIM1#

main45286-04110-B0iGRN245,250,265,270,TRN225,245,265200409-201508

DK.GRAY,TRIM1#,4#

main45286-04130-C0iGRN305,310,325,330..LIMD201508-201711

BLACK,TRIM1#,2#,4#

main45286-04130-C0iGRN305,310,325,330..LIMD201508-201909

BLACK,TRIM1#,2#

main45286-04130-C0iGRN305,310,325,330..DCB..SR5201508-201711

BLACK,TRIM4#

main45286-04130-C0iGRN305,310,325,330..LIMD201711-201909

BLACK,TRIM2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-04110-B0iGRN225200409-201508

DK.GRAY,TRIM1#

main45287-04110-B0iGRN245,250,265,270,TRN225,245,265200409-201508

DK.GRAY,TRIM1#,4#

main45287-04140-C0iGRN305,310,325,330..DCB..SR5201508-202209

BLACK,TRIM1#,2#

main45287-04140-C0iTRN265;GRN305,325,TRN245..LCB201508-201711

BLACK,TRIM1#,2#,4#

main45287-04150-C0iGRN305,310,325,330..LIMD201508-201909

WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#,2#

main45287-04150-C0iGRN305,310,325,330..6FC..SR5201711-201909

BLACK,TRIM2#,4#

main45287-04150-C0iGRN305,310,325,330..6FC..SR5202209

BLACK,TRIM1#,2#

main45287-04150-C0iGRN305,310,325,330..LIMD201508-201711

BLACK,TRIM4#

main45287-04150-C0iGRN305,310,325,330..LIMD201508-201711

WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#,2#,4#

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-12020iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

OD=24-16

45832CABLE, TILT STEERING SUPPORT BOND

main45832-04010iTRN220,240201109-201508

45897BOLT, STEERING LOCK SET

main45897-08010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

8401

9008011555

main90080-11555

9008015083

main90080-15083

9008016106

main90080-16106

90105A0086

main90105-A0086

90119A0159

main90119-A0159

90178A0024

main90178-A0024

9046706188

main90467-06188

25 parts on this diagram · 2 diagrams in section
