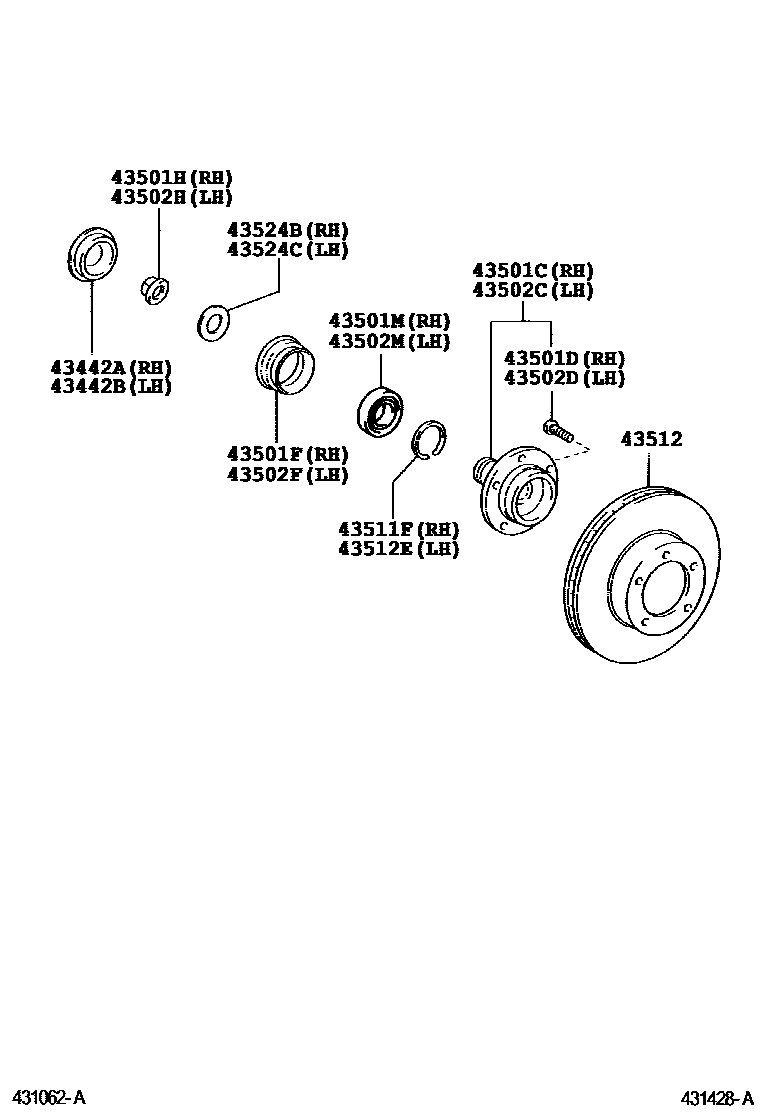

FRONT AXLE HUB

0001 1 0002 1 0003 1

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-04010iGRN225,265,270,TRN225,265200409-201909

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-04010iGRN265,TRN26#..5F,6F200409-201909

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-04080iGRN305,310,TRN245201508-201909

main43502-04112iGRN225,TRN22#200409-201508

main43502-04120iGRN245,250,TRN24#200409-200907

sub43502-04080

main43502-04130iGRN265,270,TRN26#200409-201508

sub43502-04140

main43502-04140iGRN325,330,TRN265201508-201909

main43502-35230iGRN225,TRN22#200907-201002

sub43502-04112

main43502-60200iGRN245,250,TRN24#200907-201009

sub43502-60201

main43502-60201iGRN245,250,TRN245201009-201508

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iGRN225,TRN22#200409-201508

main90942-02049iGRN305,310,325,330,TRN245,265201508-201909

TYPE A:REFER ILLUST.

main90942-02081iGRN305,310,325,330,TRN245,265201508-201909

TYPE B:REFER ILLUST.

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-A0003iTRN220200409-201508

main90312-96001iGRN305,310,TRN245200409-201909

NO.1

main90312-96001iGRN265,270,TRN26#200409-201006

main90316-A0001iGRN305,310,TRN245200409-201909

NO.2

sub90316-72001

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-A0013iGRN225,TRN22#200409-201508

main90178-28002iGRN305,310,TRN245200703-201909

main90179-28007iGRN245,250,TRN24#200409-200702

sub90178-28002

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-A0001iGRN225,TRN225200409-201508

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-04080iGRN305,310,TRN245201508-201909

main43502-04112iGRN225,TRN22#200409-201508

main43502-04120iGRN245,250,TRN24#200409-200907

sub43502-04080

main43502-04130iGRN265,270,TRN265200409-201508

sub43502-04140

main43502-04140iGRN325,330,TRN265201508-201909

main43502-35230iGRN225,TRN22#200907-201002

sub43502-04112

main43502-60200iGRN245,250,TRN24#200907-201009

sub43502-60201

main43502-60201iTRN240201009-201508

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iGRN245,250,265,270,TRN245,265200409-201508

main90942-02049iGRN305,310,325,330,TRN245,265201508-201909

TYPE A:REFER ILLUST.

main90942-02081iGRN305,310,325,330,TRN245,265201508-201909

TYPE B:REFER ILLUST.

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-A0003iGRN225,TRN22#200409-201508

main90312-96001iGRN265,270,TRN26#200409-201006

main90312-96001iGRN245,250,TRN24#200409-201909

NO.1

main90316-A0001iGRN245,250,TRN245200409-201909

NO.2

sub90316-72001

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-A0013iGRN225,TRN225200409-201508

main90178-28002iGRN245,250,TRN245200703-201909

main90179-28007iGRN245,250,TRN24#200409-200702

sub90178-28002

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-A0001iGRN225,TRN22#200409-201508

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-A0001iGRN225,TRN22#200409-201508

43512DISC, FRONT

main43512-04040iGRN225,TRN22#200409-200607

sub43512-04041

main43512-04041iGRN225,TRN22#200607-201508

main43512-04050iGRN245,250,265,270,TRN24#,26#200409-200607

sub43512-04051

main43512-04051iGRN245,250,265,270,TRN24#,26#200607-200704

sub43512-04052

main43512-04052iGRN305,310,325,330,TRN245,265200705-201909

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-A0001iGRN225,TRN22#200409-201508

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-35020iGRN225,TRN22#200409-201508

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-35020iGRN225,TRN22#200409-201508

17 parts on this diagram · 3 diagrams in section
