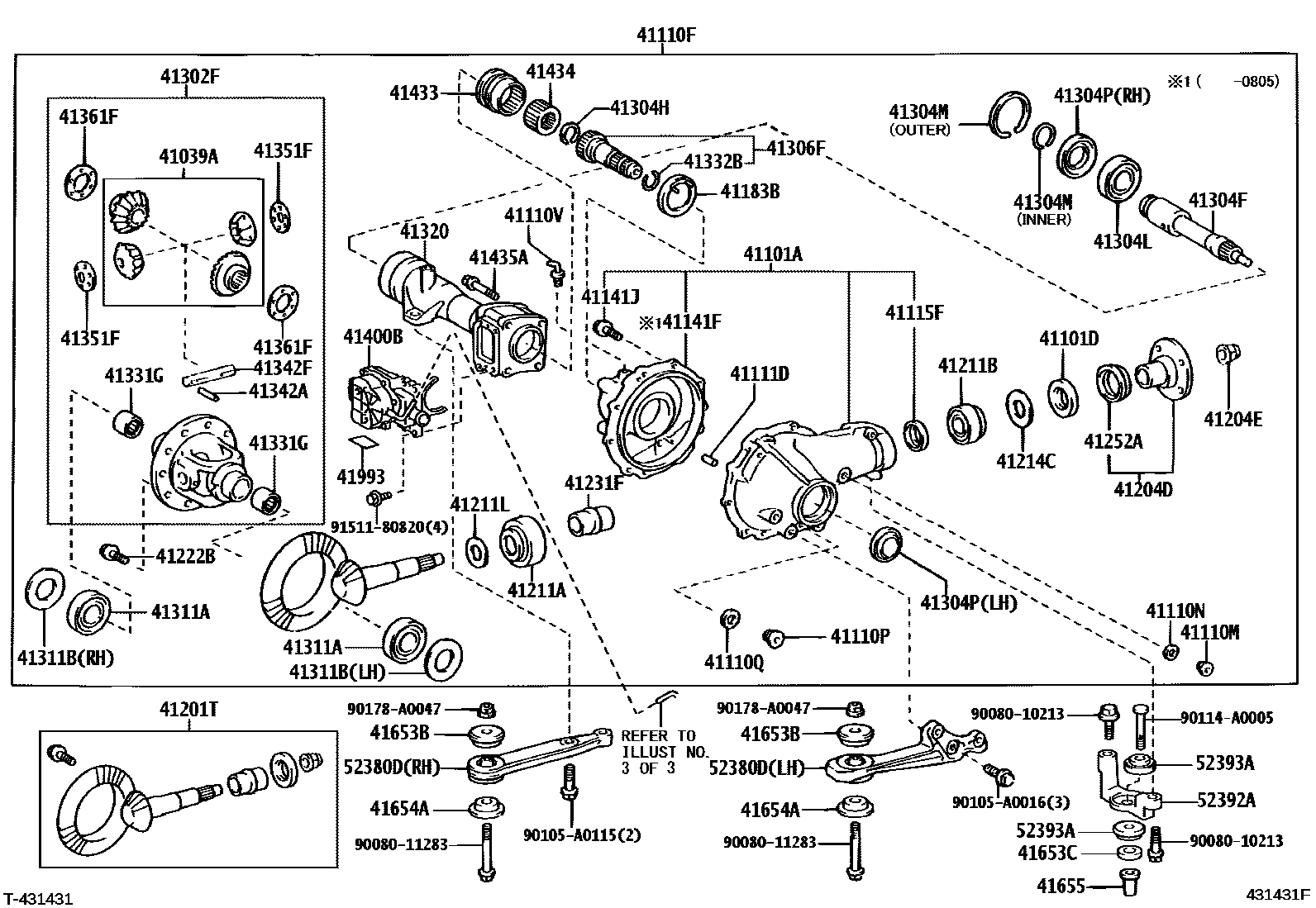

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=41:11=3.727,PNC 41101A=TYPE A
*FGR=41:11=3.727,PNC 41101A=TYPE A
*FGR=43:11=3.909
*FGR=43:10=4.300
*FGR=43:11=3.909
*FGR=43:10=4.300
*FGR=41:10=4.100
41110MPLUG, FRONT DIFFERENTIAL FILLER
TRD-PRO PACKAGE
TRD PRO PACKAGE
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
TRD PRO PACKAGE
TRD-PRO PACKAGE
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*10-1.25PX24.5-18
*10-1.25PX24.5-18,(J)
*10-1.25PX24.5-18,(L)
41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=41:10=4.100
*FGR=41:10=4.100,PNC 41101A=TYPE A
*FGR=43:11=3.909,TRD PRO PACKAGE
*FGR=43:11=3.909,PNC 41101A=TYPE A
*FGR=43:11=3.909,TRD-PRO PACKAGE
*FGR=43:10=4.300,TRD-PRO PACKAGE
*FGR=43:10=4.300,PNC 41101A=TYPE A
*FGR=43:10=4.300,TRD PRO PACKAGE
*FGR=41:11=3.727,PNC 41101A=TYPE A
*FGR=41:11=3.727,PNC 41101A=TYPE B
*FGR=41:11=3.727
*FGR=41:11=3.727,PNC 41101A=TYPE A
*FGR=43:11=3.909,PNC 41101A=TYPE B
*FGR=43:10=4.300,PNC 41101A=TYPE B
*FGR=41:11=3.727,PNC 41101A=TYPE B
*FGR=41:11=3.727,PNC 41101A=TYPE B
*FGR=41:10=4.100,PNC 41101A=TYPE B
*FGR=41:10=4.100,PNC 41101A=TYPE B
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
OD=52,T=1.70
OD=52,T=1.73
OD=52,T=1.76
OD=52,T=1.79
OD=52,T=1.82
OD=52,T=1.85
OD=52,T=1.88
OD=52,T=1.91
OD=52,T=1.94
OD=52,T=1.97
OD=52,T=2.00
OD=52,T=2.03
OD=52,T=2.06
OD=52,T=2.09
OD=52,T=2.12
OD=52,T=2.15
OD=52,T=2.18
OD=52,T=2.21
OD=52,T=2.24
OD=52,T=2.27
OD=52,T=2.30
OD=52,T=2.33
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
PNC 41101A=TYPE A
PNC 41101A=TYPE A
sub41301-71041
PNC 41101A=TYPE A
PNC 41101A=TYPE A
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
(J)
TRD-PRO PACKAGE,(J)
PNC 41101A=TYPE B
(L)
PNC 41101A=TYPE A
TRD PRO PACKAGE
TRD-PRO PACKAGE,(L)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
INNER
OUTER
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
RH,PNC 41101A=TYPE B
RH
RH,PNC 41101A=TYPE A
RH
LH
LH,PNC 41101A=TYPE A
41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
41311CASE, FRONT DIFFERENTIAL
PNC 41101A=TYPE B
PNC 41101A=TYPE A
PNC 41101A=TYPE A
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
PNC 41101A=TYPE B
PNC 41101A=TYPE A
TRD PRO PACKAGE
TRD-PRO PACKAGE
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.60,LH
T=1.66,LH
T=1.72,LH
T=1.78,LH
T=1.84,LH
T=1.90,LH
T=1.96,LH
T=2.02,LH
T=2.08,LH
T=2.14,LH
T=1.60,RH
T=1.66,RH
T=1.72,RH
T=1.78,RH
T=1.84,RH
T=1.90,RH
T=1.96,RH
T=2.02,RH
T=2.08,RH
T=2.14,RH
T=1.58,LH
T=1.62,LH
T=1.64,LH
T=1.68,LH
T=1.70,LH
T=1.74,LH
T=1.76,LH
T=1.80,LH
T=1.82,LH
T=1.86,LH
T=1.88,LH
T=1.92,LH
T=1.94,LH
T=1.98,LH
T=2.00,LH
T=2.04,LH
T=2.06,LH
T=2.10,LH
T=2.12,LH
T=2.16,LH
T=1.58,RH
T=1.62,RH
T=1.64,RH
T=1.68,RH
T=1.70,RH
T=1.74,RH
T=1.76,RH
T=1.80,RH
T=1.82,RH
T=1.86,RH
T=1.88,RH
T=1.92,RH
T=1.94,RH
T=1.98,RH
T=2.00,RH
T=2.04,RH
T=2.06,RH
T=2.10,RH
T=2.12,RH
T=2.16,RH
T=1.44,RH
T=1.46,RH
T=1.48,RH
T=1.50,RH
T=1.52,RH
T=1.54,RH
T=1.56,RH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
41320TUBE ASSY, FRONT DIFFERENTIAL
41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)
PNC 41101A=TYPE B
PNC 41101A=TYPE A
TRD PRO PACKAGE
LH,PNC 41101A=TYPE A
41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
PNC 41101A=TYPE A
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
41400BACTUATOR ASSY, DIFFERENTIAL MOTOR
41433SLEEVE, DIFFERENTIAL CLUTCH
41434HUB, DIFFERENTIAL CLUTCH
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
*12-1.25PX78-30
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41653CSTOPPER, FRONT DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
41993LABEL, DIFFERENTIAL OIL INFORMATION
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
LH
RH
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
52393ASUPPORT, FRONT DIFFERENTIAL, NO.2
9008010213
main90080-10213
9008011283
main90080-11283
90105A0016
main90105-A0016
90105A0115
main90105-A0115
90114A0005
main90114-A0005
90178A0047
main90178-A0047
9151180820
