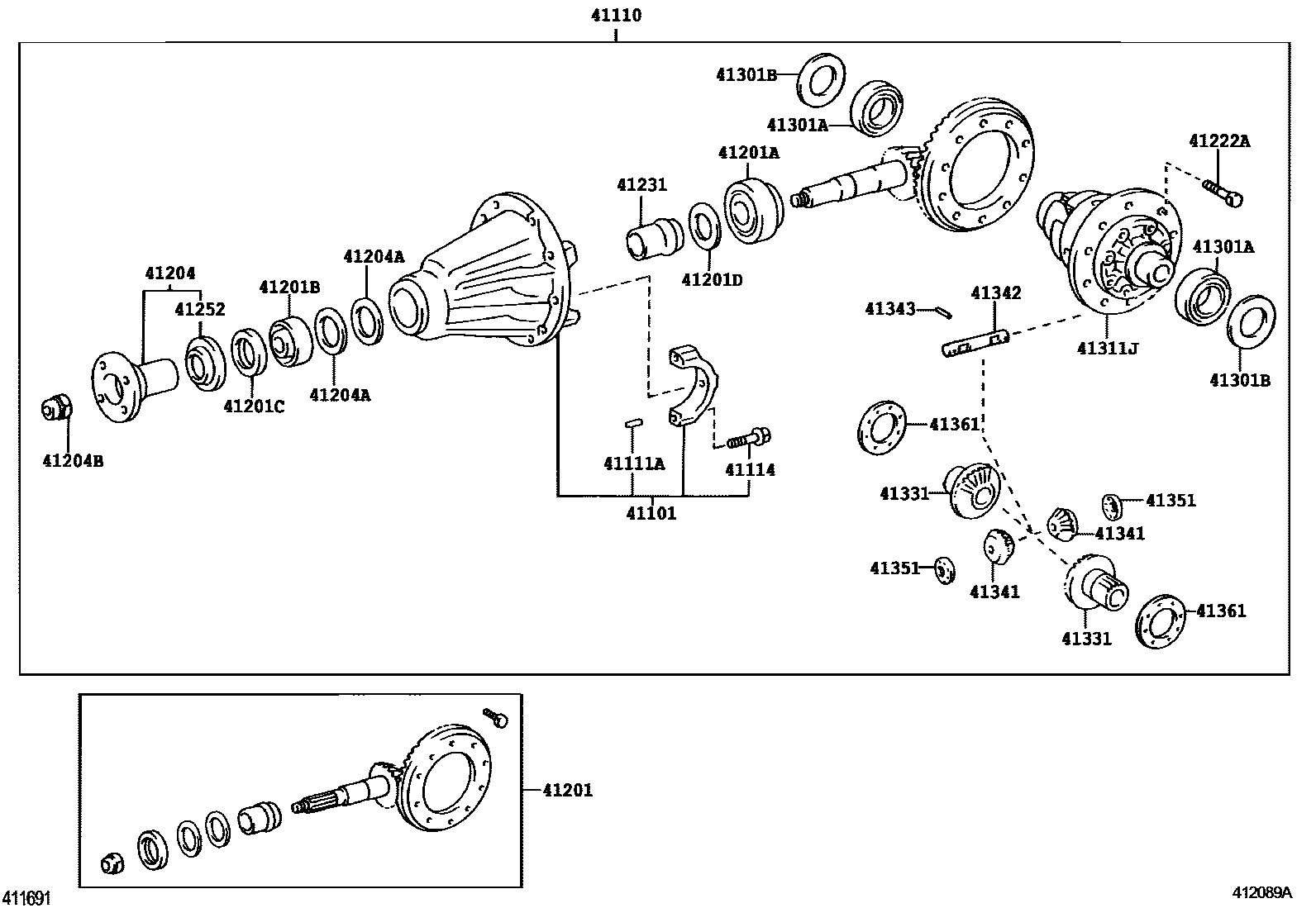

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1W(LSD) 0004 1W(REAR DIFF LOCK) 0005 1W(REAR DIFF LOCK) 0006 1 0007 1W/O(DIFFERENTIAL LOCK) 0008 1W/O(DIFFERENTIAL LOCK) 0009 1W(DIFFERENTIAL LOCK) 0010 1W(DIFFERENTIAL LOCK) 0011 1W/O(DIFFERENTIAL LOCK) 0012 1W/O(DIFFERENTIAL LOCK) 0013 1W(DIFFERENTIAL LOCK)

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K011iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41101-0K011iGRN305..DCB..6FC..SR5201711-201909

OFF ROAD PACKAGE

main41101-0K011iGRN305,310,325,330,TRN245,265..6FC201508-201909

TRD PRO PACKAGE

main41101-0K011iGRN305,310,325,330,TRN245,265..6FC201909

main41101-0K070iGRN305..6F201508-201909

main41101-34030iTRN24#,26#;GRN245,250,265,270,TRN22#..4FC,5FC,6F200409-200805

WITH(REAR DIFF LOCK)

main41101-34030iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41101-34030iTRN240;TRN220..4FC201109-201408

main41101-34030iTRN245;GRN245,250,265,270,TRN225,265..4FC,5FC,6F201109-201508

TRD-PRO PACKAGE

main41101-35140iTRN220..5F200409-201508

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-04130iGRN305,310,325,330..6FC201508-201909

*FGR=43:11=3.909

main41110-04130iGRN305,310,325,330..6FC201711-201909

*FGR=43:11=3.909,OFF ROAD PACKAGE

main41110-04130iGRN305,310,325,330..6FC..SR5201508-201909

*FGR=43:11=3.909,TRD PRO PACKAGE

main41110-04130iGRN305,310,325,330..6FC201508-201711

*FGR=43:11=3.909,WITH(*FTP & *EUC:PNC51405A & 51406A)

main41110-04140iTRN245,265201508-201909

*FGR=43:10=4.300

main41110-0K580iTRN245..5F201508-201711

*FGR=43:11=3.909

main41110-0K600iGRN305..6F201508-201909

*FGR=43:10=4.300

main41110-34340iTRN24#,265200409-201211

*FGR=41:10=4.100

sub41110-34341

main41110-34341iTRN245,265201211-201508

*FGR=41:10=4.100

main41110-35A30iTRN22#..5F200409-201211

*FGR=43:13=3.307

sub41110-35A31

main41110-35A31iTRN225..5F201211-201508

*FGR=43:13=3.307

main41110-35A40iTRN22#..4FC200409-201312

*FGR=43:12=3.583

sub41110-35A41

main41110-35A41iTRN220..4FC201312-201508

*FGR=43:12=3.583

main41110-35A50iGRN245,265200805-201312

*FGR=41:11=3.727,WITH(*FTP & *EUC:PNC51405A & 51406A)

sub41110-35A51

main41110-35A50iGRN245,250,265,270200409-201312

*FGR=41:11=3.727

sub41110-35A51

main41110-35A50iGRN245,250,265,270200409-200805

*FGR=41:11=3.727,WITH(REAR DIFF LOCK)

sub41110-35A51

main41110-35A50iGRN245,250,265,270201109-201312

*FGR=41:11=3.727,TRD-PRO PACKAGE

sub41110-35A51

main41110-35A51iGRN245,265201312-201508

*FGR=41:11=3.727,TRD-PRO PACKAGE

main41110-35A51iGRN245,265201312-201508

*FGR=41:11=3.727,WITH(*FTP & *EUC:PNC51405A & 51406A)

main41110-35A51iGRN245,265201312-201508

*FGR=41:11=3.727

main41110-35A60iGRN225200409-200805

*FGR=41:13=3.153

main41110-35B40iGRN225200805-201508

*FGR=41:13=3.153

41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)

main90250-04091iGRN265..6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90250-04091iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main90250-04091iGRN245,265201109-201508

TRD-PRO PACKAGE

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-T0081iGRN305,310,325,330..6FC..SR5201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90105-T0081iGRN305,310,325,330..6FC..SR5201508-201909

TRD PRO PACKAGE

main90105-T0081iGRN305,310,325,330,TRN245,265..6FC201909

main90105-T0081iGRN305,310,325,330,TRN245,265..6FC201711-201909

OFF ROAD PACKAGE

main90109-T0030iGRN305..6F201711-201909

TRD PRO PACKAGE

main90109-T0030iGRN305..6F201711-201909

OFF ROAD PACKAGE

main90109-T0030iGRN305..6F201909

TRD-PRO PACKAGE

main90109-T0030iGRN305,TRN245..5F,6F201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90901-05003iGRN225,245,250,265,270,TRN225,245,265200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90901-05003iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main90901-05003iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09C30iTRN245,265201508-201909

*FGR=43:10=4.300

main41201-79525iGRN305,310,325,330..6FC..SR5201508-201711

*FGR=43:11=3.909

sub41201-79526

main41201-79525iTRN245..5F201508-201711

*FGR=43:11=3.909,WITH(*FTP & *EUC:PNC51405A & 51406A)

sub41201-79526

main41201-79535iGRN305..6F201508-201903

*FGR=43:10=4.300

sub41201-79536

main41201-79536iGRN305..6F201903-201909

*FGR=43:10=4.300

main41201-80074iGRN225200409-201508

*FGR=41:13=3.153

main41201-80075iTRN22#..4FC200409-201312

*FGR=43.12=3.583

sub41201-80780

main41201-80161iTRN24#,26#200409-201211

*FGR=41:10=4.100

sub41201-80594

main41201-80212iGRN245,250,265,270200805-201312

*FGR=41:11=3.727,WITH(*FTP & *EUC:PNC51405A & 51406A)

sub41201-80770

main41201-80212iGRN245,250,265,270200409-201312

*FGR=41:11=3.727

sub41201-80770

main41201-80212iGRN245,250,265,270201109-201312

*FGR=41:11=3.727,TRD-PRO PACKAGE

sub41201-80770

main41201-80258iTRN22#..5F200409-201211

*FGR=43:13=3.307

sub41201-80593

main41201-80593iTRN225..5F201211-201508

*FGR=43:13=3.307

main41201-80594iTRN240201211-201508

*FGR=41:10=4.100

main41201-80770iGRN245,265201312-201508

*FGR=41:11=3.727,WITH(*FTP & *EUC:PNC51405A & 51406A)

main41201-80770iGRN245,265201312-201508

*FGR=41:11=3.727

main41201-80770iGRN245,265201312-201508

*FGR=41:11=3.727,TRD-PRO PACKAGE

main41201-80780iTRN220..4FC201312-201508

*FGR=43:12=3.583

main41201-80789iGRN305,310,325,330..6FC201508-201909

*FGR=43:11=3.909

main41201-80789iGRN305..DCB..6FC..SR5201711-201909

*FGR=43:11=3.909,OFF ROAD PACKAGE

main41201-80789iGRN305,310,325,330..6FC201508-201711

*FGR=43:11=3.909,WITH(*FTP & *EUC:PNC51405A & 51406A)

main41201-80789iGRN305,310,325,330..6FC201508-201909

*FGR=43:11=3.909,TRD PRO PACKAGE

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40068iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main90366-40068iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90366-40068iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

main90366-T0065iGRN305..DCB..6FC..SR5201711-201909

OFF ROAD PACKAGE

main90366-T0065iGRN305,TRN245..5F,6F201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90366-T0065iGRN305..6F201711-201909

TRD PRO PACKAGE

main90366-T0065iGRN305..6F201909

TRD-PRO PACKAGE

main90366-T0080iGRN305,310,325,330,TRN245,265..6FC201508-201909

TRD PRO PACKAGE

main90366-T0080iGRN305,310,325,330..6FC..SR5201711-201909

OFF ROAD PACKAGE

main90366-T0080iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90366-T0080iGRN305,310,325,330,TRN245,265..6FC201909

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-T0062iGRN305..DCB..6FC..SR5201909

TRD-PRO PACKAGE

main90366-T0062iGRN305..DCB..6FC..SR5201711-201909

OFF ROAD PACKAGE

main90366-T0062iGRN305..DCB..6FC..SR5201711-201909

TRD PRO PACKAGE

main90366-T0062iGRN305,TRN245..5F,6F201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90366-T0083iGRN305,310,325,330..6FC..SR5201711-201909

OFF ROAD PACKAGE

main90366-T0083iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90366-T0083iGRN305,310,325,330,TRN245,265..6FC201508-201909

TRD PRO PACKAGE

main90366-T0083iGRN305,310,325,330,TRN245,265..6FC201909

main90368-34007iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main90368-34007iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

main90368-34007iGRN245,265200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-44007iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main90311-44007iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90311-44007iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

main90311-T0065iGRN305..6F201909

TRD-PRO PACKAGE

main90311-T0065iGRN305,TRN245..5F,6F201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90311-T0065iGRN305..6F201711-201909

OFF ROAD PACKAGE

main90311-T0065iGRN305..6F201711-201909

TRD PRO PACKAGE

main90311-T0068iGRN305,310,325,330,TRN245,265..6FC201711-201909

OFF ROAD PACKAGE

main90311-T0068iGRN305,310,325,330,TRN245,265..6FC201508-201909

TRD PRO PACKAGE

main90311-T0068iGRN305,310,325,330,TRN245,265..6FC201909

main90311-T0068iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-70001iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201106

T=1.87,MARK 87,WITH(*FTP & *EUC:PNC51405A & 51406A)

sub90201-70002

main90201-70001iGRN245;GRN265..5FC200409-201106

T=1.87,MARK 87

sub90201-70002

main90201-70002iGRN245,265200805-201508

T=1.88,MARK 88,WITH(*FTP & *EUC:PNC51405A & 51406A)

main90201-70002iGRN245,265200409-201508

T=1.88,MARK 88

main90201-70002iGRN245,265201109-201508

T=1.88,MARK 88,TRD-PRO PACKAGE

main90201-70003iGRN265,TRN26#..5F,6F200409-201106

T=1.89,MARK 89

sub90201-70004

main90201-70004iGRN265,TRN26#..5F,6F200409-201508

T=1.90,MARK 90

main90201-70005iGRN225,245,250,265,270,TRN22#,24#,26#200409-201106

T=1.91,MARK 91

sub90201-70006

main90201-70006iGRN265,TRN26#..5F,6F200409-201508

T=1.92,MARK 92

main90201-70007iGRN265,TRN26#..5F,6F200409-201106

T=1.93,MARK 93

sub90201-70008

main90201-70008iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=1.94,MARK 94

main90201-70009iGRN265,TRN26#..5F,6F200409-201106

T=1.95,MARK 95

sub90201-70010

main90201-70010iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=1.96,MARK 96

main90201-70011iGRN225,245,250,265,270,TRN22#,24#,26#200409-201106

T=1.97,MARK 97

sub90201-70012

main90201-70012iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=1.98,MARK 98

main90201-70013iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201106

T=1.99,MARK 99

sub90201-70014

main90201-70014iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=2.00,MARK 00

main90201-70015iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201106

T=2.01,MARK 01

sub90201-70016

main90201-70016iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=2.02,MARK 02

main90201-70017iGRN265,TRN26#..5F,6F200409-201106

T=2.03,MARK 03

sub90201-70018

main90201-70018iGRN265,TRN26#..5F,6F200409-201508

T=2.04,MARK 04

main90201-70019iGRN225,245,250,265,270,TRN22#,24#,26#200409-201106

T=2.05,MARK 05

sub90201-70020

main90201-70020iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.06,MARK 06

main90201-70021iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201106

T=2.07,MARK 07

sub90201-70022

main90201-70022iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=2.08,MARK 08

main90201-70023iGRN225,245,250,265,270,TRN22#,24#,26#200409-201106

T=2.09,MARK 09

sub90201-70024

main90201-70024iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.10,MARK 10

main90201-70025iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201106

T=2.11,MARK 11

sub90201-70026

main90201-70026iTRN220,240200409-201508

T=2.12,MARK 12

main90201-70027iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201106

T=2.13,MARK 13

sub90201-70028

main90201-70028iTRN220,240200409-201508

T=2.14,MARK 14

main90201-70029iGRN225,245,250,265,270,TRN22#,24#,26#200409-201106

T=2.15,MARK 15

sub90201-70030

main90201-70030iTRN220,240200409-201508

T=2.16,MARK 16

main90201-70031iGRN225,245,250,265,270,TRN22#,24#,26#200409-201106

T=2.17,MARK 17

sub90201-70032

main90201-70032iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.18,MARK 18

main90201-70033iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201106

T=2.19,MARK 19

sub90201-70034

main90201-70034iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=2.20,MARK 20

main90201-70035iGRN265,TRN26#..5F,6F200409-201106

T=2.21,MARK 21

sub90201-70036

main90201-70036iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=2.22,MARK 22

main90201-70037iGRN265,TRN26#..5F,6F200409-201106

T=2.23,MARK 23

sub90201-70038

main90201-70038iGRN265,TRN26#..5F,6F200409-201508

T=2.24,MARK 24

main90201-70039iGRN265,TRN26#..5F,6F200409-201106

T=2.25,MARK 25

sub90201-70040

main90201-70040iGRN265,TRN26#..5F,6F200409-201508

T=2.26,MARK 26

main90201-70041iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201106

T=2.27,MARK 27

sub90201-70042

main90201-70042iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.28,MARK 28

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K100iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41204-0K100iGRN305,310,325,330,TRN245,265..6FC201909

main41204-0K100iGRN305..DCB..6FC..SR5201508-201909

TRD PRO PACKAGE

main41204-0K100iGRN305..DCB..6FC..SR5201711-201909

OFF ROAD PACKAGE

main41204-0K110iGRN305..DCB..6FC..SR5201909

TRD-PRO PACKAGE

main41204-0K110iGRN305,310,325,330..6FC..SR5201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41204-0K110iGRN305..6F201711-201909

OFF ROAD PACKAGE

main41204-0K110iGRN305..6F201711-201909

TRD PRO PACKAGE

main41204-34030iGRN245,265201109-201508

TRD-PRO PACKAGE

main41204-34030iGRN245,265200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41204-34030iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-35006iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main90201-35006iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90201-35006iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iGRN305,310,325,330,TRN245,265..6FC201508-201909

OD=39.5

main90177-22003iGRN305..DCB..6FC..SR5201508-201909

OD=39.5,TRD PRO PACKAGE

main90177-22003iGRN305..DCB..6FC..SR5201711-201909

OD=39.5,OFF ROAD PACKAGE

main90177-22003iGRN305..DCB..6FC..SR5201508-201711

OD=39.5,WITH(*FTP & *EUC:PNC51405A & 51406A)

main90179-22029iGRN305..DCB..6FC..SR5201909

OD=43,TRD-PRO PACKAGE

main90179-22029iGRN305,310,325,330..6FC..SR5201508-201909

OD=43

main90179-22029iGRN305,310,325,330..6FC..SR5201508-201711

OD=43,WITH(*FTP & *EUC:PNC51405A & 51406A)

main90179-22029iGRN305..6F201711-201909

OD=43,OFF ROAD PACKAGE

main90179-22029iGRN305..6F201711-201909

OD=43,TRD PRO PACKAGE

main90179-24012iGRN245,265201109-201508

OD=34.6,TRD-PRO PACKAGE

main90179-24012iGRN245,265200805-201508

OD=34.6,WITH(*FTP & *EUC:PNC51405A & 51406A)

main90179-24012iGRN245,265200409-201508

OD=34.6

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main90901-05002

main41222-60010

main90105-10277

main90101-11353

main90105-10569

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90901-05002iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90901-05002iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main90901-05002iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iGRN305..DCB..6FC..SR5201711-201909

OFF ROAD PACKAGE

main41231-24010iGRN305,310,325,330,TRN245,265..6FC201909

main41231-24010iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41231-24010iGRN305,310,325,330,TRN245,265..6FC201508-201909

TRD PRO PACKAGE

main41231-34010iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41231-34010iTRN220,240200409-201408

main41231-34010iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

main41231-71010iGRN305..DCB..6FC..SR5201711-201909

TRD PRO PACKAGE

main41231-71010iGRN305,TRN245..5F,6F201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41231-71010iGRN305..6F201711-201909

OFF ROAD PACKAGE

main41231-71010iGRN305..6F201909

TRD-PRO PACKAGE

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-34010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main41252-34010iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41252-34010iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-04010iGRN305,310,325,330,TRN245,265..6FC201909

main41301-04010iGRN305,310,325,330..6FC..SR5201711-201909

OFF ROAD PACKAGE

main41301-04010iGRN305,310,325,330..6FC..SR5201711-201909

TRD PRO PACKAGE

main41301-04010iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41301-0K120iGRN305..6F201508-201909

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-51001iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90366-51001iGRN225,245,250,265,270,TRN22#,24#,26#200409-201408

main90366-51001iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

main90366-T0010iGRN305..DCB..6FC..SR5201711-201909

OFF ROAD PACKAGE

main90366-T0010iGRN305,310,325,330,TRN245,265..6FC201508-201909

TRD PRO PACKAGE

main90366-T0010iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90366-T0010iGRN305,310,325,330,TRN245,265..6FC201909

main90366-T0068iGRN305..6F201711-201909

OFF ROAD PACKAGE,LH

main90366-T0068iGRN305,TRN245..5F,6F201508-201909

LH

main90366-T0068iGRN305,TRN245..5F,6F201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A),LH

main90366-T0068iGRN305..6F201711-201909

TRD PRO PACKAGE,LH

main90366-T0068iGRN305..6F201909

TRD-PRO PACKAGE,LH

main90366-T0071iGRN305..DCB..6FC..SR5201508-201909

RH

main90366-T0071iGRN305..DCB..6FC..SR5201711-201909

OFF ROAD PACKAGE,RH

main90366-T0071iGRN305..DCB..6FC..SR5201711-201909

TRD PRO PACKAGE,RH

main90366-T0071iGRN305,310,325,330..6FC..SR5201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A),RH

main90366-T0071iGRN305..6F201909

TRD-PRO PACKAGE,RH

41301BWASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)

main90201-70064iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.58

main90201-70064iGRN245;GRN265..5FC200805-201508

T=2.58,WITH(*FTP & *EUC:PNC51405A & 51406A)

main90201-70064iGRN245,265201109-201508

T=2.58,TRD-PRO PACKAGE

main90201-70065iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=2.60

main90201-70066iTRN220,240200409-201508

T=2.62

main90201-70067iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.64

main90201-70068iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=2.66

main90201-70069iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=2.68

main90201-70070iTRN220,240200409-201508

T=2.70

main90201-70071iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=2.72

main90201-70072iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=2.74

main90201-70073iTRN220,240200409-201508

T=2.76

main90201-70074iTRN220,240200409-201508

T=2.78

main90201-70075iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.80

main90201-70076iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.82

main90201-70077iTRN220,240200409-201508

T=2.84

main90201-70078iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=2.86

main90201-70079iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=2.88

main90201-70080iGRN265,TRN26#..5F,6F200409-201508

T=2.90

main90201-70081iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=2.92

main90201-70082iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=2.94

main90201-70083iGRN265,TRN26#..5F,6F200409-201508

T=2.96

main90201-70084iGRN265,TRN26#..5F,6F200409-201508

T=2.98

main90201-70085iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=3.00

main90201-70086iGRN265,TRN26#..5F,6F200409-201508

T=3.02

main90201-70087iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=3.04

main90201-70088iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=3.06

main90201-70089iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=3.08

main90201-70090iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=3.10

main90201-70091iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=3.12

main90201-70092iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=3.14

main90201-70093iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=3.16

main90201-70094iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=3.18

main90201-70095iGRN265,TRN26#..5F,6F200409-201508

T=3.20

main90201-70096iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=3.22

main90201-70097iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=3.24

main90201-70098iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=3.26

main90201-70099iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=3.28

main90201-70100iGRN225,245,250,265,270,TRN22#,24#,26#200409-201508

T=3.30

main90201-70101iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=3.32

main90201-70102iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=3.34

main90201-70103iGRN265,TRN26#..5F,6F200409-201508

T=3.36

main90201-70104iTRN220,240200409-201508

T=3.38

main90201-70105iGRN265,TRN26#..5F,6F200409-201508

T=3.40

main90201-70106iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=3.42

main90201-70107iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201508

T=3.44

main90201-70108iTRN220,240200409-201508

T=3.46

main90201-70109iGRN225,245,250,265,270,TRN225,245,265200409-201508

T=3.48

41311JCASE, REAR DIFFERENTIAL

main41311-34010iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41311-34010iTRN220,240201109-201408

main41311-34010iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

main41311-34010iGRN245,250,265,270,TRN22#,24#,26#200409-200805

WITH(REAR DIFF LOCK)

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-34012iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41331-34012iTRN220,240201109-201408

main41331-34012iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

main41331-34012iGRN245,250,265,270,TRN22#,24#,26#200409-200805

WITH(REAR DIFF LOCK)

41341PINION, REAR DIFFERENTIAL

main41341-34012iGRN245,265201109-201508

TRD-PRO PACKAGE

main41341-34012iGRN245,250,265,270,TRN22#,24#,26#200409-201408

main41341-34012iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K060iGRN305,310,325,330,TRN245,265..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41342-0K060iGRN305,310,325,330,TRN245,265..6FC201508-201909

TRD PRO PACKAGE

main41342-0K060iGRN305,310,325,330,TRN245,265..6FC201711-201909

OFF ROAD PACKAGE

main41342-0K060iGRN305,310,325,330,TRN245,265..6FC201909

main41342-0K070iGRN305,TRN245..5F,6F201508-201909

main41342-34011iGRN265..6F200805-201012

WITH(*FTP & *EUC:PNC51405A & 51406A)

sub41342-34012

main41342-34011iGRN245,250,265,270,TRN22#,24#,26#200409-200805

WITH(REAR DIFF LOCK)

sub41342-34012

main41342-34012iGRN245,265201012-201112

WITH(*FTP & *EUC:PNC51405A & 51406A)

sub41342-34013

main41342-34012iGRN245,265201109-201112

TRD-PRO PACKAGE

sub41342-34013

main41342-34013iGRN245,265201112-201508

TRD-PRO PACKAGE

main41342-34013iGRN245,265201112-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41342-34013iTRN220,240201112-201408

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iGRN245,250,265,270,TRN22#,24#,26#200409-200805

WITH(REAR DIFF LOCK)

main90250-06058iGRN265,TRN26#..5F,6F200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main90250-06058iTRN220,240201109-201408

main90250-06058iGRN225,245,250,265,270,TRN225,245,265201109-201508

TRD-PRO PACKAGE

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K010iGRN305..DCB..6FC..SR5201711-201909

OFF ROAD PACKAGE

main41351-0K010iGRN305..DCB..6FC..SR5201508-201909

TRD PRO PACKAGE

main41351-0K010iGRN305,310,325,330..6FC201610-201909

(L)

main41351-0K010iTRN245,265..6FC201508-201610

main41351-0K010iGRN305,310,325,330..6FC201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41351-0K040iGRN305..6F201508-201909

main41351-30060iGRN225200409-200805

WITH(REAR DIFF LOCK)

main41351-30060iGRN225200409-200805

WITH(LSD)

main41351-34010iGRN245,265201109-201508

TRD-PRO PACKAGE

main41351-34010iGRN245,265200805-201508

WITH(*FTP & *EUC:PNC51405A & 51406A)

main41351-34010iTRN220,240200409-201408

main41351-35030iTRN245,265201610-201909

(J)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K110iGRN305..6F201508-201909

T=1.45

main41361-0K300iGRN305..6F201508-201909

T=1.50

main41361-0K310iGRN305..6F201508-201909

T=1.55

main41361-0K320iGRN305,TRN245..5F,6F201508-201909

T=1.60

main41361-0K330iGRN305..6F201508-201909

T=1.65

main41361-0K340iGRN305..6F201508-201909

T=1.70

main41361-0K350iGRN305..6F201508-201909

T=1.75

main41361-0K360iGRN305..6F201508-201909

T=1.80

main41361-0K370iGRN305,TRN245..5F,6F201508-201909

T=1.85

main41361-14201iGRN225200409-200805

T=1.80,WITH(LSD)

main41361-14201iGRN225200409-200805

T=1.80

main41361-14211iGRN225200409-200805

T=1.70,MARK N,WITH(LSD)

main41361-14211iGRN225200409-200805

T=1.70,MARK N

main41361-34010iGRN305,310,325,330..6FC..SR5200805-201711

T=1.50,WITH(*FTP & *EUC:PNC51405A & 51406A)

main41361-34010iGRN305..DCB..6FC..SR5201508-201909

T=1.50,TRD PRO PACKAGE

main41361-34010iGRN305..DCB..6FC..SR5200409-201909

T=1.50

main41361-34010iGRN305..DCB..6FC..SR5201711-201909

T=1.50,OFF ROAD PACKAGE

main41361-34010iGRN225,245,250,265,270,TRN225,245,265201109-201508

T=1.50,TRD-PRO PACKAGE

main41361-34010iGRN245,265200409-200805

T=1.50,WITH(REAR DIFF LOCK)

main41361-34020iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201909

T=1.55

main41361-34030iGRN305,310,325,330,TRN245,265..6FC200409-201909

T=1.60

main41361-34040iTRN220,240200409-201909

T=1.65

main41361-34050iTRN220,240200409-201909

T=1.70

main41361-34060iGRN305,310,325,330,TRN245,265..6FC200409-201909

T=1.75

main41361-34070iTRN220,240200409-201909

T=1.80

main41361-34080iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200409-201909

T=1.85

main41361-34090iGRN265,TRN26#..5F,6F200409-201909

T=1.90

26 parts on this diagram · 12 diagrams in section
