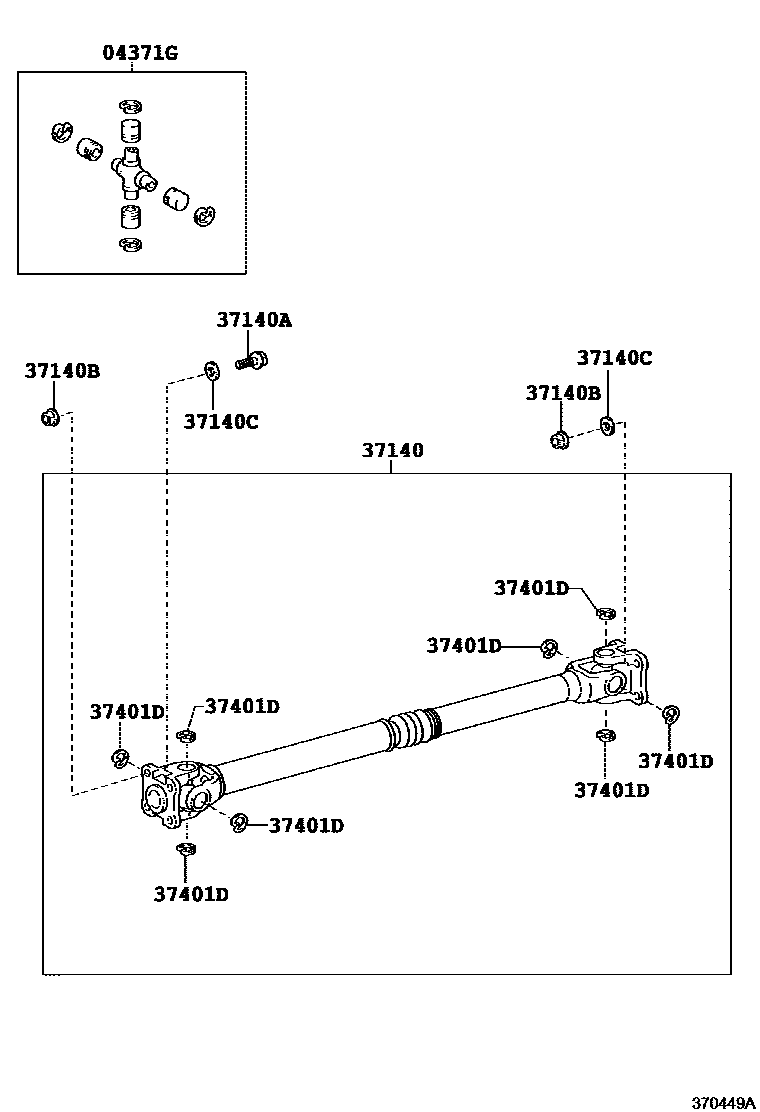

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0003 1REAR 0004 1REAR 0005 1 0006 1 0007 1REAR 0008 1REAR 0009 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-04030iTRN220,260200409-201711

sub04371-04031

main04371-04031iGRN325,330,TRN265201711-201909

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-04043iGRN245,250,TRN24#200409-201711

sub04371-04044

main04371-04044iGRN305,310,TRN245201711-201909

37140SHAFT ASSY, PROPELLER, FRONT

main37140-04040iGRN245..6F200409-201007

sub37140-04041

main37140-04041iGRN245..6F201008-201508

main37140-04050iGRN245,250,TRN24#..5F,5FC200409-201007

sub37140-04051

main37140-04051iGRN245,250,TRN24#..5F,5FC201008-201707

sub37140-04052

main37140-04052iGRN305,TRN245..5F,6F201708-201901

sub37140-04053

main37140-04053iGRN305..6F201902-201909

main37140-04060iTRN24#..4FC201006-201007

sub37140-04061

main37140-04061iTRN245..4FC201008-201508

main37140-04070iGRN305,310..6FC201508-201707

sub37140-04071

main37140-04071iGRN305,310..6FC201708-201901

sub37140-04072

main37140-04072iGRN305,310..6FC201902-201909

main37140-04090iTRN245..6FC201508-201707

sub37140-04091

main37140-04091iTRN245..6FC201708-201901

sub37140-04092

main37140-04092iTRN245201902-201909

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-A0075iTRN240200409-201909

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-A0045iGRN245,250,TRN24#200409-201909

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-11013iGRN245,250,TRN24#200409-201909

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90080-52038iGRN305,310,TRN245200409-201909

T=1.64,BLUE

main90080-52039iGRN245,250,TRN245200409-201909

T=1.59,YELLOW

main90080-52040iGRN245,250,TRN245200409-201909

T=1.54,SILVER

main90080-52041iGRN245,250,TRN24#200409-201909

T=1.49,COPPER

main90080-52042iGRN305,310,TRN245200409-201909

T=1.51,BLACK

main90080-52043iGRN245,250,TRN245200409-201711

T=1.44,RED

main90080-52044iGRN245,250,TRN245..5F,5FC,6F200409-201711

T=1.38,GREEN

main90080-52156iTRN240200409-201708

T=1.52

7 parts on this diagram · 8 diagrams in section
