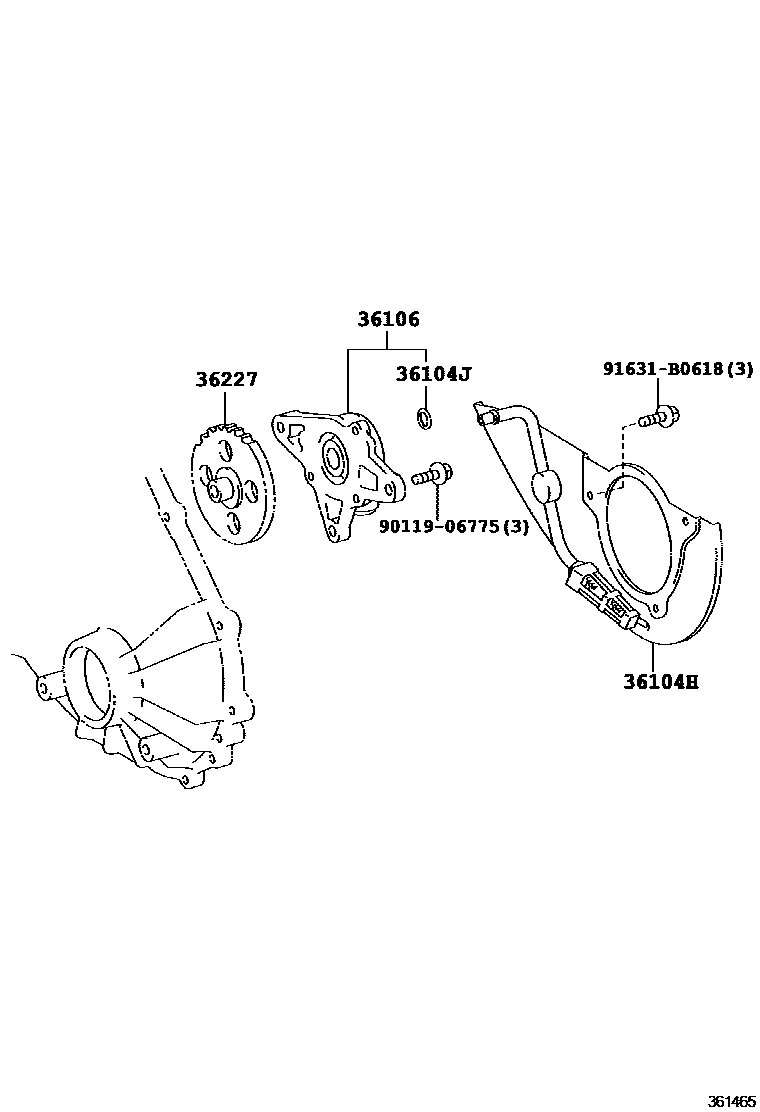

TRANSFER OIL PUMP

0001 1 0002 1

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iGRN245,250,TRN245200409-201909

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iTRN240200409-201909

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-04010iGRN305,310,TRN245202303

main36106-0K010iGRN305,310,TRN245201508-202303

sub36106-04010

main36106-35031iGRN245,250,TRN24#200409-201508

sub36106-35070

36227GEAR, TRANSFER OIL PUMP

main36227-0K010iGRN305,310,TRN245201508-202304

sub36227-0K011

main36227-0K011iGRN305,310,TRN245202305

main36227-35020iGRN245,250,TRN245200409-201508

sub36227-35021

9011906775

main90119-06775

91631B0618

main91631-B0618

6 parts on this diagram · 2 diagrams in section
