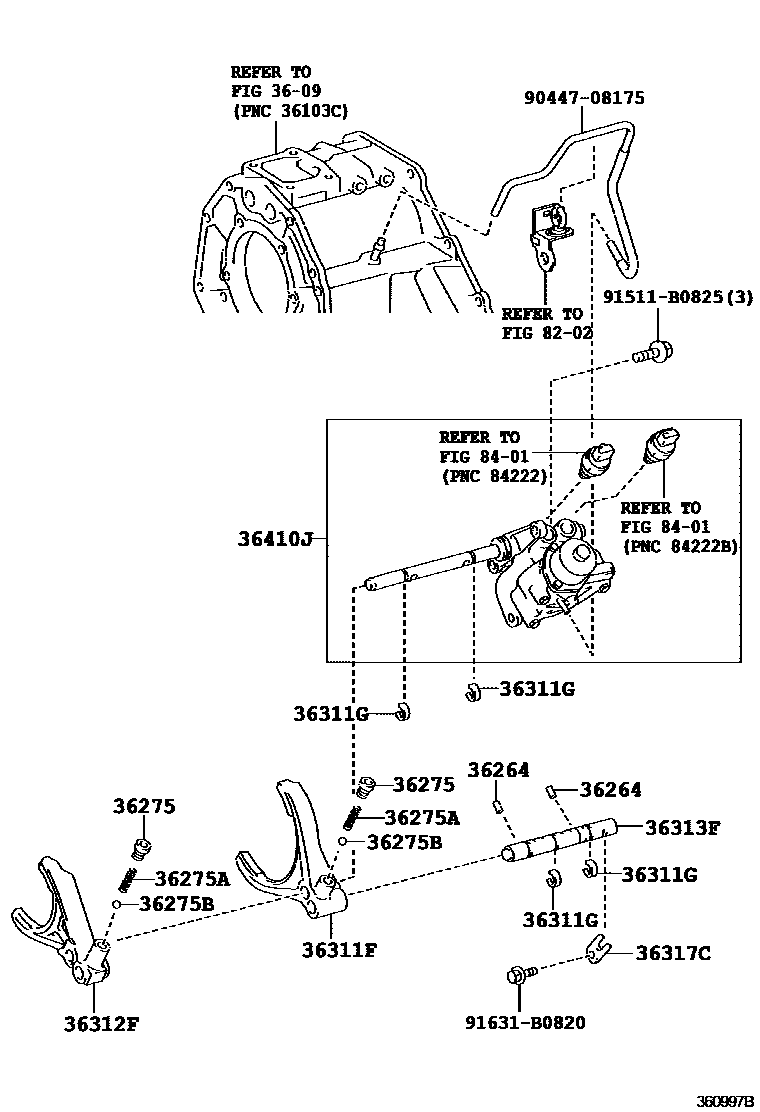

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

3609

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06007iGRN245,250,TRN24#200409-201909

L=8.6,OD=6

36275PLUG, SHIFT DETENT BALL SPRING

main33593-35030iGRN305,310,TRN245202302

main90341-12014iGRN245,250,TRN245200409-201508

main90341-T0014iGRN305,310,TRN245201508-201603

main90341-T0018iGRN305,310,TRN245201603-202302

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-18091iGRN245,250,TRN245200409-201508

L=20.8

main90501-T0042iGRN305,310,TRN245201508-201909

L=20.8

36275BBALL, SHIFT DETENT

main90360-10003iGRN245,250,TRN245200409-201508

OD=9.52,STEEL

main90360-T0008iGRN305,310,TRN245201508-201909

OD=9.53,STEEL

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-0K010iGRN305,310,TRN245201508-202302

sub36311-0K011

main36311-0K011iGRN305,310,TRN245202302

main36311-34010iTRN240200409-201508

sub36311-34011

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iGRN245,250,TRN24#200409-201508

main90520-T0237iGRN305,310,TRN245201508-201909

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-0K010iGRN305,310,TRN245201508-202302

sub36312-0K011

main36312-0K011iGRN305,310,TRN245202302

main36312-34010iGRN245,250,TRN24#200409-201508

sub36312-34011

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-0K030iGRN305,310,TRN245201508-201909

main36313-34011iGRN245,250,TRN24#200409-201508

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-0K020iGRN305,310,TRN245201508-201909

main36317-35041iGRN245,250,TRN245200409-201508

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-0K010iGRN305,310,TRN245201508-201909

main36410-34014iGRN245,250,TRN24#200409-200603

sub36410-34015

main36410-34015iGRN245,250,TRN245200603-201508

8202

8401

9044708175

main90447-08175

91511B0825

main91511-B0825

91631B0820

main91631-B0820

16 parts on this diagram · 2 diagrams in section
