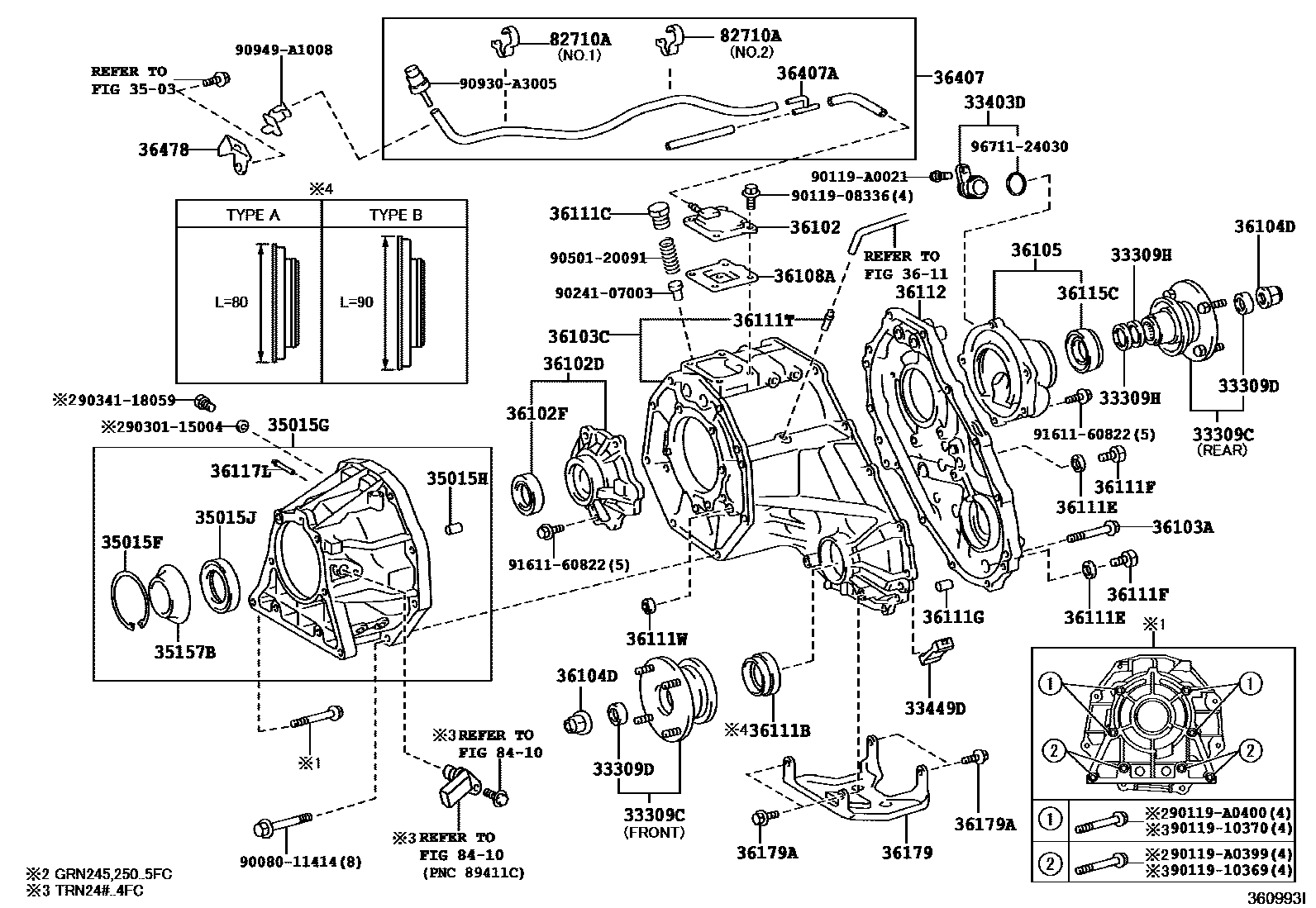

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1TRANSFER CASE 0005 1TRANSFER CASE 0006 1TRANSFER CASE 0007 1TRANSFER BREATHER HOSE

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-0K030iGRN305,310,TRN245201508-201909

main33309-35110iGRN245,250,TRN24#200409-200807

FRONT

sub33309-35113

sub90311-41017

main33309-35111iGRN245,250,TRN24#200807-201109

FRONT

sub33309-35112

sub90311-41017

main33309-35111iGRN245,250,TRN245201109-201411

FRONT,PNC36111B=T/PA

sub33309-35112

sub90311-41017

main33309-35112iGRN245,250,TRN245201411-201508

FRONT,PNC36111B=T/PB

sub33309-35113

main33309-35120iGRN245,250,TRN24#200409-201508

REAR

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iGRN245,250,TRN24#200409-201508

main90312-T0004iGRN305,310,TRN245201508-201909

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010iGRN245,250,TRN24#200409-201508

N=30,OD=38

main36275-71010iGRN305,310,TRN245201508-201909

T=0.8

33403DCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iGRN245,250..5FC200409-201508

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGRN245,250,TRN24#200409-201909

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iGRN245,250..5FC200409-201909

35015GADAPTER, TRANSFER, REAR

main35015-04010iGRN305,310,TRN245..6FC201508-201909

main35015-0C010iGRN245,250..5FC200409-201508

main35015-35080iTRN240..4FC201006-201508

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iGRN245,250..5FC200409-201909

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-43007iGRN245,250..5FC200409-201508

3503

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-04010iGRN305,310,TRN245..6FC201508-201909

main35157-60010iGRN245,250,TRN24#..4FC,5FC200409-201508

36102COVER SUB-ASSY, TRANSFER CASE

main36102-0K020iGRN305,310,TRN245201508-201909

main36102-35040iTRN240200409-201508

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iGRN245,250,TRN24#..4FC,5F,5FC200409-201508

main36102-35080iGRN245..6F200409-201508

36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)

main90311-43008iGRN245,250,TRN24#200409-201508

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iTRN240200409-201508

*8-1.25PX55-30

main90119-T0411iGRN305,310,TRN245201508-201909

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-35060iGRN245,250,TRN24#200409-201508

sub36101-71020

main36111-0K030iGRN305,310,TRN245201508-202307

sub36111-0K031

main36111-0K031iGRN305,310,TRN245202307

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iGRN245,250,TRN24#200409-201508

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iGRN245,250,TRN24#200409-201508

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36128-35060iGRN245,250,TRN24#200409-201508

3611

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41010iGRN245,250,TRN24#200409-200609

sub90311-41012

main90311-41012iGRN245,250,TRN24#200609-200807

main90311-41013iGRN245,250,TRN24#200807-201109

main90311-41013iTRN240201109-201411

TYPE A:REFER ILLUST.

main90311-41017iGRN245,250,TRN245201411-201508

TYPE B:REFER ILLUST.

main90311-T0082iGRN305,310,TRN245201508-201909

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iGRN245,250,TRN245200409-201508

main90341-T0013iGRN305,310,TRN245201508-201909

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iGRN245,250,TRN24#200409-201508

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iGRN245,250,TRN24#200409-201508

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iGRN245,250,TRN24#200409-201508

L=14,OD=10

main90250-T0026iGRN305,310,TRN245201508-201909

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGRN245,250,TRN24#200409-201508

sub90406-T0007

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90331-15003iGRN245,250,TRN24#200409-201508

36112CASE, TRANSFER, REAR

main36112-0K030iGRN305,310,TRN245201508-201909

main36112-34010iGRN245,250,TRN245200409-201508

36115HOUSING, TRANSFER EXTENSION

main36105-0K020iGRN305,310,TRN245201508-201909

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iGRN245,250,TRN24#200409-201508

sub90311-41020

main90311-T0072iGRN305,310,TRN245201508-201909

36117ADAPTER, TRANSFER

main33102-35060iGRN245..6F200409-200511

sub33102-35061

sub90119-08213

main33102-35061iGRN245..6F200511-201508

main36107-60080iTRN24#..5F200409-201711

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iGRN245,250,TRN24#200409-201909

sub90406-T0007

36179PROTECTOR, TRANSFER CASE LOWER

main36179-04020iGRN245,250,TRN24#200409-201909

36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)

main90080-11251iGRN245,250,TRN24#200409-201909

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-04010iTRN24#200409-201508

main36407-04020iGRN245,250200409-201508

main36407-04030iTRN245..4FC201006-201508

main36407-04050iTRN245..5F201508-201711

main36407-04060iTRN245201508-201909

main36407-04070iGRN305..6F201508-201909

main36407-04080iGRN305,310..6FC201508-201909

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-A0001iGRN245,250,TRN24#200409-201508

36478BRACKET, TRANSFER BREATHER

main36478-04010iGRN245,250,TRN24#200409-201508

main36478-04020iGRN245,250201109-201508

main36478-04050iGRN305,310,TRN245201508-201909

82710ACLAMP ASSY, WIRING HARNESS

main82711-10070iGRN245,250,TRN245201109-201508

NO.2

main87616-04020iGRN245,250..5FC200409-201109

NO.1 & NO.2

main87616-04020iGRN245,250..5FC200409-201109

NO.2

main87616-04030iGRN245,250..5FC200409-201508

NO.1

8410

9008011414

main90080-11414

9011908336

main90119-08336

9011910369

main90119-10369

9011910370

main90119-10370

90119A0021

main90119-A0021

90119A0399

main90119-A0399

90119A0400

main90119-A0400

9024107003

main90241-07003

9030115004

main90301-15004

9034118059

main90341-18059

9050120091

main90501-20091

90930A3005

main90930-A3005

90949A1008

main90949-A1008

9161160822

main91611-60822

9671124030

main96711-24030

54 parts on this diagram · 7 diagrams in section
