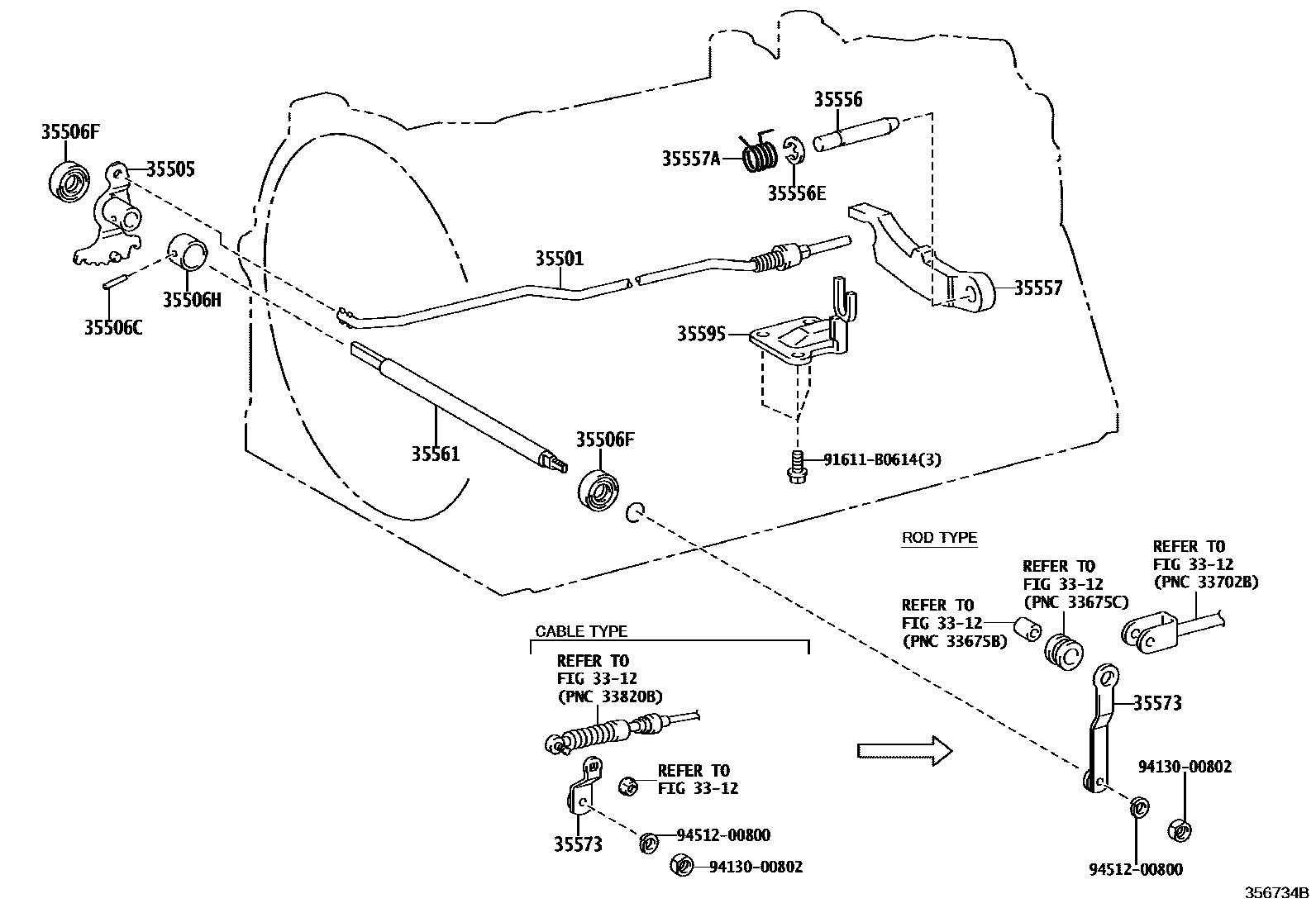

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A340F 0002 1A750E,A750F 0003 1AC60E,AC60F

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-04010iGRN245,250,265,270..5FC200409-200605

main35501-35020iGRN245,250,265,270..5FC200605-201508

main35501-60010iTRN22#,24#,265..4FC200409-201208

main35501-71010iTRN220,240..4FC201208-201508

main35501-71020iGRN305,310,325,330,TRN245,265..6FC201508-201909

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-35010iGRN245,250,265,270..5FC200409-201508

main35505-50010iTRN220..4FC200409-201408

main35505-60030iTRN220..4FC200409-200805

FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.)

sub35505-26020

main35505-60030iTRN225,24#,265..4FC200805-201508

sub35505-26020

main35505-71020iGRN305,310,325,330,TRN245,265..6FC201508-201909

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRN245,250,265,270,TRN22#..4FC,5FC200409-201909

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGRN245,250,265,270,TRN22#,24#,265..4FC,5FC200409-201508

main90311-A0032iGRN305,310,325,330,TRN245,265..6FC201508-201909

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGRN245,250,265,270,TRN22#..4FC,5FC200409-201909

35556SHAFT, PARKING LOCK PAWL

main35556-0C010iGRN245,250,265,270..5FC200409-200707

sub35556-60020

main35556-30020iTRN225,245,265..4FC200409-201508

main35556-60020iGRN245,250,265,270..5FC200708-201909

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGRN305,310,325,330,TRN245,265..6FC200409-201909

35557PAWL, PARKING LOCK

main35557-60020iTRN22#..4FC200409-201508

main35557-60040iGRN245,250,265,270..5FC200409-201508

main35557-71010iGRN305,310,325,330,TRN245,265..6FC201508-201909

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iTRN22#,24#,265..4FC200409-201508

main90949-03123iGRN305,310,325,330,TRN245,265..6FC201508-201909

main90949-03130iGRN245,250,265,270..5FC200912-201508

main90949-A3003iGRN245,250,265,270..5FC200409-200912

sub90949-03130

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iTRN22#..4FC200409-201508

main35561-60030iGRN305,310,325,330,TRN245,265..6FC200409-201909

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-35070iTRN220..4FC200409-201408

ROD TYPE

main35573-35090iGRN305,310,325,330,TRN245,265..6FC201508-201909

main35573-60020iTRN220..4FC200409-200805

FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.),CABLE TYPE

main35573-60020iGRN245,250,265,270..5FC200409-201508

CABLE TYPE

35595BRACKET, PARKING LOCK PAWL

main35595-60010iTRN22#..4FC200409-201508

main35595-60030iGRN245,250,265,270..5FC200409-201508

main35595-71010iGRN305,310,325,330,TRN245,265..6FC201508-201909

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 3 diagrams in section
