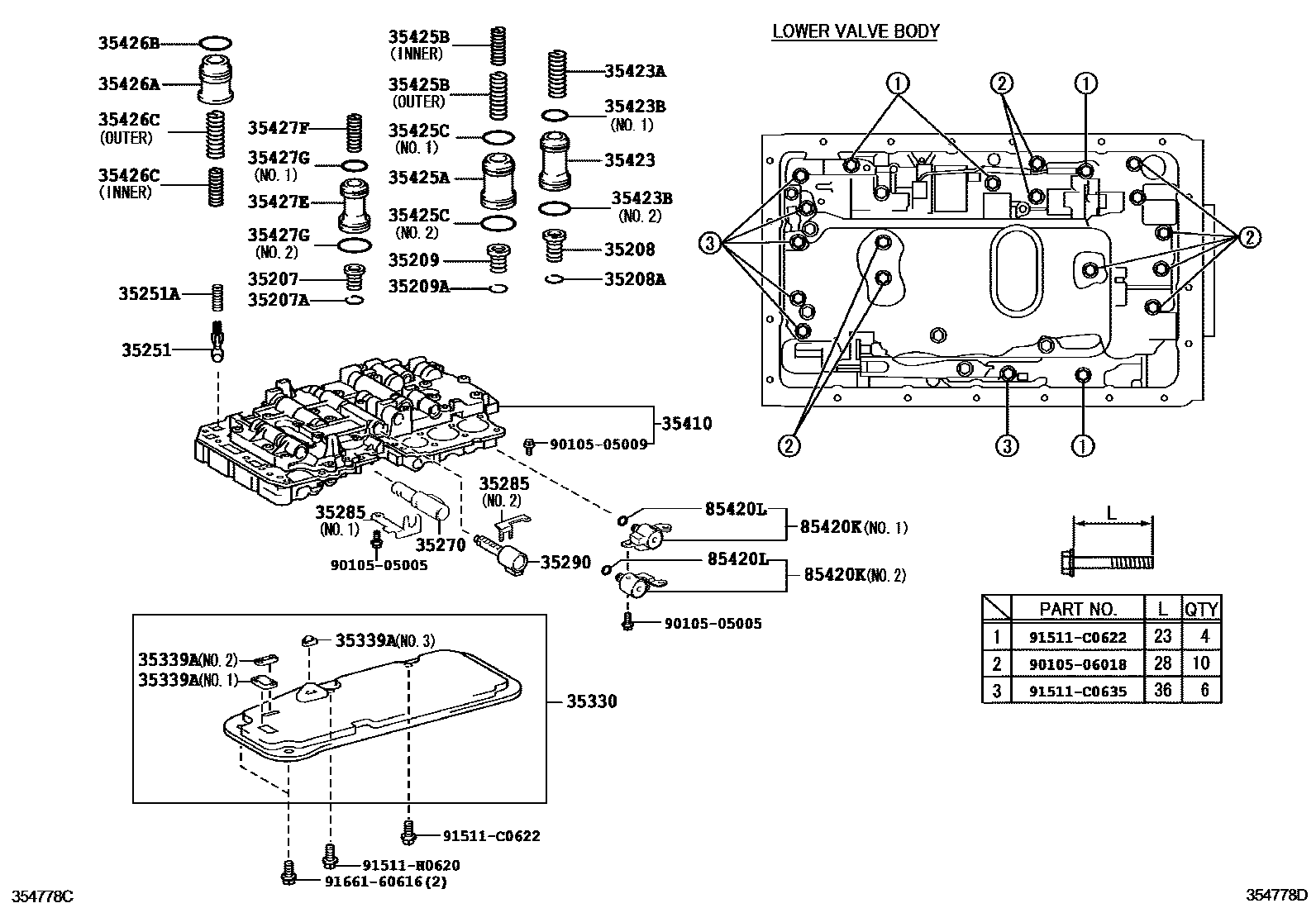

VALVE BODY & OIL STRAINER (ATM)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35270SOLENOID ASSY, SHIFT CONTROL
35285PLATE, SOLENOID LOCK
NO.1
NO.2
(J)
35330STRAINER ASSY, VALVE BODY OIL
35339AGASKET, OIL STRAINER, NO.1
NO.1
NO.2
NO.3
35410BODY ASSY, TRANSMISSION VALVE
sub35410-04013
sub35410-71103
FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.)
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
NO.1
NO.2
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
NO.1
NO.1
NO.2
NO.2
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
INNER
OUTER
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
NO.1
NO.2
85420KSOLENOID ASSY, TRANSMISSION
NO.1
NO.2
85420LRING, O(FOR TRANSMISSION SOLENOID)
9010505005
main90105-05005
9010505009
main90105-05009
9010506018
main90105-06018
91511C0622
main91511-C0622
91511C0635
main91511-C0635
91511H0620
main91511-H0620
9166160616
main91661-60616
35 parts on this diagram · 6 diagrams in section
