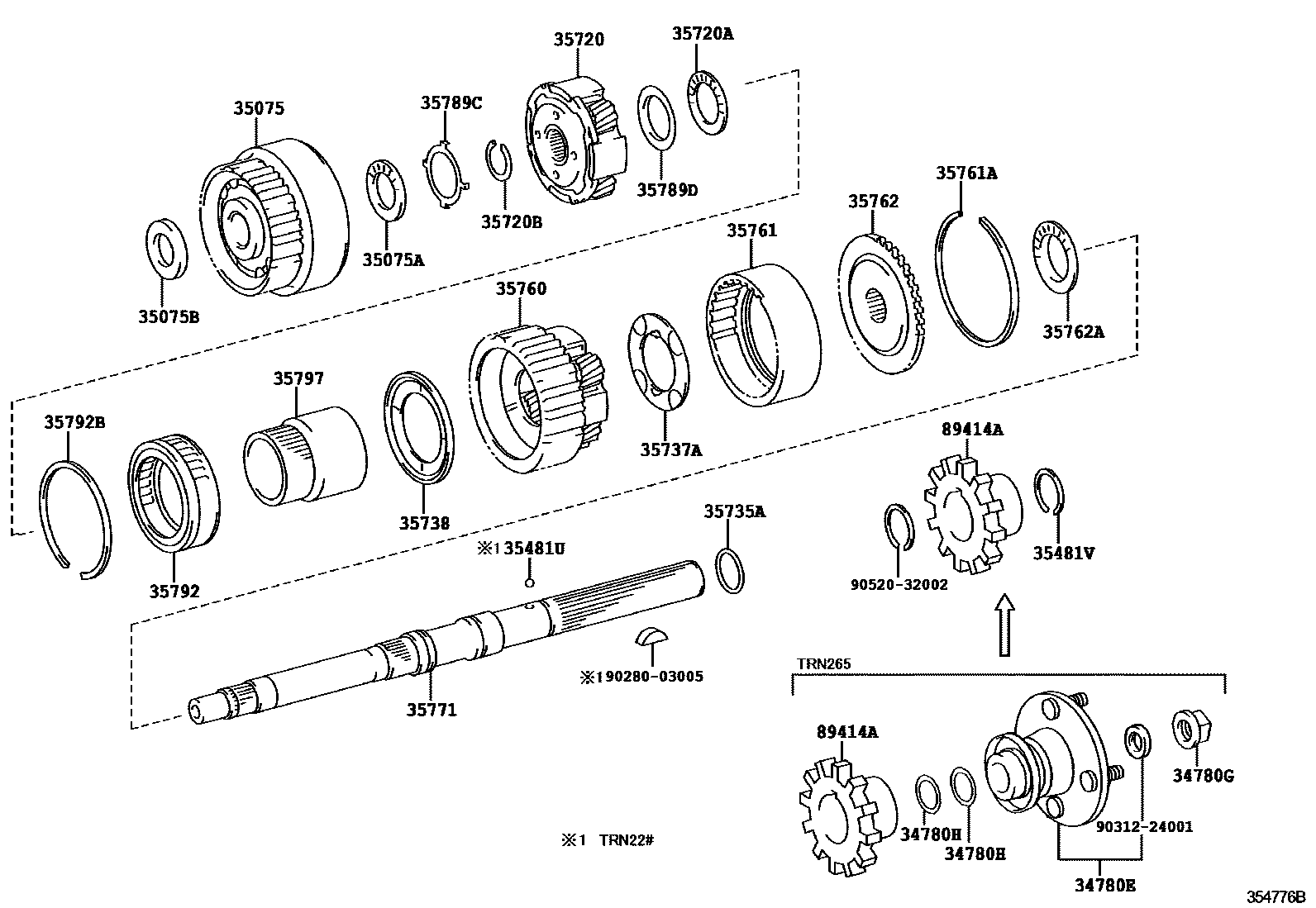

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A340E 0002 1A340F 0003 1A750E,A750F 0004 1AC60E 0005 1AC60F

34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)

main34780-35050iTRN265201006-201508

34780GNUT (FOR ATM FRANGE YOKE)

main90179-22018iTRN265201006-201508

34780HWASHER, PLATE (FOR ATM FLANGE YOKE)

main90201-30005iTRN265201006-201508

35075GEAR SUB-ASSY, FRONT PLANETARY RING

main35075-50010iTRN22#..4FC200409-201508

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

main90374-35004iTRN22#..4FC200409-201508

35075BRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT)

main35789-30120iTRN22#..4FC200409-201508

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iTRN22#..4FC200409-201508

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iTRN220..4FC200409-201508

T=1.50,OD=33.8

main90520-29004iTRN240..4FC201006-201508

T=1.50,OD=34.8

35720GEAR ASSY, FRONT PLANETARY

main35720-30080iTRN225,245,265..4FC200409-201508

main35720-60070iGRN245,250,265,270..5FC200409-201508

main35720-71010iGRN305,310,325,330,TRN245,265..6FC201508-201909

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-35001iTRN22#..4FC200409-201508

main90374-37009iGRN305,310,325,330,TRN245,265..6FC201508-201909

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90520-24026iTRN22#..4FC200409-201508

main90520-24029iTRN265201006-201508

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-30020iTRN225,245,265..4FC200409-201508

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30030iTRN220,240..4FC200409-201508

main35737-60030iGRN245,250,265,270..5FC200409-201508

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-60030iGRN245,250,265,270..5FC200409-201508

main35739-30030iTRN22#,24#,265..4FC200409-201508

35760GEAR ASSY, REAR PLANETARY

main35705-30010iTRN220,240..4FC200409-201508

main35760-04010iGRN265,270..5FC200409-200605

sub35760-04011

main35760-04011iGRN265,270..5FC200605-200809

sub35760-0C080

main35760-04020iGRN325,330,TRN265201508-201909

main35760-04030iGRN305,310,TRN245..6FC201508-201909

main35760-0C010iGRN245,250..5FC200409-200605

sub35760-0C011

main35760-0C011iGRN245,250..5FC200605-200809

sub35760-0C012

main35760-0C012iGRN245,250..5FC200809-201508

main35760-0C080iGRN265,270..5FC200809-201508

35761GEAR, REAR PLANETARY RING

main35761-04010iGRN305,310,325,330,TRN245,265..6FC201508-201710

sub35761-04020

main35761-04020iGRN305,310,325,330,TRN245,265..6FC201711-201909

main35761-0C010iGRN245,250,265,270..5FC200409-201508

main35761-30020iTRN22#..4FC200409-201508

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90520-99073iGRN245,250,265,270..5FC200409-201307

main90520-A0029iGRN245,250,265,270..5FC201307-201508

main90521-99024iTRN22#,24#,265..4FC200409-201508

35762FLANGE, REAR PLANETARY RING GEAR

main35762-30040iTRN225,245,265..4FC200409-201508

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-38003iTRN22#..4FC200409-201508

main90374-A0010iGRN265,270..5FC200409-201508

35771SHAFT, OUTPUT

main35073-35060iTRN245..4FC201006-201508

main35771-30040iTRN22#..4FC200409-200911

main35771-30130iTRN220..4FC200911-201508

main35771-35040iTRN265201006-201508

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-30080iTRN220,240..4FC200409-201508

main35789-71030iGRN305,310,325,330,TRN245,265..6FC201508-201909

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-30100iTRN22#..4FC200409-201508

main35789-71050iGRN305,310,325,330,TRN245,265..6FC201508-201909

35792CLUTCH, 1 WAY, NO.2

main35792-14020iTRN22#..4FC200409-201508

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-87001iTRN220,240..4FC200409-201508

35797RACE, 1 WAY CLUTCH INNER

main35797-50010iTRN22#,24#,265..4FC200409-201508

89414AROTOR, SENSOR

main89414-30040iTRN225..4FC200409-201508

main89414-30060iTRN265201006-201508

main89414-60020iTRN24#..4FC201006-201508

9028003005

main90280-03005

9031224001

main90312-24001

9052032002

main90520-32002

29 parts on this diagram · 5 diagrams in section
