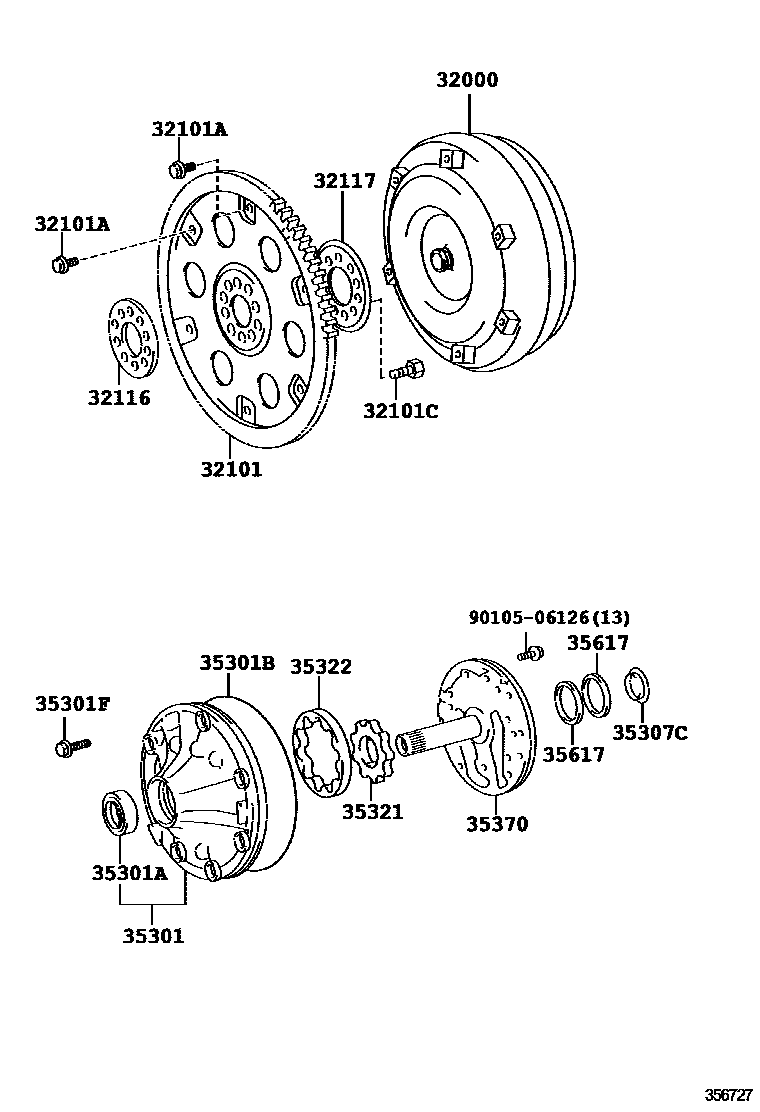

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.8-9,BLACK
*9-1.25PX12.8-9,GREEN OR BLACK
*9-1.25PX12.8-8.8,YELLOW OR SILVER
*9-1.25PX12.8-8.8,SILVER
*9-1.25PX12.8-8.8,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
*10-1.25PX30-17.5
*10-1.25PX30-17.5,(J)
*10-1.25PX22-15
*10-1.25PX22-15
*10-1.25PX30-17.5
*10-1.25PX30-17.5,(L)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
(L)
TOWING PACKAGE-WITHOUT,(L)
(J)
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
NO.2
NO.1
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-35
*8-1.25PX40-30
*8-1.25PX40-30
*8-1.25PX35-32.5
*8-1.25PX40-30
35321GEAR, FRONT OIL PUMP DRIVE
T=10.76,MARK 0
T=10.76,MARK 1
T=10.76,MARK 2
T=10.76,MARK 3
T=10.76,MARK 4
T=10.76,MARK 5
T=10.76,MARK 6
T=11.690-11.699
T=11.700-11.709
T=11.710-11.720
T=11.721-11.730
T=11.731-11.740
T=9.977-9.983
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.76,MARK 0
T=10.76,MARK 1
T=10.76,MARK 2
T=10.76,MARK 3
T=10.76,MARK 4
T=10.76,MARK 5
T=10.76,MARK 6
T=11.690-11.699
T=11.700-11.709
T=11.710-11.720
T=11.721-11.730
T=11.731-11.740
T=9.977-9.983
35370SHAFT ASSY, STATOR
(L)
TOWING PACKAGE-WITHOUT,(L)
(J)
35617RING, CLUTCH DRUM OIL SEAL
9010506126
main90105-06126
16 parts on this diagram · 3 diagrams in section
